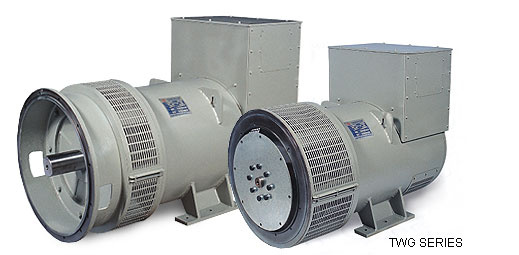

AC Synchronous generator brushless type.
Standard IEC34-1, pole type, whole salient, excitation system self-exciting, leads 12,
bearing:single/double, duty s1,
ambient temp:-15~+40° C,
winding pitch 2/3, pf=0.8, stable AVR+/-1%, instant AVR -15%~+20%, thd≤ 3%, thf≤ 2%, TIF≤ 50, 150% overspeed (2250rpm) lasting 2min, voltage 110~660V, 50 or 60Hz, 3-phase, 4-pole(1500rpm or 1800rpm),
insulation class H, protection class IP21/IP23,
bearing SKF, w/AVR control, power range from 50kw to 900kw.
| Duty/Ambient T° | Continuous/40° c | Stand by/40° c | Stand by/27° c |
| INS Class/ T° Rise | H/1250K | H/1500K | H/1630K |
| Phase | 3 Phase | 3 Phase | 3 Phase |
| Voltage | Y | 380V | 400V | 415V | 380V | 400V | 415V | 380V | 400V | 415V |
| TWG2.1C | KVA | 43.8 | 46.3 | 48.8 |
| KW | 35 | 37 | 39 |
| TWG2.1D | KVA | 50 | 56 | 59 |
| KW | 40 | 45 | 47 |
| TWG2.1E | KVA | 62.5 | 67.5 | 71 |
| KW | 50 | 54 | 57 |
| TWG2.1F | KVA | 80 | 85 | 91.5 |
| KW | 64 | 69 | 73 |
| TWG2.1G | KVA | 94 | 100 | 106.5 |
| KW | 75 | 80 | 85 |
| TWG3.1C | KVA | 94 | 100 | 106.5 |
| KW | 75 | 80 | 85 |
| TWG3.1CB | KVA | 100 | 106.3 | 112.5 |
| KW | 80 | 85 | 90 |
| TWG3.1D | KVA | 112.5 | 117.5 | 125 |
| KW | 80 | 85 | 100 |
| TWG3.1E | KVA | 125 | 130 | 137.5 |
| KW | 100 | 104 | 110 |
| TWG3.1F | KVA | 150 | 160 | 170 |
| KW | 120 | 128 | 136 |
| TWG3.1G | KVA | 187.5 | 200 | 212.5 |
| KW | 150 | 160 | 170 |
| TWG3.1GB | KVA | 200 | 213.8 | 225 |
| KW | 160 | 171 | 180 |
| TWG4.1CB | KVA | 225 | 237.5 | 250 |
| KW | 180 | 190 | 200 |
| TWG4.1C | KVA | 250 | 260 | 275 |
| KW | 200 | 208 | 220 |
| TWG4.1CC | KVA | 275 | 290 | 300 |
| KW | 220 | 232 | 240 |
| TWG4.1D | KVA | 312.5 | 325 | 335 |
| KW | 250 | 260 | 268 |
| TWG4.1EB | KVA | 350 | 368.8 | 385 |
| KW | 250 | 260 | 268 |
| TWG4.1E | KVA | 375 | 387 | 400 |
| KW | 300 | 310 | 320 |
| TWG4.1FB | KVA | 400 | 420 | 437.5 |
| KW | 320 | 336 | 350 |
| TWG4.1F | KVA | 443.75 | 465 | 500 |
| KW | 355 | 372 | 400 |
| TWG4.1G | KVA | 500 | 525 | 562.5 |
| KW | 400 | 420 | 450 |
| TWG5D | KVA | 562.5 | 593.8 | 625 |
| KW | 500 | 530 | 560 |
| TWG5DB | KVA | 700 | 737.5 | 762.5 |
| KW | 560 | 590 | 610 |
| TWGEB | KVA | 750 | 775 | 800 |
| KW | 600 | 620 | 640 |
| TWG5E | KVA | 787.5 | 812.5 | 850 |
| KW | 630 | 650 | 680 |
| TWG5F | KVA | 900 | 937.5 | 987.5 |
| KW | 720 | 750 | 790 |
| TWG5G | KVA | 1000 | 1050 | 1100 |
| KW | 800 | 840 | 880 |
