Prodcut Name: The structure of 10kw wind generator

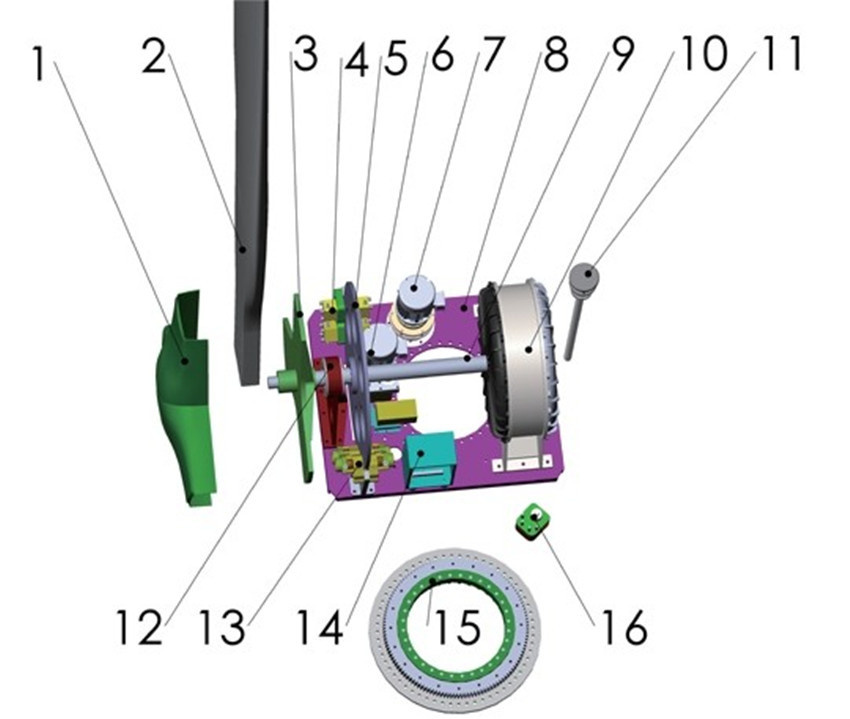

Structure view instruction
| 1. Nose cone | 2. Blade |
| 3. Hub | 4. Active brake |
| 5. Brake disc | 6. Hydraulic system |
| 7. Yaw system | 8. Base plate |
| 9. Generator axis | 10. Generator head |
| 11. Ultrasonic anemometer | 12. Self-aligning bearing block |
| 13. Fail-safe brake | 14. Controller system |
| 15. Slewing bearing | 16. Damping brake |
Features:
1. FD series products adopt aluminium alloy housing with good heat dispersion and easy to maintain.
2. Main controller components use international famous brand, and the product quality is reliable.
3. Adopt touch human-computer interface and GPRS remote controlling, and supply convenience for inspecting running situation of wind turbine.
4. Aerovane can survey more accurately data about wind speed and direction.
5. Tripling protection system ensures the running safety of equipment.
Technical parameters:
| Model No. | FD-10KW |
| Rated power(W) | 10000 |
| Rated voltage(V) | 220 |
| Rated current(A) | 45 |
| Start-up wind speed(M/S) | 2.5 |
| Rated wind speed(M/S) | 12 |
| Cut-out wind speed(M/S) | 18 |
| Security wind speed(M/S) | 45 |
| Rated rotational speed(RPM) | 180 |
| Rotor diameter(M) | 8 |
| Blade number(PCS) | 3 |
| Blade material | GFRP |
| Generator mode | Permanent magnet synchronous |
| Protecting mode | Yaw, brake and unload |
| Controlling mode | PLC intellectual control |
Package:
Plywood case and naked
Delivery time:
Within 30 days after signing the contract or proforma invoice and receiving the downpayment.
Our company set up more than ten years. We have abundant experience to produce and export wind generator. The products have exported to a lot of countries in the world. They get our clients' confirmation according to their reasonable prices and good quality.
We are interested in establishing business relationship with you.
