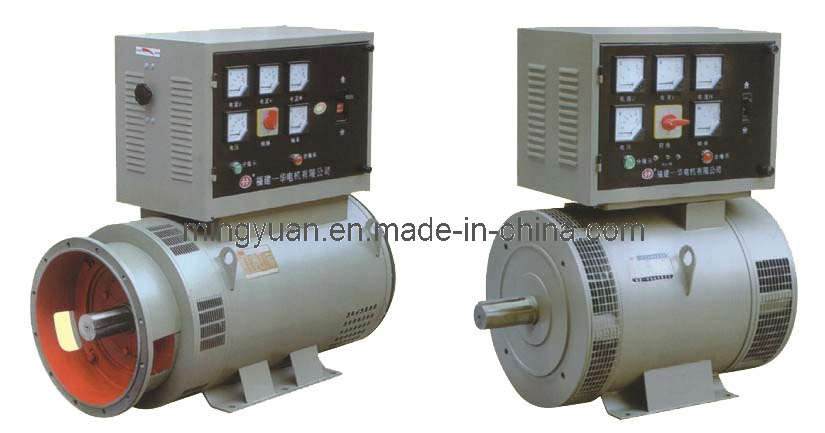

TFX series three-phase compound excitation synchronous generators by introducing and developing on foreign advanced technology of well-known generators, are our newly developed products. The generators are self-excited by compound excitation, have high reliability, easy maintenance. Excellent dynamic characteristics when load or unload suddenly. The characteristic of generators see as the followings:
1. The generators are made as per standard JB/T3320.2-2000. And in conformity to IEC34-1.
2. The construction of the generators are salient-pole rotating field, Insulation is class B or F, drip-proof type is IP22.
3. Tight in construction for steel frame, beautiful appearance.
4. Unique construction for ventilating to windings.
5. High quality of AVRs have excellent characteristics.
6. Excellent dynamic characteristics when load or unload suddenly; Strong starting system, even the motors only with its 70% capacity volume can be directly started and the switch will not trip.
7. Generally the generators are two-bearing construction, also can produce for single-bearing construction.
8. The units can be connected for single-phase, but rated power only is 1/3 of three-phase units.
Model |
Rated Power (KW/KVA) |
Rated Volt (V) |
Rated Curr. (A) |
Rated Speed (r/min) |
Frequency (Hz) |
Max. directly-starting Motor (kW) |
TFX-10 |
10/12.5 |
400 |
18.1 |
1500 |
50 |
7 |
TFX-12 |
4/5 |
400 |
21.6 |
1500 |
50 |
8.4 |
TFX-16 |
16/20 |
400 |
28.8 |
1500 |
50 |
11.2 |
TFX-20 |
20/25 |
400 |
36.1 |
1500 |
50 |
14 |
TFX-24 |
24/30 |
400 |
43.2 |
1500 |
50 |
16.8 |
TFX-30 |
30/37.5 |
400 |
54.1 |
1500 |
50 |
24 |
TFX-40 |
40/50 |
400 |
72.2 |
1500 |
50 |
28 |
TFX-50 |
50/62.5 |
400 |
90.2 |
1500 |
50 |
30 |
TFX-64 |
64/80 |
400 |
115.6 |
1500 |
50 |
30 |
TFX-75 |
75/93.75 |
400 |
135.5 |
1500 |
50 |
30 |
TFX-90 |
90/112.5 |
400 |
162.6 |
1500 |
50 |
55 |
TFX-120 |
120/150 |
400 |
216.8 |
1500 |
50 |
55 |
TFX-150 |
150/187.5 |
400 |
271 |
1500 |
50 |
75 |
We guaranteed products at a reasonable price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon. For more information, please contact us directly.
