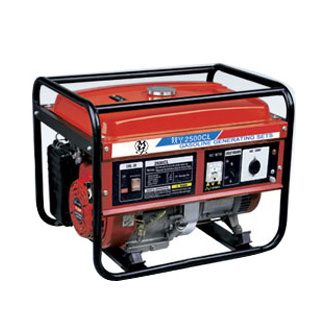

MY1300A~6500AE Series Gasoline Generator Sets.
Adopt advanced technology of OHV design.
It reduce the fuel consumption, stronger the durability and longer the life largely.
Adopt brush, AVR and carbon brush voltage adjustor device. They make the voltage stay in more stable condition, make the alternator more steady-going and reliable.
DC output and double voltage output will be offered as request.
They possess the feature of starting fast, running steadily and reliable, shocking light, can save the money and time of maintain and mending for you.
|
MODEL |
MY1100F |
MY1300A |
MY1500A MY1500S |
MY1800A MY1800S |
MY2500A MY2500S |
MY3500A MY3500S |
|
Generator |
Frequency(HZ) |
50 |
|
Voltage(V) |
220 |
|
Max. Power(kW) |
0.68 |
1.1 |
1.5 |
1.8 |
2.3 |
2.7 |
|
Rated Power(kW) |
0.6 |
1 |
1.2 |
1.5 |
2 |
2.5 |
|
Rated Current(A) |
4.1 |
4 |
5.4 |
6.8 |
9.1 |
11.4 |
|
Engine |
Model |
MY101 |
MY154 |
MY160 |
MY160 |
MY200 |
MY200 |
|
Max. Output (HP) |
2 |
2.8 |
5.5 |
5.5 |
6.5 |
6.5 |
|
Displacement(cc) |
98(cm)3 |
87 |
163 |
163 |
196 |
196 |
|
Noise Level(at 7m) |
54-59 |
60dB |
64dB |
64dB |
65dB |
65dB |
|
Starting System |
Recoil |
|
Type |
Forced air-cooled, 4 stroke OHV |
|
Ignition System |
Non-contact transistorized ignition(T. C. I) |
|
Fuel Tank(L) |
4.2 |
5.5 |
15(4) |
|
Oil Capacity |
|
0.3 |
0.6 |
|
Package |
Dimension (LXWXH)mm |
465X290X425 |
455X370X380 |
610X440X460 |
|
G. W(kg) |
24 |
28 |
41 |
45 |
46 |
51.6 |
|
20' FCL(PCS) |
650 |
470 |
260 |
|
|
|
|
|
|
|
|
|
|
MODEL |
MY4500A |
MY5500A |
MY6500A |
MY4500AE |
MY5500AE |
MY6500AE |
|
Generator |
Frequency(HZ) |
50 |
|
Voltage(V) |
220 |
|
Max. Power(kW) |
3.8 |
4.4 |
5.5 |
3.8 |
4.4 |
5.5 |
|
Rated Power(kW) |
3.5 |
4 |
5 |
3.5 |
4 |
5 |
|
Rated Current(A) |
15.9 |
18.2 |
22.7 |
15.9 |
18.2 |
22.7 |
|
Engine |
Model |
MY270 |
MY340 |
MY390 |
MY270E |
MY340E |
MY390E |
|
Max. Output (HP) |
9 |
11 |
13 |
9 |
11 |
13 |
|
Displacement(cc) |
270 |
337 |
389 |
270 |
337 |
389 |
|
Noise Level(at 7m) |
70dB |
71dB |
74dB |
70dB |
71dB |
74dB |
|
Starting System |
Recoil |
Recoil/ Electric |
|
Type |
Forced air-cooled, 4 stroke OHV |
|
Ignition System |
Non-contact transistorized ignition(T. C. I) |
|
Fuel Tank(L) |
25 |
|
Oil Capacity |
1.1 |
|
Package |
Dimension (LXWXH) |
695X530X570 |
|
G. W(kg) |
73 |
75 |
78 |
81 |
83 |
87.8 |
|
20' FCL(PCS) |
135 |
We guaranteed products at a reasonable price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon. For more information, please contact us directly.
