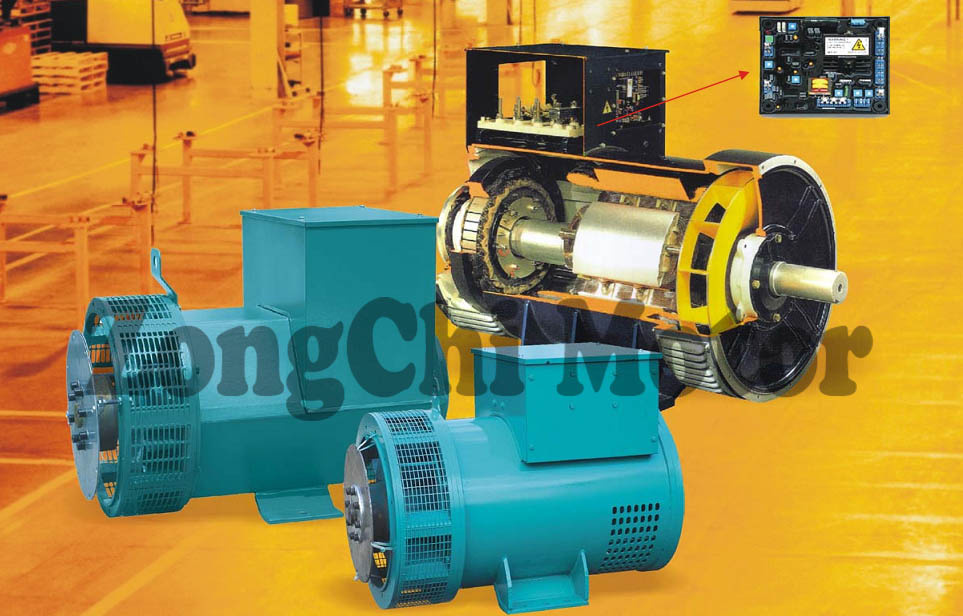

TFW series brushless Alternators(Stamford, Marathon, Leroysomer, etc)
Brushless Alternator
Features:
1)Any permanent magnetic generators, providing invariable excitation on all occasions.
2)Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline current.
3)Balanced rotor with single or two sealed ball bearings
4)Convenient installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
5)Wide range of Flange adaptor and single bearing coupling disc
Meet leading standards
MECHANIC FEATURES
Frame
All industrial standard is IP21, also IP23 is an option, but rates power will decease 5%
Marine standard alternator is IP23, Air filter is an option, but rated power of the alternator will decrease 5% while it is installed.
Axis and Key
All of alternator rotors should pass balance test, whose vibrations are lower than the minimum of BS6861 P. 1, G 2.5 two bearing alternator has a half-key testing balance
Terminal and terminal box
The three-field alternator had 12 leads brought out to the terminals in the terminal box. The terminals are put on the non drive end. The box is equipped with removable panels.
Voltage regulation
Voltage regulation refers to the change of voltage from no-load to full-load with power factor ranging from 0.8 to 1 and 3%s fluctuation of the speed of engine. Voltage is adjusted via potentiometer of AVR
ELECTRIC FEATURES
INSULATION
Insulation Class H
All regulatory components are made up with special materials and are immersed in lacquer by peculiar tech. Vanish and colophony materials are develop to strengthen the processing and machinery intensity of windings and revolving parts for protecting the alternator work under corrosive environment.
Winding and electric features:
2/3 pith winding design can effectively eliminate the third harmonic wave(3th. 9th, 15th) of the voltage, which is the best design of UPS for nonlinear load. Connected with the network in parallel, the structure can restrain excessive currents in the midline
A continuous damp windings abates surges. The poles and gears of the windings are carefully chosen, this and the 2/3 pitch help to check the wave distortion and output voltage.
Phone interference
THF(defined by 40th part of BS4999) <2%. TIF(defined by ASAC50.12)<50
Radio interference
Brushless apparatus and quality AVR ensure little radio interference in transmission. RFI noise filter is also available.
OPTION
1. Adapters and drive disks
2. Single phase
3. Remote voltage adjust
4. IP23 enclosure
5. Space heaters
6. Thermistors
Warranty policy
Guarantee for one year or 1200 hours whichever reach first from ex-factory date. During the guarantee period, DYUAN will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, DYUAN provides cost spare parts maintenance of alternator.
Manufacturing Standards
GB755, Third part of BS 5000, VDE 0530, NEMA MG1-22, IEC34, CSA C22.2-100 and ASB59
Language Option
| Model | Rated Power(KW/KVA) | Rated Volt. ( V ) | Rated Curr. (A) | Rated P.F. (Cos Φ ) | Rated Speed (r/min) | Steady Volt. |
| Regulation ( %) |
| TFW-H 10 | 10/12.5 | 400 | 18.1 | 0.8 | 1500 | ± 1 |
| TFW-H 12 | 12/15 | 400 | 21.6 | 0.8 | 1500 | ± 1 |
| TFW-H 16 | 16/20 | 400 | 28.8 | 0.8 | 1500 | ± 1 |
| TFW-H 20 | 20/25 | 400 | 36.1 | 0.8 | 1500 | ± 1 |
| TFW-H 24 | 24/30 | 400 | 43.2 | 0.8 | 1500 | ± 1 |
| TFW-H 30 | 30/37.5 | 400 | 54.1 | 0.8 | 1500 | ± 1 |
| TFW-H 40 | 40/50 | 400 | 72.2 | 0.8 | 1500 | ± 1 |
| TFW-H 50 | 50/62.5 | 400 | 90.2 | 0.8 | 1500 | ± 1 |
| TFW-H 64 | 64/80 | 400 | 115.6 | 0.8 | 1500 | ± 1 |
| TFW-H 75 | 75/93.75 | 400 | 135.5 | 0.8 | 1500 | ± 1 |
| TFW-H 90 | 90/112.5 | 400 | 162.6 | 0.8 | 1500 | ± 1 |
| TFW-H 100 | 100/125 | 400 | 180.4 | 0.8 | 1500 | ± 1 |
| TFW-H 120 | 120/150 | 400 | 216.8 | 0.8 | 1500 | ± 1 |
| TFW-H 150 | 150/187.5 | 400 | 271 | 0.8 | 1500 | ± 1 |
| TFW-H 160 | 160/200 | 400 | 288.6 | 0.8 | 1500 | ± 1 |
| TFW-H 180 | 180/225 | 400 | 324.7 | 0.8 | 1500 | ± 1 |
| TFW-H 200 | 200/250 | 400 | 360.8 | 0.8 | 1500 | ± 1 |
| TFW-H 220 | 220/275 | 400 | 396.8 | 0.8 | 1500 | ± 1 |
| TFW-H 250 | 250/312.5 | 400 | 451 | 0.8 | 1500 | ± 1 |
| TFW-H 280 | 280/350 | 400 | 505 | 0.8 | 1500 | ± 1 |
| TFW-H 300 | 300/375 | 400 | 541 | 0.8 | 1500 | ± 1 |
| TFW-H 320 | 320/400 | 400 | 577 | 0.8 | 1500 | ± 1 |
| TFW-H 350 | 350/437.5 | 400 | 631.5 | 0.8 | 1500 | ± 1 |
| TFW-H 400 | 400/500 | 400 | 721.7 | 0.8 | 1500 | ± 1 |
