Generator Manufacturers and Factories

Home Generator Products Syngas Producer Coal Gas Gasifier

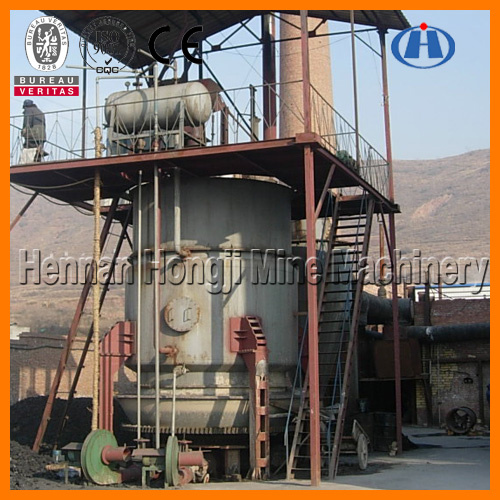

Syngas Producer Coal Gas Gasifier

Syngas Producer Coal Gas Gasifier
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1Set
Pay Type: L/C,T/T,D/P
Professional Syngas producer Coal Gas Gasifier


1. Company Introduction

We Henan Hongji Mining Machinery Co., Ltd. Is a manufacturer and exporter of mining machinery in China.
Our main products are crusher, grinding mill, dryer, coal gasifier, briquetting machines and so on.
All of them are ISO9001: 2008 confirmed. They are excellent quality and enjoy good reputation both in China and overseas.
Welcome to visit and purchase from us!



2. The main features of coal gas generator

(1)main equipmenthave small investment
(2)quick start.
(3)safe and convenient
(4)save 20% fuel than the direct oil-burning. Use the hot gas can save over 60% of energy economy compared to direct fuel thermal processing furnace
(5)has a significant effect of dust collection, protect environment, is the essential equipment of hot-processing systems
(6)High Efficiency Coal Gasifier and coal gas generator furnace coal gasifier.


3. Working Principle of the Coal Gas Generator

Use the scientific technology structure to analyze water molecules, produced hydrogen (H2)to combuste, oxygen (02) for helping combustion, so that the temperature increased rapidly in combustion studio. This cycle can make fuel burn fully in the oven, and produce great heat value. Because of the full combustionand and swirl cyclone combustion technology in the combustion chamber, the coal gas genetor can achieve high temperatures, avoid the emission of harmful gases, such as C0, C02, N0, S02, smoke removal, dust removal, desulfurization, achieve the requirements of environmental protection department.



Model Unit QM0.8 QM1.0 QM1.2 QM1.5 QM1.6 QM1.8 QM2.0 QM2.4 QM2.6 QM3.0 QM3.2
Chamber diameter Mm 800 1000 1200 1500 1600 1800 2000 2400 2600 3000 3200
Hearth active surface M 2 0.5 0.785 1.13 1.77 2.01 2.54 3.14 4.52 5.31 7.07 8.04
Applicable fuel   Weak coherent gas carbon, anthracite, burnt carbon
Fuel granularity mm 25-80
Fuel consumption Kg/h 40-100 70-140 120-190 160-350 350-460 500-600 500-720 700-1040 850-1200 1700-2000 1800-2200
Gasifying agent   Air, steam
Gas yield Nm3/h 140-350 245-490 420-670 560-1200 1200-1600 1500-2100 1750-2500 2500-3600 3000-4300 6000-7000 6500-7500
Coal gas calorific value Kj/Nm 3 5020-5670 5050-6000
Water jacket heating area M 2 4.02 5.02 6.78 10.37 11.06 12.44 17.58 21.87 23.69 30.16 32
Gas outlet temperature 'C 400-500 (related to the coal)
Gas outlet pressure Pa <1000 980-1470 1470-1960
Gas outlet diameter Mm 219 325 325 426 426 529 630 720 820 1020 1100
Air pressure Pa <3000 <4000
Saturated air temperature 'C 50-60 50-65
Ashpan rotational speed r/h 0.177-1.77
Power KW <6 <6 <6 <7 <8 <10 <14 <20 <20 <27 <30
Prod Model: QM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gas Compound: Co, CO2, N2, H2, O2, CH4
Usage: Syngas for Burning, etc.
I. About us:
Located in Zhengzhou, China, Henan Hongji Mine Machinery Co., Ltd. is a joint-stock enterprise, specializing in R&D, manufacture, and sales of large and medium-sized Mining Machinery (Crushing machinery, seperation/ore benefication machinery, screen and so on), NPK Fertilizer Equipment, and Building Material plants like Quick Lime Plant and Cement Plant. Our customers' satisfaction is our ultimate goal, and in order to achieve this, we strive to consistently provide high-quality products at the lowest prices.

II. Our products:
As the largest mine machinery manufacturing enterprise in Zhengzhou, we provide environment-friendly Mining machines, including flotation machines, classifying equipment, magnetic plants, ball mills, spiral classifiers, vibrating screens, crusher, sand making machines, and dryers, NPK Fertilizer Machines including Mixer, Rotary Dryer, Pelletizer, Coating Machine, Drum Screen, Bagging machineetc. These products have received ISO9001: 2000 certification and SGS certification, and are popular in Vietnam, Myanmar, Bengal, Laos, Philippines, Peru, Iran, India, etc.
We also provide preferential wearing parts when you purchase our products.

III. Applications:
Our products are widely used in the production operations of crushing plants, cement plants, lime plants, and concentrating mills. Their specific applications are as follows:
Ball mills grind many types of ore and other materials, and are widely used in mining, the chemical industry, etc.
Spiral classifiers are used in the distribution of ore, the grading of ore and fine silt in gravity mills, and for grading granularity of ore pulp in metal ore-dressing processes. They are also useful for de-sliming and dehydrating in the ore-washing process.
Vibrating screens can be used for grading materials in coal dressing, metallurgy, mining, power stations, construction and chemical industries, etc.
Rotary kilns are suitable for mechanical, physical, and chemical treatments of solid materials. They are applicable in the building industry, metallurgy industry, chemical industry, etc.

IV. Quality and Cost Control:
To ensure the quality of our products, we have formed cooperation with scientific research institutes in European countries, thus enabling us to introduce internationally advanced processing techniques and production lines to our operation. In addition, our incoming raw materials and our finished products are inspected 4 times before they are accepted or sold. We purchase our raw materials in large quantities, which help to reduce costs. We also save on labor costs by training our staff in-house. These steps and more enable us to provide crushing machines, mining machines, sand making machines, rolling mills, and cement equipment at a lower price than other manufacturers in this field.

V. Customer Services:
1. Pre-sale services:
We will happily assist you in getting the information you need to make a decision on which products best fit your needs. We want you to feel good about your purchase.
We can design and manufacture products as per your special requirements.
If required, we can train your technical personnel for you.

2. Services during the sale:
We strictly adhere to the principle of "the customer first". Your needs and concerns will be addressed to your complete satisfaction.
We can help clients to draft solutions to their specific situations.

3. After-sale services:
Our products are all guaranteed for a full year. During this period, if there is any quality problem, we repair it free of charge.

If needed, we can help you to install your equipment and train your operators on-site.
Inspection personnel will be sent to examine your equipment regularly.
If there is any problem, we will take measures to solve it immediately, on-site.
Technical exchanging is also provided for you.
For larger items, we can provide additional maintenance.
