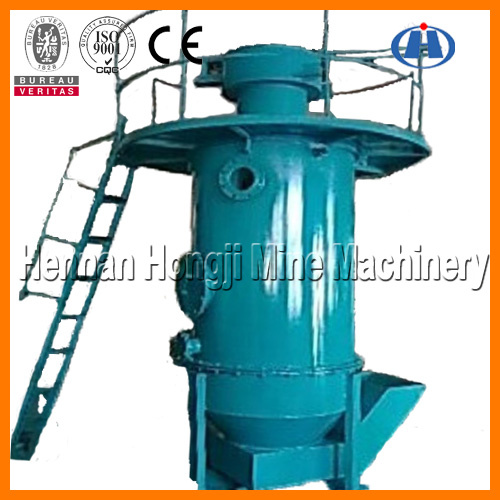

High Efficiency Clean Fuel Coal Gasification
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
Coal Gasification Reactor QM description:
Coal Gasification Reactor, Coal gas generator, Coal gas generators, gas generator, Coal gas generator equipment
The main features of Coal Gasification Reactor:
(1)main equipmenthave small investment
(2)quick start
(3)safe and convenient
(4)easy to operate
(4)save 20% fuel than the direct oil-burning. Use the hot gas can save over 60% of energy economy compared to direct fuel thermal processing furnace
(5)has a significant effect of dust collection, protect environment, is the essential equipment of hot-processing systems
Application of Coal Gasification Reactor:
Coal Gas Generator which designed and manufactured by our company use air and water vapor as the gasification agent, is the advanced equipment. It can product mixed-gas, fit gasify coke and other fuels. Coal gas generator is widely used in machinery, metallurgical, chemical, glass, building materials, light industry, food, textile industry.
Export country of the Coal Gasification Reactor:
India, Vietnam, Kazakhstan, Mongolia, Ecuador, Iran, Pakistan, Australia, the Middle East and other countries and areas.
Working Principle of the Coal Gasification Reactor:
Use the scientific technology structure to analyze water molecules, produced hydrogen (H2)to combuste, oxygen (02) for helping combustion, so that the temperature increased rapidly in combustion studio. This cycle can make fuel burn fully in the oven, and produce great heat value. Because of the full combustionand and swirl cyclone combustion technology in the combustion chamber, the coal gas genetor can achieve high temperatures, avoid the emission of harmful gases, such as C0, C02, N0, S02, smoke removal, dust removal, desulfurization, achieve the requirements of environmental protection department.
Main Technical Parameters of the Coal Gasification Reactor, Coal Gasification
| Model | QM0.8 | QM1.0 | QM1.2 | QM1.5 | QM1.6 | QM1.8 | QM2.0 | QM2.4 | QM2.6 | QM3.0 | QM3.2 |
| Chamber diameter(mm) | 800 | 1000 | 1200 | 1500 | 1600 | 1800 | 2000 | 2400 | 2600 | 3000 | 3200 |
| Hearth active surface(m2) | 0.5 | 0.785 | 1.13 | 1.77 | 2.01 | 2.54 | 3.14 | 4.52 | 5.31 | 7.07 | 8.00 |
| Suirable fuel | weak coherent gas carbon, anotherracite, burnt carbon |
| Fuel granularity(mm) | 25-80 |
| Fuel consumption quantitykg/h | 40-100 | 70-140 | 120-190 | 160-350 | 350-460 | 500-600 | 500-720 | 700-1040 | 850-1200 | 1700-2000 | 1800-2200 |
| Gasifying agent | Air, steam |
|
|
|
|
|
|
|
|
|
|
| Gas yieldNm³ /h) | 140-350 | 245-490 | 420-670 | 560-1200 | 1200-1600 | 1500-2100 | 1750-2500 | 2500-3600 | 3000-4300 | 6000-7000 | 6500-7500 |
| Gas calorific valu(Kj/Nm³ | 5020-5670 | 5020-6000 |
| Water jacket heating area() | 4.02 | 5.02 | 6.78 | 10.37 | 11.06 | 12.44 | 17.58 | 21.87 | 23.69 | 30.16 | 31 |
| Steam outputkg/h | 60 | 80 | 130 | 200 | 220 | 260 | 350 | 420 | 600 | 840 | 900 |
| Gas outlet temperature() | (400-500)Plants related with the coal | (400-500)Plants related with the coal |
| Gas outlet pressure(Pa) | 1000 | 980-1470 | 1470-1960 | 1470-1960 |
| Gas exportation diameter(mm) | 219 | 325 | 325 | 426 | 426 | 529 | 630 | 720 | 820 | 1020 | 1050 |
| Air pressure(Pa) | 3000 | 4000 | 4000 |
| Saturated air temperature() | 50-60 | 50-65 |
| Ashpan rotational speed(r/h) | 0.177-1.77 |
|
|
|
| Equipment gross weight(t) | 3.5 | 4.5 | 5 | 7.5 | 10 | 20 | 23.4 | 29.8 | 32 | 37.6 | 38 |
| Complete machine power(kw) | 6 | 6 | 6 | 7 | 8 | 10 | 14 | 20 | 20 | 27 | 27 |
| Tuyere diameter(mm) | 108 | 108 | 140 | 165 | 219 | 325 | 325 | 426 | 426 | 426 | 426 |
| Prod Model: |
QM |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Coal Consumption: |
100-7000kg |
| Suitable For Generator Or Not: |
Yes |
| Gas Source: |
Gas |
