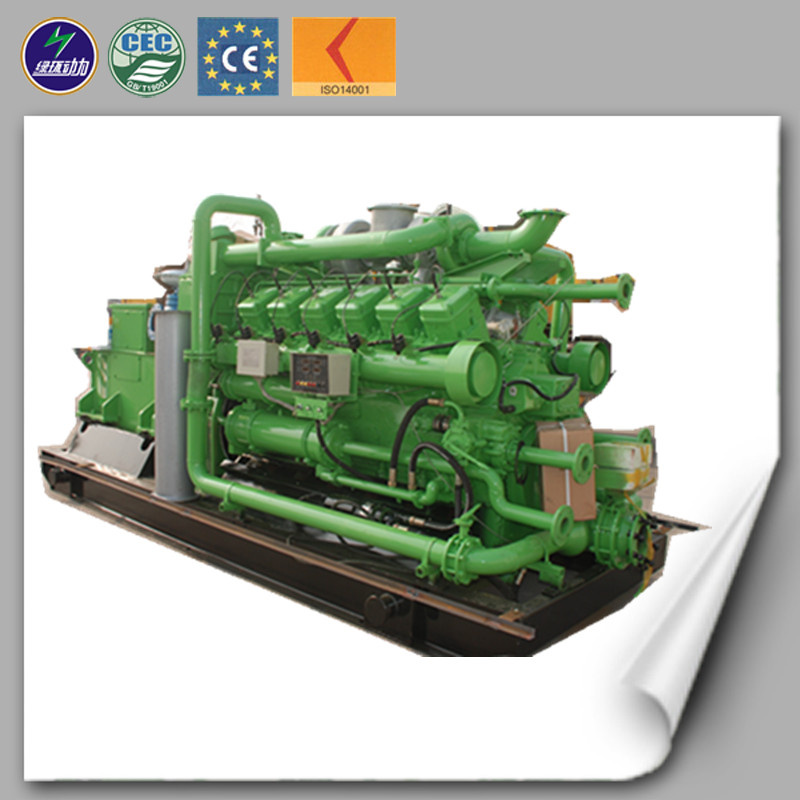

syngas generation heat and power combined lvhuan biomass generator set
We have a sales staff can speak in Russian, If you from Russia, Kazakhstan , Ukraine, Belarus, Uzbekistan, and other countries,you can visit our Russian website: www.lvhuanpower.ru.
Product Description
Worksite requirements
The worksite needs to meet following basic requirements:
a) Ambient temperature between -40ºC~45ºC;
b) Relative humidity less than 90%(35ºC);
c) Site elevation not higher than 2000m;
d) For outdoor installation, simple rain shelter is required.
Its main index requirements are as follows:hardness:0.7~5.3me/L ;chloride ion content:<150mg/L;PH≤7~8.5
Fuel gas requirement
1m distance away from genset's pressure regulating valve of inlet
1)Temperature of biomass gas ≤40ºC;
2)Pressure of biomass gas 3~10kPa, velocity of pressure≤ 1kPa/min;
3)H2S≤200mg/Nm3;
4)NH3≤20mg/Nm3
5)Tar Content ≤20%mg/Nm3
6) Impurities particle size≤5μm; impurity content≤30mg/Nm3;
7)Moisture Content of biomass ≤40g/Nm3;Heat value more than 4.2MJ/Nm3
Model Number (Engine Type) | LHBMG20-500 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 20KW/500KW |
| Rated Speed | 1000/1200RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant Consumption | ≤1.0g/kw.h |
| Engine Capacity | 71.4L |
| Cylinder Number | 12-V |
| Cylinder Bore | 190mm |
| Stroke | 210mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 6200x2100x2800mm |
| Weight | 12500kg |
Company Information:
1. over 15 years gas/diesel generator produced experience;
2. main products include: diesel engines, biomass generator, natural gas generator , biogas generator , coal gas generator set, etc. Products arrange from 5kw-3000kw ;
3. Our workshop covering more than 40000 square meters, techincal engineer and after-service more than 100 person.
4.CE,ISO9001:2008,ISO2001:1400 ,SGSetc.certificats approve and passed many patents.
5. exported many countries such as: Spain, Italy, Canada, Venezuela, Austraila, Thailand, Malaysia,Philippine,Indonesia,and with some Africa countries etc.
6.we provide TURN-KEY project : like water removal system,H2S removal system,gasified equipment,
recovery system of exhaust heat,CCHP system etc.
7.machine have long serive-life: more than 15 years.
Our Services
1.pre-sale service:
(1)We will send our engineer to prospect the site of power station free to charge.
(2)According to the situation of site we can supply you many drawings.
2.Sale service:
(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.
(2)We will debug the generator set till it can generate power successfully.
(3)We will also supply a technical training to the operators.Or send your staff to our company train you till you can operate the generator set.
3.After-sale service:
(1)our engineers are in charge of different area,we will response periodically and support you technical service free of charge.
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)we solve quality problem in time when genset doesn't work,We insure to help our clients to gain the biggest economic profit.
4.Spare parts service:
(1)Please provide parts No.s We can supply to you all engine/generator spare parts as your demand,
(2)All parts were from original factories or professional factories,complete in specification,keep good quality.
Our main products are gas generator set, diesel engine and diesel generator set
It forms a series of products, including: biogas gen-set, coal mine gen-set, natural gas gen-set, biomass gen-set, coke oven gas gen-set, Gas gen-set, diesel gen-set and the entire building machine
These products cover almost all the range of power, and their power performance, economical efficiency and reliability are all in the advanced level of this field.
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
