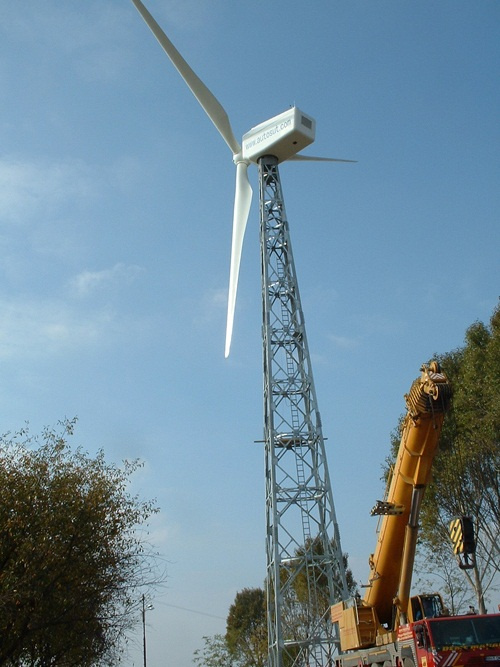

Our products has beem sold to many countries, our product scope is from 200W to 3Mw. We have installed a 200KW wind turbine in Romania, that's our sample overthere, which is installed for a coming goverment project. These photos are taked several days ago! If you want, we also would like to invite you to have a look over there.
|
SEQ |
Item |
Value |
|
1 |
Turbine |
SUT100 |
|
1.1 |
Model |
100kW |
|
1.2 |
Rated power (kW) |
100 |
|
1.3 |
Rotor diameter (m) |
21 |
|
1.4 |
Cut-in wind speed (m/s) |
3 |
|
1.5 |
Rated wind speed(m/s) |
13 |
|
1.6 |
Cutting out wind speed (m/s) |
25 |
|
1.7 |
Survival wind speed (m/s) |
60 |
|
1.8 |
Designing service life (year) |
20 |
|
1.9 |
Equipment availability |
≥ 97% |
|
2 |
Blade |
|
|
2.1 |
Blade material |
Glass fiber |
|
2.2 |
Blade quantity |
3 |
|
2.3 |
Rotational speed (rpm) |
60 |
|
2.4 |
Sweeping area (m2) |
346 |
|
2.5 |
Direction of rotation |
Clockwise |
|
3 |
Gear box |
|
|
3.1 |
Velocity ratio |
1: 16 |
|
3.2 |
Rated power(kW) |
120 |
|
3.3 |
Efficiency |
≥ 95% |
|
3.4 |
Lubricate mode |
Splash |
|
4 |
Generator |
|
|
4.1 |
Type |
Asynchronous |
|
4.2 |
Rated power(kW) |
100 |
|
4.3 |
Output voltage (V) |
400 |
|
4.4 |
Rated frequency(Hz) |
50 |
|
4.5 |
Rated speed(rpm) |
960 |
|
4.6 |
Rated slip |
1.2% |
|
4.7 |
Power factor |
0.99 |
|
4.8 |
Isolation grade |
F |
|
4.9 |
Lubricate mode |
On time infuse |
|
5 |
Brake |
|
|
5.1 |
Main Brake |
Air brake |
|
5.2 |
Second Brake |
Electric brake |
|
6 |
Yaw |
|
|
6.1 |
Type |
Electric |
|
6.2 |
Control way |
Auto direct |
|
7 |
Control |
|
|
7.1 |
Main PLC |
Embedded |
|
7.2 |
Rated voltage(V) |
DC24 |
|
7.3 |
Grid equipment |
IGBT |
|
7.4 |
Compensate capacitance |
LCL |
|
8 |
Surge protect |
|
|
8.1 |
Design standard |
IEC – II |
|
8.2 |
Surge way |
Blade tine |
|
9 |
Tower |
|
|
9.1 |
Type |
Steeliness cylinder |
|
9.2 |
Height (m) |
30 |
|
9.3 |
Surface antisepsis |
Spray-paint |
|
10 |
Foundation |
Based on measure |
|
11 |
Weight (t) |
7 |
