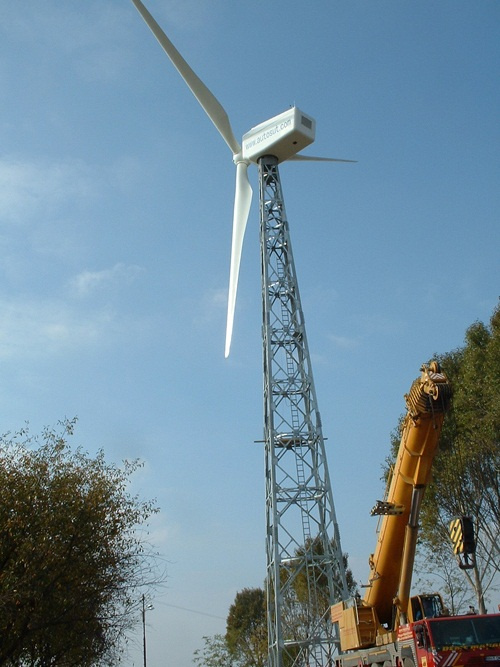

Our products has beem sold to many countries, our product scope is from 200W to 3Mw. It has CE certification, we have installed a 200KW wind turbine in Romania, that's our sample overthere, which is installed for a coming goverment project. These photos are taked several days ago! If you want, we also would like to invite you to have a look over there.
|
NO. |
Project |
Specification |
|
1 |
Turbine |
|
|
1.1 |
Type |
27/200 |
|
1.2 |
Rated power (kW) |
200 |
|
1.3 |
Power control |
Active blade pitch control |
|
1.4 |
Cut-in wind speed (m/s) |
3 |
|
1.5 |
Rated wind speed(m/s) |
13 |
|
1.6 |
Cut-out wind speed (m/s) |
25 |
|
1.7 |
Anti- maximum wind speed (m/s) |
59.5 |
|
1.8 |
Hub height(m) |
31 |
|
1.9 |
Designing service life (year) |
20 |
|
1.10 |
Operation environment |
-15~+45 |
|
2 |
Rotor |
|
|
2.1 |
Rotor diameter(m) |
27 |
|
2.2 |
Swept area (m ) |
573 |
|
2.3 |
Circum direction |
Horizontal axis upper wind clockwise |
|
2.4 |
Tilt angle (° ) |
4 |
|
2.5 |
Cone angle (° ) |
0 |
|
2.6 |
Rotor speed (variable)(rpm) |
35~55 |
|
2.7 |
Rated speed (rpm) |
48 |
|
2.8 |
Blade material |
Glass fiber composite(GFK) |
|
2.9 |
Number of blades |
3 |
|
2.10 |
Blade length (m) |
13.2 |
|
2.11 |
Blade weight (kg) |
500 |
|
3 |
Gear box |
|
|
3.1 |
Type |
2 Parallel stages |
|
3.2 |
Ratio |
1: 20 |
|
3.3 |
Efficiency |
≥ 97% |
|
3.4 |
Rated power (kW) |
220 |
|
3.5 |
Lubricate mode |
Splash/forced lubrication |
|
4 |
Generator |
|
|
4.1 |
Type |
Asynchronous generator |
|
4.2 |
Rated power (kW) |
200 |
|
4.3 |
Rated voltage (V) |
AC400 |
|
4.4 |
Rated frequency (Hz) |
50 |
|
4.5 |
Rated speed (rpm) |
980 |
|
4.6 |
Protection class |
IP54 |
|
4.7 |
Isolation grade |
F |
|
5 |
Inverter |
|
|
5.1 |
type |
Full power IGBT |
|
5.2 |
Power factor |
-1.0~1.0 |
|
6 |
Brake system |
|
|
6.1 |
Aerodynamic |
Individual blade pitching |
|
6.2 |
High speed brake |
Electrical |
|
7 |
Yaw system |
|
|
7.1 |
Type |
Active yaw |
|
7.2 |
Yaw driver |
1 motor and gearbox |
|
7.3 |
Yaw braking |
4 |
|
8 |
Control system |
|
|
8.1 |
Type |
PLC |
|
8.2 |
Monitoring |
Remote monitoring system |
|
9 |
Lightning Protection |
|
|
9.1 |
Design standard |
IEC61024/61312/61400, GB50057 |
|
9.2 |
Protection methods |
Equipotential earthing |
|
10 |
Tower |
|
|
10.1 |
type |
Subsection steel conic tower |
|
10.2 |
Height |
30m |
|
11 |
Weight |
|
|
11.1 |
Nacelle |
8 t |
|
11.2 |
rotor |
1.5t |
|
11.3 |
tower |
28t |
|
12 |
Base |
Tower base ring |
