1: Advantage
1) Mature technology-Ricardo Tech From UK
2) Sufficient burning---Low fuel consumption
3) Leading and most widely used Disel generator sets in China market, reliable quality and steady performance.
2: Guarantee for 1 year.
A- 1 set of accessory for free( air filter, diesel filter, lubricating oil filter, vee belt, cylinder head gasket, air valve spring, wrench for air valve spring, inject nozzle)
Spare parts catalogue: 1 PC Instruction and maintenance book: 1 PC
B- Standard collocation: Electric system, alternator, steel structure base plate, fan and water tank of cooling system, flange connector, set shock absorber, air filter, diesel filter, lubricating oil filter, control panel, MCCB air conservation switch, high efficiency muffer, 12V/24 starting motor and charging motor.
C- Operation display: Voltage meter, three-phase load current and frequency display, Water temperature, oil pressure display, Fuel level, fuel temperature display.
|

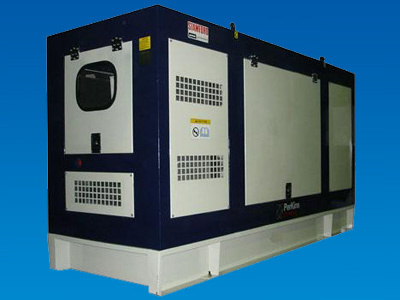

Model |
TL-30S |
|
Type |
Silent type |
|
Output power (Prime Power) |
30KW |
|
Rated voltage |
400/230v |
|
Rated Current |
14.4A-270A |
|
Frequency |
50HZ / 60HZ |
|
Power factor |
0.8 |
|
Rated speed |
1500rpm / 1800rpm |
|
Output type |
AC three phase, 4 wire |
|
Alternator Type |
brushless |
|
Frequency |
< 3% |
|
Frequency at stable state: |
< 0.5% |
|
Frequency deviation at instantaneous state |
≤ +10% |
|
Frequency return time |
≤ 3s |
|
Voltage deviation at stable state |
≤ ± 1% |
|
Voltage deviation at instantaneous state |
≤ +20% |
|
Voltage return time |
≤ 4s |
|
Voltage modulation |
≤ 0.3% |
Detail Specifications of Engine.
|
Model |
Ricardo K4100ZD |
|
Cooling Method |
Water-cooled |
|
Rated Power |
40KW (44KW---1800rpm) |
|
Rated Speed |
1500rpm |
|
Governor system |
Mechanical |
|
Aspiration mode |
Turbo Charged |
|
Starting method |
12/24V DC electric starting |
|
Stroke |
4 stroke |
|
NO. of cylinders |
4 |
|
FIP type |
Inline |
|
Displacement |
3.61L |
|
Fuel consumption |
≤ 258.4 g/kw. h |
|
BorexStroke |
100x115mm |
|
Compression Ratio |
1: 19 |
|
Recommended Lub oil change period |
250hours |
|
Type of lub oil filter |
Spin on |
|
Type of air filter |
Dry |
|
SIZE |
1070X640X1070mm |
|
Weight |
380Kg |
Specifications of alternator
|
Brand |
SHANGHAI QIANGHUI |
|
Regulator |
AVR--- automatic voltage regulating |
|
Excite type |
pret or shunt |
|
Connecting type |
3PH star, 3PH-DELTA |
|
Steady frequency change |
0-5% |
|
No load voltage |
≥ 95%-105 |
|
Steady voltage |
≤ ± 1 |
|
Insulation degree |
H degree |
|
Exclosure degree |
IP23 |
Weifang Dilate diesel engine Co., Ltd, located in the Economic Technique Development Area of "Chinese power city" -Weifang City, is a comprehensive company which engaged in the development, manufacture and management of 8kw-1000kw diesel engine and generating sets.
For the generating set and automatic water pump set, we select Weifang Dilate diesel engine Co., Ltd, located in the Economic Technique Development Area of "Chinese power city" -Weifang City, is a comprehensive company which engaged in the development, manufacture and management of 8kw-1000kw diesel engine and generating sets.
For the generating set and automatic water pump set, we select international diesel engines such as CUMMINS, DEUTZ, 135, WEICHAI series engines to collocate MARATHON and STAMFORD and other international brand alternators. With reasonable design, advanced craft, low noise, weak librations, quick startup and creditable capability, our products have been widely used in such fields as industry, mine, bank, hospital, ship, post office and telecommunications, oil, high-rise and field construction.
For the diesel engine, the main product series is 295, 2100, 495, 4100, 4102, ZR4105 and ZR6105 series, with the low fuel consuption, the strong reliability. These engines are easy to operate, convenient to repair. These kinds of products are suitable to be used to the power set, the medium tractor, the project machinery, the air compressor and so on.
Weifang Dilate diesel engine Co., Ltd owning the domestic advanced workshop and production line, first-class assembly line, well-equipped testing platform; We also have the abundant technical teams, and have forced the international department, technical department, project department and other specific departments which make the production more specialized and excellent. Now we have solden our products to more than twenty countries, and have been set up the long term business with more than ten countries.
Weifang Dilate diesel engine Co., Ltd also provides excellent sales service and techinical support while provide the high quanlity product. If you are interested in any series of our products, please feel free to contact us. Hope we have chance to cooperate and let's open a bright future based on the mutual benefit!
