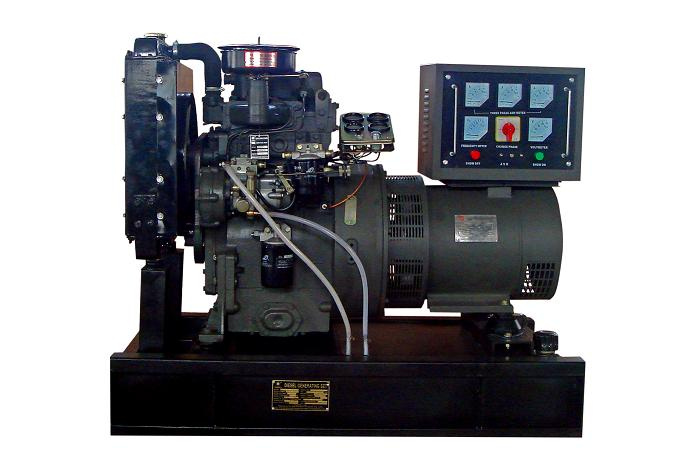

Genset model: TLR8GF
Type: Open type
Genset output power: 8 KW
Fuel tank Continuous running for 8 hours
Rated voltage 400/230v
Rated Current 14.4A-270A
Frequency 50HZ / 60HZ
Power factor 0.8
Rated speed 1500rpm / 1800rpm
Output type AC three phase, 4 wire
Alternator type brushless
Frequency < 3%
Frequency at stable state: < 0.5%
Frequency deviation at instantaneous state ≤ +10%
Frequency return time ≤ 3s
Voltage deviation at stable state ≤ ± 1%
Voltage deviation at instantaneous state ≤ +20%
Voltage return time ≤ 4s
Voltage modulation ≤ 0.3%
Detail Specifications of Engine
Model 2100D
Cooling Method Water-cooled
Rated Power 15.5 KW ( 18KW--1800rpm)
Rated Speed 1500rpm
Governor system Mechanical
Aspiration mode Natural aspirated
Starting method 12/24V DC electric starting
Stroke 4 stroke
NO. Of cylinders 2
FIP type Inline
Displacement 1.81L
Fuel consumption ≤ 250.2 g/kw. H
BorexStroke 100x115mm
Compression Ratio 1: 19
Recommended Lub oil change period 250hours
Type of lub oil filter Spin on
Type of air filter Dry
SIZE 900X620X1000mm
Weight 345kg
Specifications of alternator
Brand Shanghai qianghui
Regulator AVR
Excite type pret or shunt
Connecting type 3PH star, 3PH-DELTA
Steady frequency change 0-5%
No load voltage ≥ 95%-105
Steady voltage ≤ ± 1
Insulation degree H degree
Exclosure degree IP23
Weifang Dilate diesel engine Co., Ltd, located in the Economic Technique Development Area of "Chinese power city" -Weifang City, is a comprehensive company which engaged in the development, manufacture and management of 8kw-1000kw diesel engine and generating sets.
For the generating set and automatic water pump set, we select Weifang Dilate diesel engine Co., Ltd, located in the Economic Technique Development Area of "Chinese power city" -Weifang City, is a comprehensive company which engaged in the development, manufacture and management of 8kw-1000kw diesel engine and generating sets.
For the generating set and automatic water pump set, we select international diesel engines such as CUMMINS, DEUTZ, 135, WEICHAI series engines to collocate MARATHON and STAMFORD and other international brand alternators. With reasonable design, advanced craft, low noise, weak librations, quick startup and creditable capability, our products have been widely used in such fields as industry, mine, bank, hospital, ship, post office and telecommunications, oil, high-rise and field construction.
For the diesel engine, the main product series is 295, 2100, 495, 4100, 4102, ZR4105 and ZR6105 series, with the low fuel consuption, the strong reliability. These engines are easy to operate, convenient to repair. These kinds of products are suitable to be used to the power set, the medium tractor, the project machinery, the air compressor and so on.
Weifang Dilate diesel engine Co., Ltd owning the domestic advanced workshop and production line, first-class assembly line, well-equipped testing platform; We also have the abundant technical teams, and have forced the international department, technical department, project department and other specific departments which make the production more specialized and excellent. Now we have solden our products to more than twenty countries, and have been set up the long term business with more than ten countries.
Weifang Dilate diesel engine Co., Ltd also provides excellent sales service and techinical support while provide the high quanlity product. If you are interested in any series of our products, please feel free to contact us. Hope we have chance to cooperate and let's open a bright future based on the mutual benefit!
