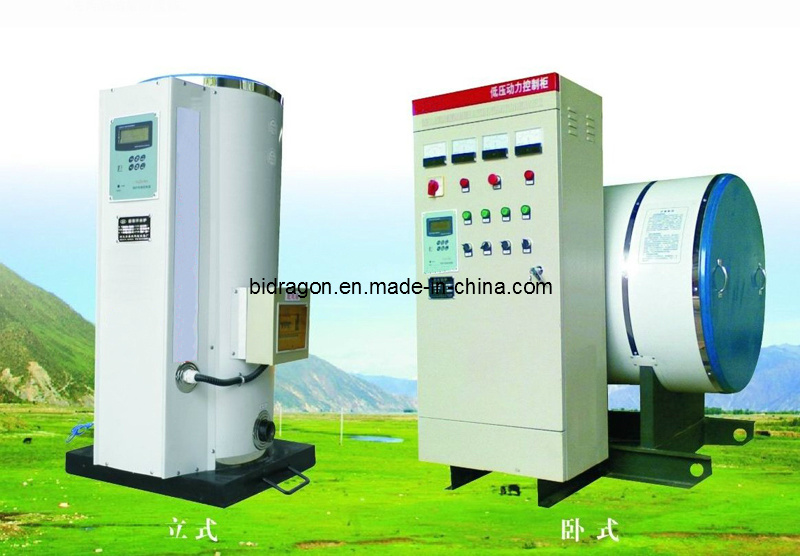

1. Function introduction:
The steam and hot water boiler can produce steam and hot water at the same time, low pressure, high safety, the boiler are used in dining room, restaurants, hotels, hospital, school, etc, enterprises and institutions, for the heating, bathing, drinking water and so on.
2. Main features:
The steam and hot water boiler adopt automatic control, and its main electric component and burner is imported, world well-known brand, reliable safety, low cost.
1) Stainless steel pipe, beautiful appearance, long timespan, large water volume.
2) One boiler with two usages takes small room.
3. Outstanding advantages:
1) One boiler with many usages, can supply drinking water, bathing water and low pressure steam.
2) Adopt imported burner, no voice, no pollution, environment protected, energy saved.
3) The whole equipment comes from factory, easy to install, and it can check the water level and pressure automatically.
4) Equipped with hand hole, easy to maintain and remove scale.
5) Advanced LCD with intelligent control system, it can control outlet water temperature according the user' requirement.
6) Have the safety protection about water shortage, over temperature, overheating, so it is safe and reliable.
7) Advanced internal structure design, big heating area, high thermal efficiency.
|
Item/Type |
LDR0.05-0.04 |
LDR0.1-0.04 |
LDR0.15-0.04 |
LDR0.2-0.04 |
LDR0.3-0.04 |
LDR0.5-0.04 |
Rated steam
capacity T/H |
0.05 |
0.1 |
0.15 |
0.2 |
0.3 |
0.5 |
Rated Steam
Pressure Mpa |
0.04 |
0.04 |
0.04 |
0.04 |
0.04 |
0.04 |
|
Rated steam temperature (centigrade) |
109 |
109 |
109 |
109 |
109 |
109 |
|
Electric power KW |
36 |
72 |
108 |
144 |
216 |
360 |
|
Hot water capacity Kg/h |
480 |
900 |
1440 |
1800 |
2700 |
4500 |
|
Bathing water capacity Kg/h |
960 |
1800 |
2880 |
3600 |
5400 |
9000 |
|
Water volume m3 |
0.28 |
0.62 |
0.8 |
0.93 |
1025 |
1.48 |
|
Power supply V/H |
380/220/50 |
380/220/50 |
380/220/50 |
380/220/50 |
380/220/50 |
380/220/50 |
|
Thermal efficiency % |
99 |
99 |
99 |
99 |
99 |
99 |
|
Diameter of steam outlet mm |
DN25 |
DN25 |
DN32 |
DN32 |
DN40 |
DN50 |
|
Diameter of hot water outlet mm |
DN20 |
DN20 |
DN25 |
DN25 |
DN25 |
DN25 |
|
Diameter of bathing water outlet mm |
DN20 |
DN25 |
DN25 |
DN32 |
DN40 |
DN50 |
|
Diameter of sewage |
DN25 |
DN25 |
DN25 |
DN25 |
DN32 |
DN32 |
|
Weight mm |
385 |
588 |
786 |
810 |
880 |
976 |
|
External dimension mm |
780×600×1100 |
780×600×1100 |
850×700×1100 |
850×700×1100 |
1500×950×1700 |
1500×950×1850 |
