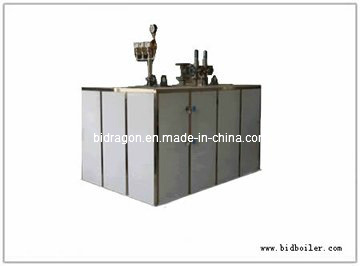

500-2000kg Electrical Steam Generator
Main Features:
1. Safety valve confirmed with Chinese boiler standard and asme standard
2. Thick steel boiler
3. Water feeding valve and check valve
4. Standard water lever gauge
5. Stainless electric heating components
6. Electric circle protection fuse
7. Main power connection ends
8. Power indicator and switch
9. Two adjustable up-limited controler
10.304# stainless cover
11. Max. Operating pressure 0.7mpa
12.75mm thickness glass-fibre insulation
13. Stainless pressure gauge
14. Blown down valve
15. Float water level control valve
16. Pre-heating switch
17. Super performance solenoid valve
18. Siemens PLC controler
19. All operating status indicator light
20.1-3 steps pressure switch.
|
Model |
Power |
Steam Output Kg/h |
Operating Current |
Water Inlet Valve(DN) |
Blown Down Valve(DN) |
Steam Outlet Valve |
Water Volume |
Weight |
|
|
KW |
A |
(DN) |
L |
Kg |
|
|
WDR-360 |
360 |
500 |
545 |
25 |
32 |
50 |
1200 |
1500 |
|
|
WDR-480 |
480 |
670 |
728 |
25 |
32 |
50 |
1200 |
1500 |
|
|
WDR-720 |
720 |
1000 |
1090 |
25 |
32 |
65 |
1500 |
2000 |
|
|
WDR-720 |
720 |
1000 |
1090 |
25 |
32 |
65 |
1500 |
2000 |
|
|
WDR-1080 |
1080 |
1500 |
1635 |
32 |
40 |
65 |
1800 |
3000 |
|
|
WDR-1440 |
1440 |
2000 |
2180 |
32 |
50 |
65 |
2400 |
4000 |
|
|
|
|
|
|
|
|
|
|
|
|
