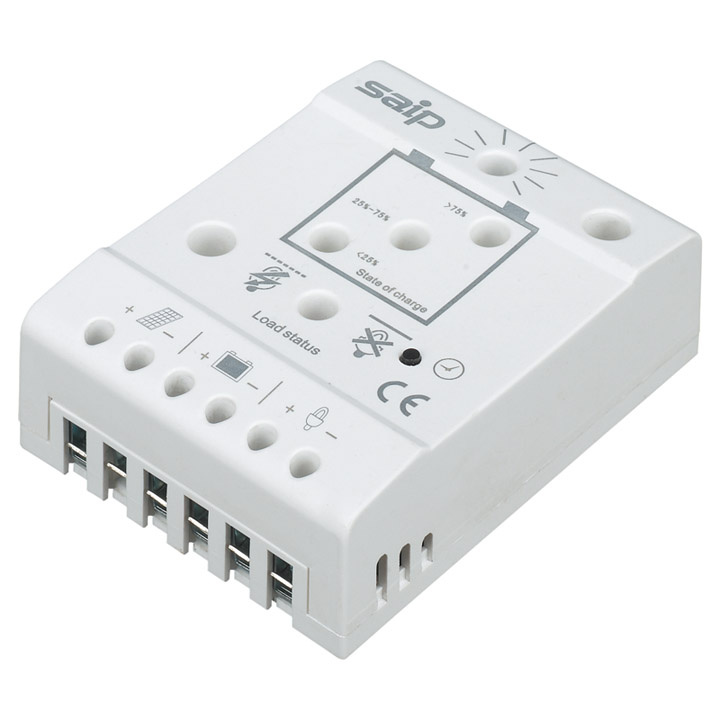

Solar Streetlight Controller (SML NL20)
1,12V/24V,automatic recognition
2, CE,ROSH
3,PWM Solar Charge Controller
1. IntroductionThe SMLNL series is a sophisticated solar charge controller family for low cost applications.
The electronic circuit is equipped with a microcontroller that provides high-efficiency charging technology together with a number of outstanding status display, warning and safety functions. The SMLNL series comes with two nightlight function mode. One of them is programmable that switch on the load output for a adjustable number of hours from dusk.
The nightlight function is overridden by a battery deep discharge protection to avoid excessive dicharge and damage of the battery.
The temperature-compensated three-state PWM charging method (boost-equalize-float) is now ajustable to sealed and vented lead-acid batteries.
The low voltage disconnect function can be controlled either by SOC or by voltage.
The battery status, charging status and load status are clearly indicated by 5 LEDs.

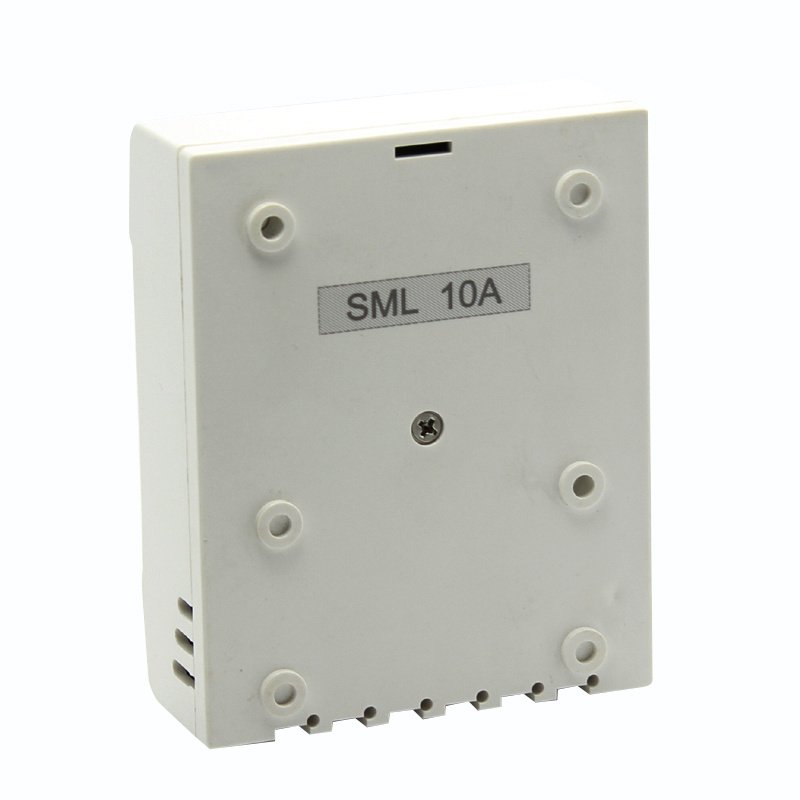

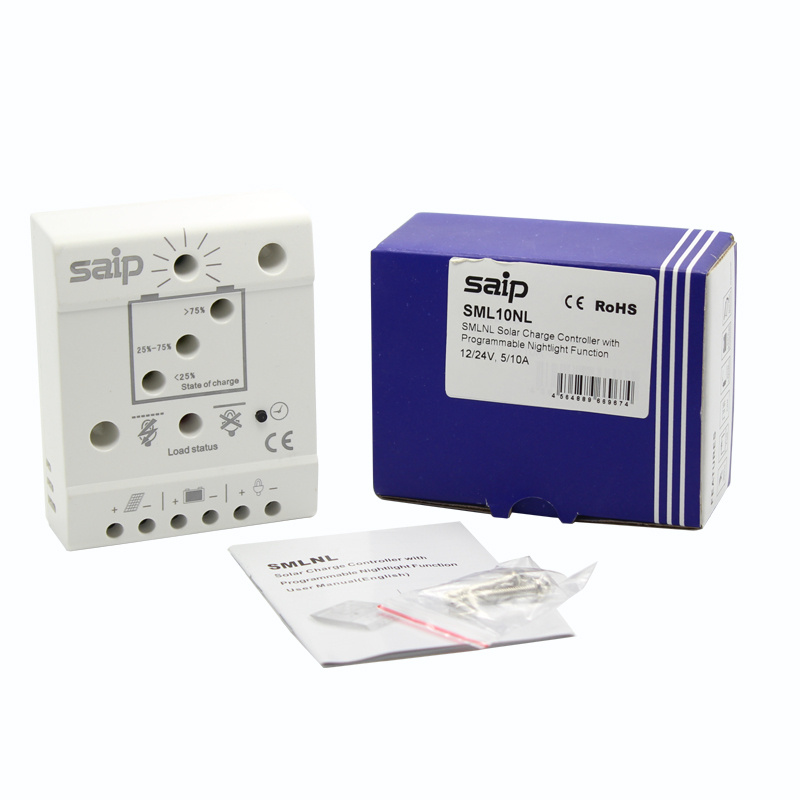

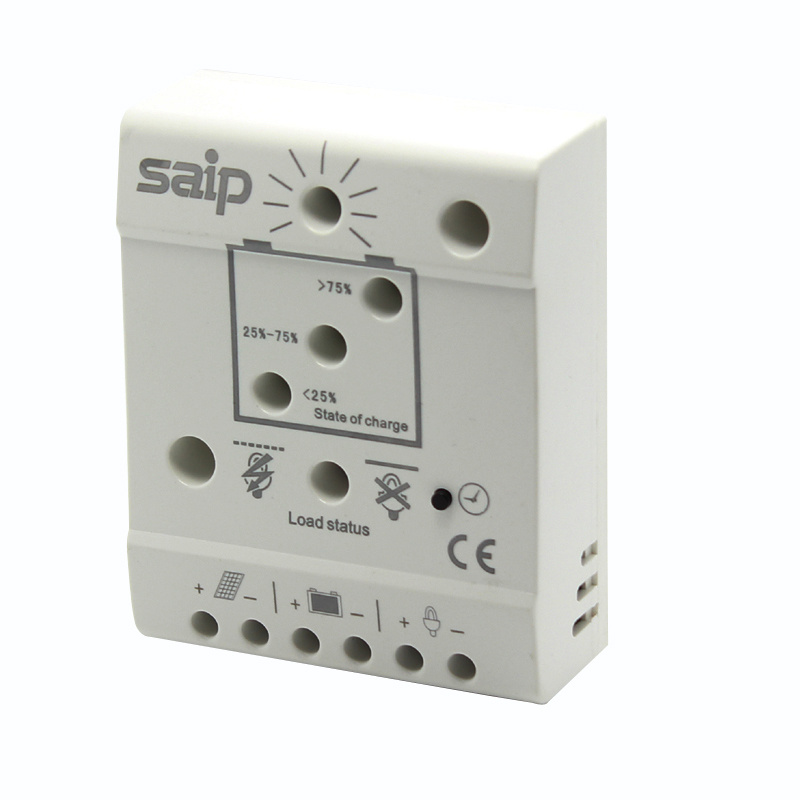

2. Product Show
3. ABOUT US SAIPWELL, as a professional manufacturer and supplier, is specialized in developing, producing electric equipments fitting all over the world. Our goal is to BUILD BEATIFIC PRODUCT
Please kindly contact with us freely. High quality,reasonable price,best service is offered to you.
Saip as always inherits "high quality and sincere service".
Saip - your successful cooperative partner!
|
Model |
SML NL05 |
SML NL08 |
SML ML10 |
SML NL15 |
SML NL20 |
SML NL25 |
|
Nominalvoltage: |
12/24V automatic recognition |
|
Max. module current |
5A |
8A |
10A |
15A |
20A |
25A |
|
Max. load current |
5A |
8A |
10A |
15A |
20A |
25A |
|
Boost voltage |
14.5V/29.0V |
|
Equalization voltage |
14.8V/29.6V |
|
Equal ization voltage |
13.7/27.4V |
|
Deep discharge protection |
11.4-11.9V/22.8-23.8V control led by statc of charge 11.0/22.0V control led by voltage |
|
Load reconnect voltag |
12.8/25.6V |
|
Temperature compensation |
-4mV/cel l*K |
|
Self consumption |
<4mA |
|
Max. wire size |
16mm ²(AWG#6) |
|
Dimensions(W×H×D) |
80*100*32mm(w*h*d) |
|
Weight |
220g |
|
Temperature range |
-20to+50°C |
|
Type of protection |
IP22 |
