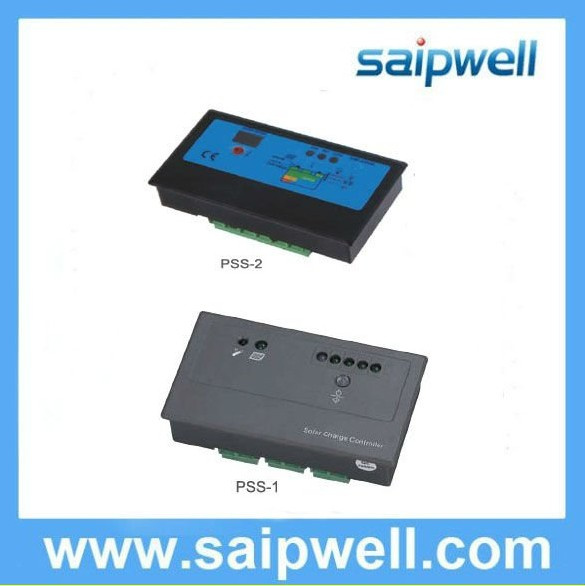

2014 New Panel Type Solar Charge Controller
Specifications
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
1. Two battery charging eliminates the added cost of two separate solar charging systems;
2. With battery type selection;
3. With charging priority setting;
4. Temperature compensation(option: Remote temperature senorsb& local temperature senor);
5. Remote meterMT-2(Option)
6. Electronic protections: Over discharging, short-circuit, over load, and battery reverse polarity assembly etc
7. PWM charging, different frequency option.
Features
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Electronic protection:
1. Short circuit protection
2. Reverse polarity protection
3. Reverse current protection at night
4. Over charging or discharging protection
5. Over load protection
Display: LCD display: All systems parameters in digital value, system status as symbols
Model |
PSS10 |
PSS15 |
PSS20 |
Rated Current |
10A |
15A |
20A |
System Voltage |
12V/24V AUTO |
Over Load Protection |
1.25 times of rated current for 60 seconds,
or 1.5 times for 5 seconds |
Self-consumption |
≤6mA |
Working Temperature |
Industrial: -35C to +55C |
Equalize Charging Voltage |
14.6V; ×2/24V |
Boost Charging Voltage |
14.4V; ×2/24V |
Float Charging Voltage |
13.8V; ×2/24V |
Boost Reconnect Charging Voltage |
13.2V; ×2/24V |
Temperature Compensatio |
-30mV/C/12V |
Under Voltage Warning Voltage |
12.0V; ×2/24V |
Low Voltage Disconnect Voltage |
11.1V; ×2/24V |
Low Voltage Reconnect Voltage |
12.6V; ×2/24V |
Terminals |
6mm² |
6mm² |
6mm² |
Yueqing Saibang Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces new source products, including Solar Generator, Solar charge controller, Wind Generator, Solar Inverter, Solar tracking systems and so on.
