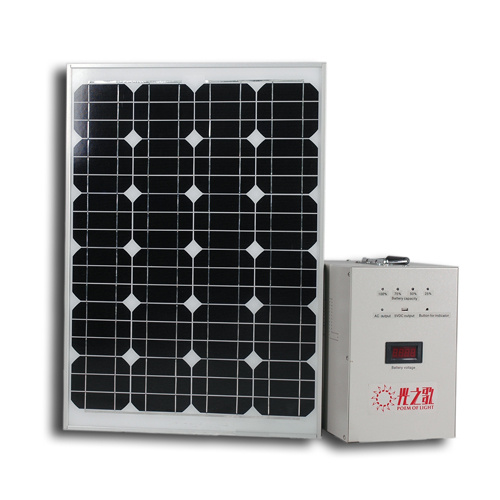

The Solar home System(SHS) utilizes high efficiency solar module as generator, it can generate electricity under weak solar radiation.
Main components: Solar module, lead-acid battery, controller, breaker, bracket and pole. In installation, it utilizes independent power supply system, without buried cables, charging automatically, simple execution, without manual operation, steady & reliable working, long life-time and has characters of safety, energy saving, environment protection, utility, high- efficiency and easy assembly.
Characteristics of Solar Home System:
Long working-lifetime\battery with high efficiency\small weight\no need change any accessory until 10 years
Durable\wind range of working environment
Energy management\high exchange efficiency\high performance ratio
It applies to rival land\ship\seaboard\horde\mountain, etc
Supply power independently\no need worry about power ending
Energy-saving and pollution-reducing; Happy life
Safe and reliable\save cost of delivering power and maintaining
We also can customize the solar home system according to client's requirements
Solar module component :
|
No. |
Parts |
Component |
Specification |
Weight |
Q' ty/Unit |
|
1 |
|
solar panel |
mono-crystalline silicon 50W/18V; 685*515*30mm |
5.1kg |
1pc |
|
2 |
External |
cable for solar panel |
2.5SQ mm; 2 cores |
|
5m |
|
3 |
|
shelf for solar panel |
685*515*30mm |
|
1set |
|
|
|
|
|
|
|
|
4 |
|
solar controller |
12V/5A; |
0.12kg |
1pc |
|
5 |
|
inverter |
300W/ input voltage:12V; output voltage: 220/110 (option) |
0.4kg |
1pc |
|
6 |
power box |
case |
330*230*356mm |
|
1pc |
|
7 |
|
other accessories(cable) |
2 cores |
|
1set |
|
8 |
|
colloid battery with free maintenance |
38Ah/12V; |
14kg |
1pc |
|
|
Characteristic |
A. suitable for small power appliances, such as 2pcs 5W LED lamp works 6H/day, 30W fans works 8H/day for two overcast & rainy day constantly |
|
|
|
B. with over-charging and low-voltage protection |
