Wind energy 1kW wind turbine
Guangzhou Poem of Light Energy Technology Co., Ltd is specialized in R&D and manufacturing wind turbines, solar home systems, wind-solar hybrid street lights as well as a wind/solar energy solution provider in Guangzhou.
POL wind turbines features:
High Efficiency, High reliability
Start Up in Gentle Breeze
Long Lifetime up to 15 years, Maintenance- free
Light Weight, Easy to Install
Heavy Wind Resistance, Low Noise
Anti-Rust, Anti-Corrosion
Damp-Proof, Water-Proof, Sand-Proof

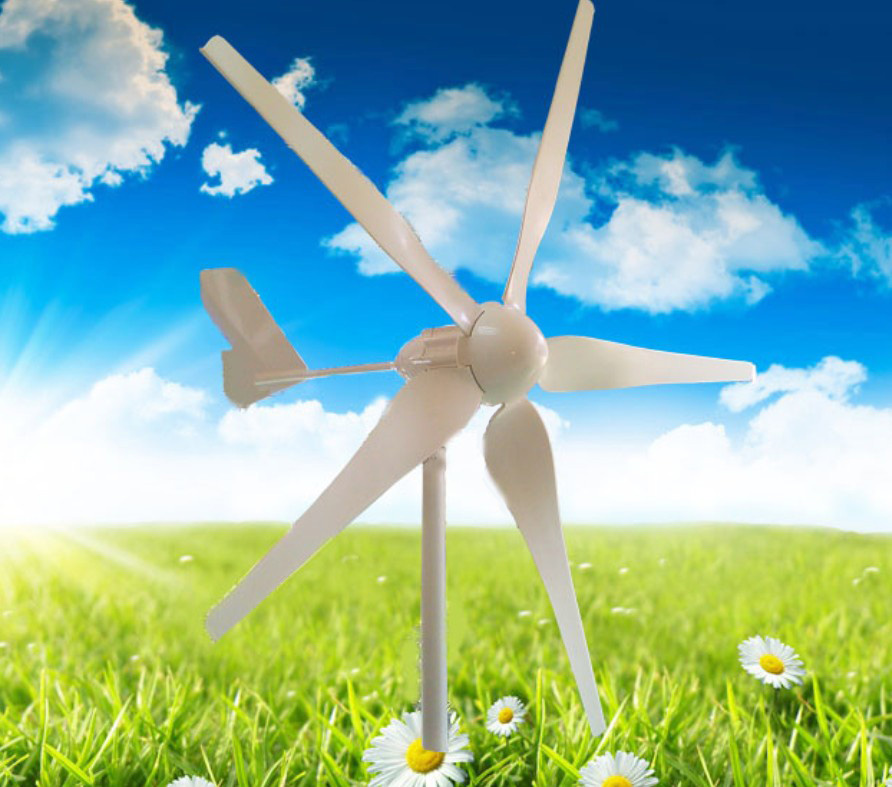

The PWT1000/12-L wind turbin uses natural wind energy to drive rotor and generator for generating electric, and then stores it in the battery by controller. The battery will discharge electric energy to lighting or other DC appliances when they are using. It's also can convert to AC 220V/50Hz (or 110V/60Hz) by inverter for AC appliances.
Application:
POL series wind generator is a new type of green energy specially applies for roadway illumination\park landscape illumination\home appliances, as well as some places lack of electricity or no electricity, such as rural area\mountain area\pastoral area\border post\weather station\radar station\ relay station and outdoor exploration, the small and medium power generation is an ideal investment and lifetime benefit device.
|
Specifications |
|
Rated Power |
1000W |
|
Maximum output |
1500 W |
|
Starting wind speed |
2m/s |
|
Cut-in wind speed |
2.5m/s |
|
Rated wind speed |
11 m/s |
|
Survival wind speed |
50m/s |
|
Rated DC output |
DC24V/48V |
|
Weight |
32kg |
|
Diameter of rotor |
1.96m |
|
Height of pole |
8-15m |
|
carton size |
1295*470*255 mm |
|
Speed regulation method |
mechanical yawing + electromagnetic brake |
|
Low Noise |
LAeq 35dB@5m/s@5m behind rotor |
Working Temp. range ° C
|
from -40° C to 60° C . |
|
special low temp. blade is very suitable for low temp areas . the blades is tested on the low temp during long years ,they are still working. On High temp areas (like middle east ). they have been running for many years. |
|
Generator Type |
Brushless 3-phase PMA with high performance Neodymium Magnets, every magnets is smart,
whole wind turbine is convenient. |
Hub and
main frame |
made of aluminium alloy which higly resistant to corrosion , reduce whole wind turbine weight , more easly to install and transport |
|
|
|
Appearance |
|
Color |
white |
|
Diameter of rotor |
1.96m |
|
Blade material |
FRP (Fiber Reinforced Plastic ) |
|
Gross weight |
29kg |
|
Packing dimension |
1295*470*255 mm |
GUANGZHOU POEM OF LIGHT ENERGY TECHNOLOGY Co., Ltd(POL) is a high-tech company specilized in R&D, production and sales of wind turbines, solar home systems and this kind of new energy products. POL pools a group of advanced technical personnel in the field of new energy generation. Among them are 5 overseas returnee doctors and masters with many years working experience in this field abroad.
POL has independent R&D centre, regarding independent innovation as lifeline of the enterprise. The company has built the new energy generation solution technical plarform with filtering by high-lights, generation by dim-lights and breeze, energy management and intelligent control as core technology with several technology advanced in the world and proceded in China.
On the basis of the independent R&D, the company promote international co-operation positively; And trace and synchronize international technology development in new energy field through the co-operation to make sure that the company's strategic development direction is right.
The main products of POL include high-efficient Wind turbine, new energy street lamps, home power system and other application products. With our advanced technology platform, POL can provide a lot of new energy power generation solutions for our custommers.
