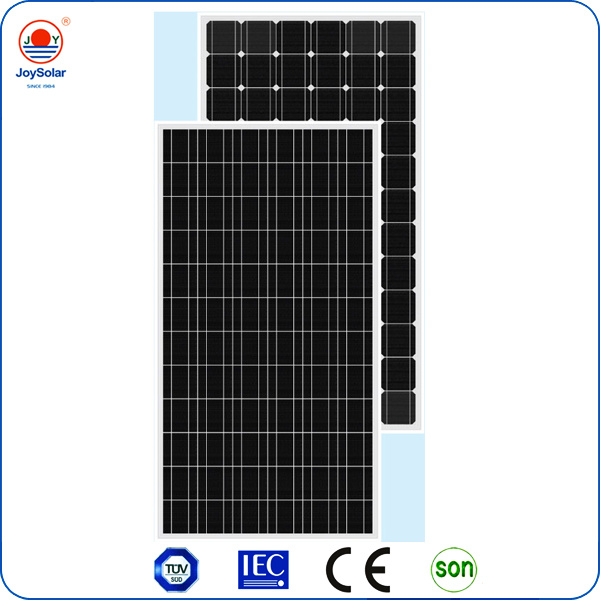

M20
Cell Polycrystalline Silicon Solar Cell
Size of Cell 156*26
No. Of Cell 36 (2*18)
Size of Module (mm) 558*351*25
Weight 2.5Kg
Open Circuit Voltage (Voc) 21.8 V
Maximum power Voltage (Vmp) 17 V
Short Circuit Current (Isc) 1.27A
Maximum power Current (Imp) 1.17A
Maximum Power (Pm) 20W
NOCT 48± 2degree
Current Temperature Coefficient (%/K) 0.055± 0.01
Voltage Temperature Coefficient (Mv/K) -(150± 10)
Power Temperature Coefficient (%/K) -(0.47± 0.05)
Operating Temperature Coefficient -40 to +85degree
Maximum System Voltage
