Eatures:
1. National patent, No. ZL 2010 2 0231765.3

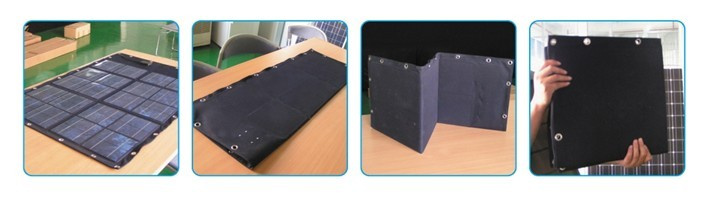

2. Foldable, light weight, small size and easy to carry.
3. Advanced production technology, high conversion rate, high reliability
4. High strength, high light transmission membrane replace tempered glass and entire module are certified to withstand High Wind-Pressure, Snow-Load, and extreme Temperature Changes
5. Corrosion-resistant fabric package instead of traditional aluminum frame, scratch and chemical corrosion resistance
6. Strict process control and unique technology ensures high performance
7. 25-year transferable power output guarantee, in accordance with international quality system
8. Customized special products of peak voltage 12V/16V/20V to meet specific requirements.
Quality and Warranty
Rigorous quality control meeting the highest international standards: ISO 9001: 2008 (Quality Management System) and ISO 14001: 2004 (Environmental Management System).
Received China international patent, conformity to CE
25-year transferable power output guarantee
5 year material and workmanship warranty
|
Module Type |
NES |
NES36-6-50MZD |
NES36-6-70MZD |
|
Max. power(Peak) |
Pm(W) |
50 |
70 |
|
Power tolerance |
(%) |
±3% |
±3% |
|
Max. system voltage |
(VDC) |
715 |
715 |
|
Max. power voltage |
Vmp (V) |
17.7 |
17.8 |
|
Max. power current |
Imp(A) |
2.83 |
3.94 |
|
Open circuit voltage |
Voc(V) |
22 |
22.1 |
|
Short circuit current |
Isc(A) |
2.9 |
4.17 |
|
Solar cell |
|
Mono or poly
156mm×52mm |
Mono or poly
156mm×78mm |
|
No.of cells |
|
36 |
36 |
|
dimensions |
Fully expanded
|
1456419mm |
1118×757mm |
|
Folded |
210×250mm |
379×379mm |
|
Weight |
KG |
2.45 |
3.7 |
|
Junction Box |
|
IP65 rated |
Output Cable
|
|
Wire Diameter 1.5mm 2 ,length 300mm without MC4 Connector |
No. 36 Research Institute of CETC is A FIRST CLASS Scientific Research Institute engaged in Technical Research & Equipment Development in the fields of Communication & Specialized communication. Specialized Fields comprises of broadly as Signal processing, RF Power, Antennas, Software & Computer Application, Wired & Wireless Communication, Chip Board Electronics, Solar Panel & Systems, Solar Applications & Configuration, etc. Our R & D Center is rated as a 1st Class Center in China, with considerations towards Green Energy, Environment Protection coupled with most Advanced Scientific Equipments to assist our Research Facilities, Design & Development Methods. Our Testing Equipments & Machinery are from high quality manufacturers from around the world and also from within China. We also have the largest setup for the lowest frequency Anechoic Chamber in China. Our Computer Aided Design Center (CAD), Simulation Laboratory, Testing Centre, Precision Component Manufacturing Center are considered the best in the industry.
New Energy Sector is the primary division of No. 36 Research Institute, which specializes in Design, Development, Manufacture, and Distribution of High Quality Solar Modules & Solar Application System and offers Technology Services. The products include High Efficiency Mono Crystalline & Polycrystalline Solar Panel ranging between 10 Watts & 300 Watts; Solar Power Generation Systems for Home & Commercial establishments for use with different appliances; Solar Off Network / Grid connected Power Generation Systems and customized products tailor made to specific requirements. The New Energy Sector is equiped with advanced testing and manufacturing devices to cater with and excellent product line. We are capable of conducting a thorough Analysis & Evaluation of Raw Materials, Performance & Finished Products. Our products have been Certified by bodies such as: TUV, CGC, and CE.
