THE SYSTEM INCLUDES:
1) PV module: 60W-100W

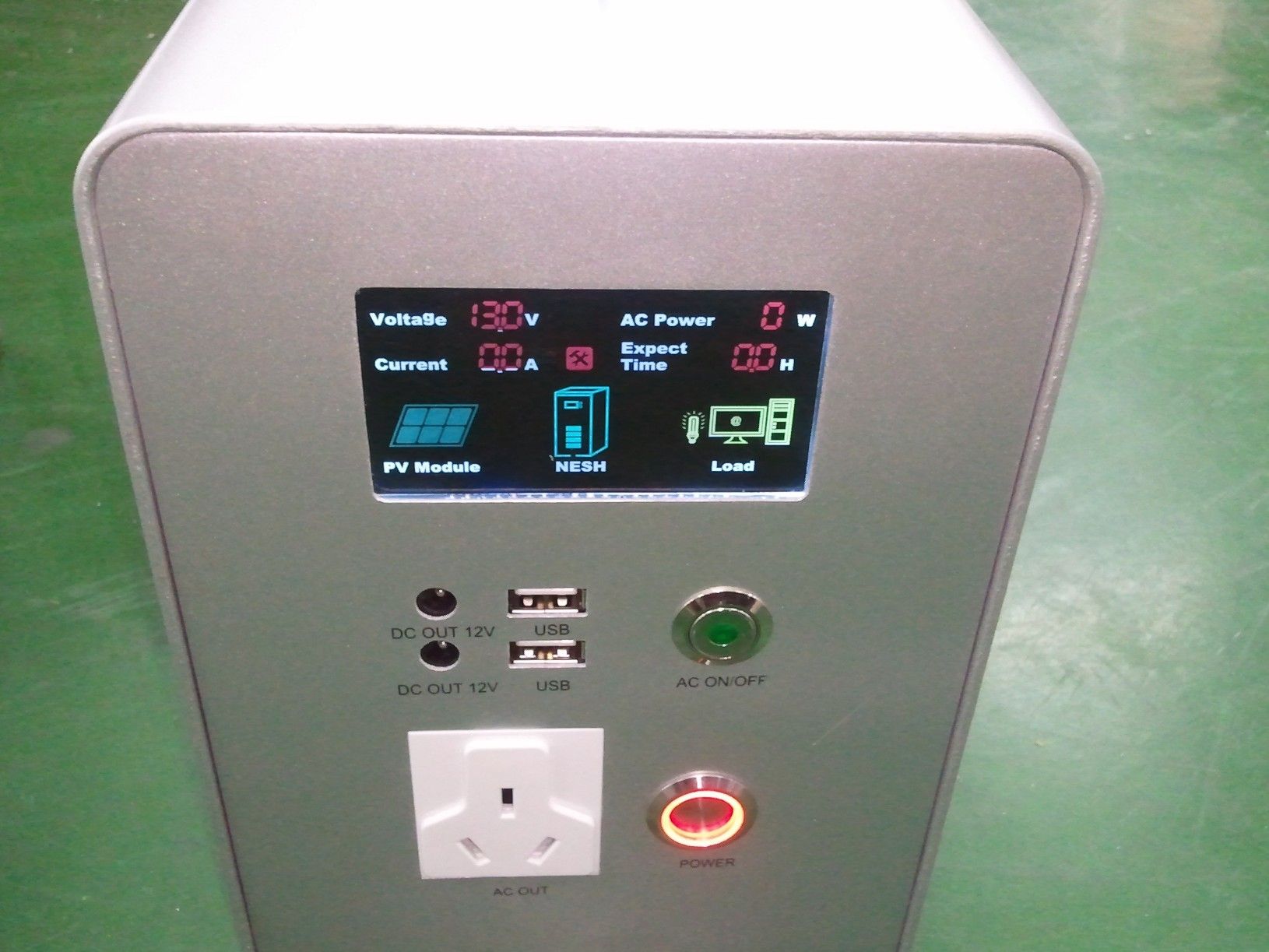

2) Control & inverter box, USB5V DC12V/AC110V or 220V, 200W output, pure sine wave:
3) 12V24AH sealed gel battery
4) Leakage protector, lightning arrester (optional)
5) High quality cables for connection
6) LED indicator shows system's working status
When no sunshine, solar panel impossible to charge cabinet battery, this portable system have 12V input, can allow grid-power charge this portable system battery full.
SUPPLY POWER TO FOLLOWING APPLIANCES:
Energy saving lamp
Electric fan
TV
Computer
|
NESH-200 |
|
System Technical data: |
|
Capacity |
200W |
|
System voltage |
12VDC |
|
Input |
DC |
17.2V DC |
|
AC |
---------- |
|
Output |
DC |
12V /2A |
|
AC |
110V /60HZ OR 220V 50HZ |
|
Rated Output Power (200W) |
200W |
|
Inverter |
Output wave |
sine wave |
|
Output voltage |
AC110V OR 220V |
|
Output frequency |
60HZ/50HZ |
|
Precision of output frequency |
± 6% |
|
Solar panel |
Pmax |
60W-100W |
|
Vmp |
17.5V |
|
Imp |
3.43A 5.71A |
|
Battery |
Capacity |
12V24AH |
|
Protection |
Overload, Short Circuit, Reverse Polarity (Fuse) Over / Low Input Voltage |
No. 36 Research Institute of CETC is A FIRST CLASS Scientific Research Institute engaged in Technical Research & Equipment Development in the fields of Communication & Specialized communication. Specialized Fields comprises of broadly as Signal processing, RF Power, Antennas, Software & Computer Application, Wired & Wireless Communication, Chip Board Electronics, Solar Panel & Systems, Solar Applications & Configuration, etc. Our R & D Center is rated as a 1st Class Center in China, with considerations towards Green Energy, Environment Protection coupled with most Advanced Scientific Equipments to assist our Research Facilities, Design & Development Methods. Our Testing Equipments & Machinery are from high quality manufacturers from around the world and also from within China. We also have the largest setup for the lowest frequency Anechoic Chamber in China. Our Computer Aided Design Center (CAD), Simulation Laboratory, Testing Centre, Precision Component Manufacturing Center are considered the best in the industry.
New Energy Sector is the primary division of No. 36 Research Institute, which specializes in Design, Development, Manufacture, and Distribution of High Quality Solar Modules & Solar Application System and offers Technology Services. The products include High Efficiency Mono Crystalline & Polycrystalline Solar Panel ranging between 10 Watts & 300 Watts; Solar Power Generation Systems for Home & Commercial establishments for use with different appliances; Solar Off Network / Grid connected Power Generation Systems and customized products tailor made to specific requirements. The New Energy Sector is equiped with advanced testing and manufacturing devices to cater with and excellent product line. We are capable of conducting a thorough Analysis & Evaluation of Raw Materials, Performance & Finished Products. Our products have been Certified by bodies such as: TUV, CGC, and CE.
