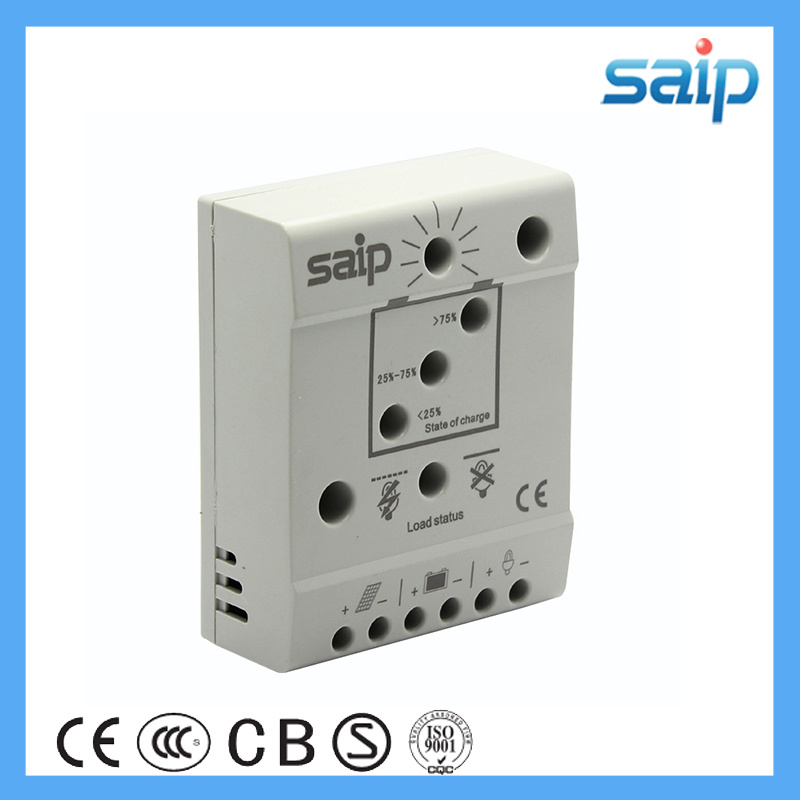

Solar Charge Controllers for Street Lamp (SML15)
1, 12V/24V, automatic recognition
2, CE, ROSH
3, PWM Solar Charge Controller
---Introduction
The SML series is a sophisticated solar charge controller family for low cost applications. The electronic circuit is equipped with a microcontroller that provides high-efficiency charging technology together with a number of outstanding status display, warning and safety functions.
The temperature-compensated three-stage PWM charging method (boost-equalization- float) is now adjustable to sealed and vented lead-acid batteries. The new version also allows an either SOC or voltage controlled low voltage disconnect function.
The battery status is clearly indicated by three LEDs.
As the first controller on the market in this price range it comes with an acoustic low voltage load disconnect pre-warning feature.
---Features
1. Battery State-of-Charge display with 3 LEDs.
2. Acoustic load disconnect pre-warning.
3. PWM-regulation (series type).
4. Boost, Equal ize and Float charging, also for VRLA.
5. Automatic 12/24 Volt detection.
6. Integrated temperature compensation.
7. Large terminals (up to 16mm2 wire size).
8. SOC and voltage control led LVD.
9. Fully electronical ly protected.
---Payment and transport
1) We accept T/T, Paypal, Western Union;
2) For sample, it's better via Paypal or Western Union;
3) For quantity order, we can go for T/T;
4) For small order, we usually transport by express like FedEx, DHL, TNT, EMS...
5) For big order, we can ship by air or by sea.
---Viewing of Saip Company
Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, productionand sales of electric equipments. Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equipment Capital of China".
We have 5 specialized branches, over 300 specialized cooperative partners. Saip, an ISO9001 certificated enterprise.
With 20 years of development history, Zhejiang Saip Electric Co., Ltd. Has become a modern enterprise integrating the production, sale with research.
If you have any question, please don't hesitate to let me know, thanks!
---Saip531/emma
Model |
SML05 |
SML08 |
SML10 |
SML15 |
SML20 |
SML25 |
Nominalvoltage: |
12/24V automatic recognition |
Max. module current |
5A |
8A |
10A |
15A |
20A |
25A |
Max. load current |
5A |
8A |
10A |
15A |
20A |
25A |
Boost voltage |
14.5V/29.0V |
Equalization voltage |
14.8V/29.6V |
Equal ization voltage |
13.7/27.4V |
Deep discharge protection |
11.4-11.9V/22.8-23.8V control led by statc of charge 11.0/22.0V control led by voltage |
Load reconnect voltag |
12.8/25.6V |
Temperature compensation |
-4mV/cel l*K |
Self consumption |
<4mA |
Max. wire size |
16mm ²(AWG#6) |
Dimensions(W×H×D) |
80*100*32mm(w*h*d) |
Weight |
220g |
Temperature range |
-20to+50°C |
Type of protection |
IP22 |
