Solar Charge Controller (SML NL15)1,12V/24V,automatic recognition
2, CE,ROSH
3,PWM Solar Charge Controller
1. Brief IntroductionThe SML series is a sophisticated solar charge controller family for low cost applications. The electronic circuit is equipped with a microcontroller that provides high-efficiency charging technology together with a number of outstanding status display, warning and safety functions.
The temperature-compensated three-stage PWM charging method (boost-equalization- float) is now adjustable to sealed and vented lead-acid batteries. The new version also allows an either SOC or voltage controlled low voltage disconnect function.
The battery status is clearly indicated by three LEDs.
As the first controller on the market in this price range it comes with an acoustic low voltage load disconnect pre-warning feature.

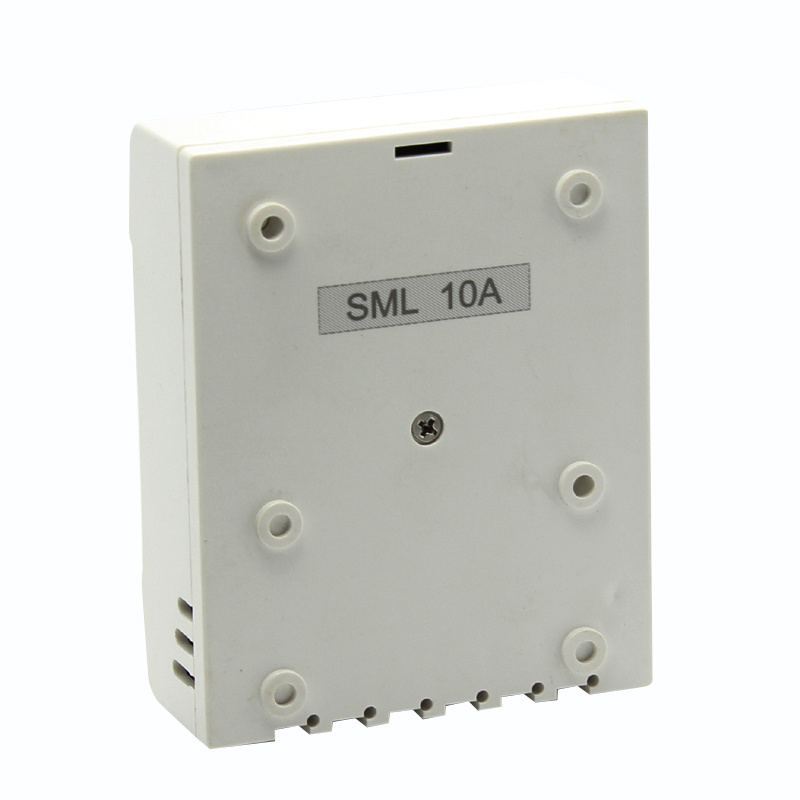

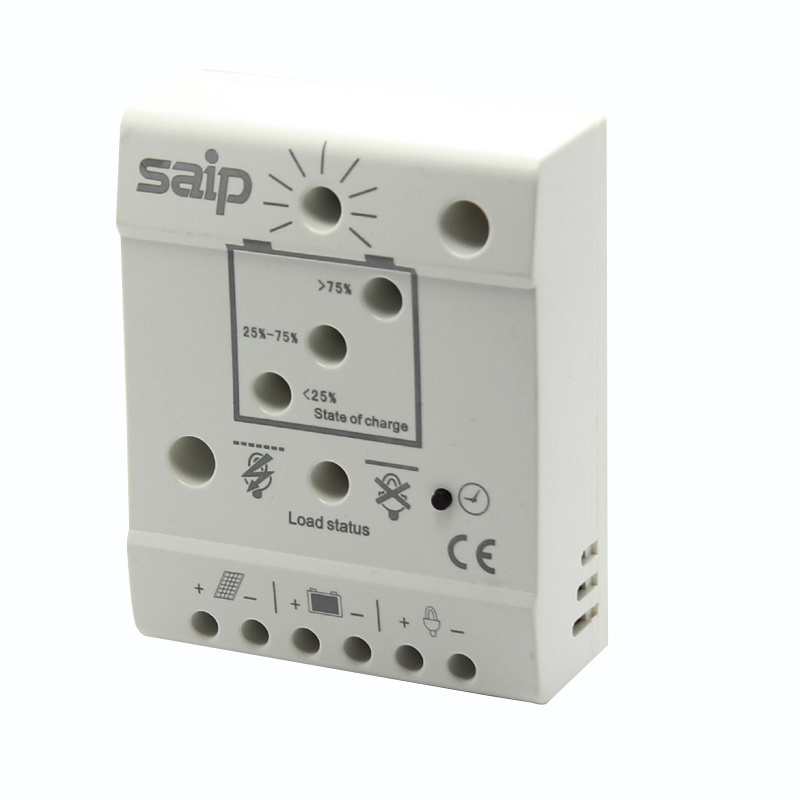

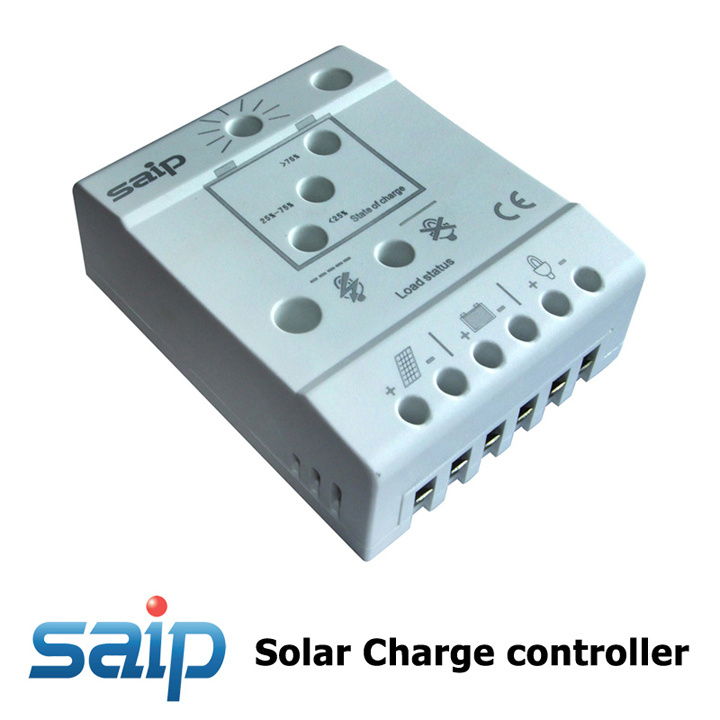

2. Product Show
3. ABOUT US SAIPWELL, as a professional manufacturer and supplier, is specialized in developing, producing electric equipments fitting all over the world. Our goal is to BUILD BEATIFIC PRODUCT
Please kindly contact with us freely. High quality,reasonable price,best service is offered to you.
Saip as always inherits "high quality and sincere service".
Saip - your successful cooperative partner!
|
Model |
SML05 |
SML08 |
SML10 |
SML15 |
SML20 |
SML25 |
|
Nominalvoltage: |
12/24V automatic recognition |
|
Max. module current |
5A |
8A |
10A |
15A |
20A |
25A |
|
Max. load current |
5A |
8A |
10A |
15A |
20A |
25A |
|
Boost voltage |
14.5V/29.0V |
|
Equalization voltage |
14.8V/29.6V |
|
Equal ization voltage |
13.7/27.4V |
|
Deep discharge protection |
11.4-11.9V/22.8-23.8V control led by statc of charge 11.0/22.0V control led by voltage |
|
Load reconnect voltag |
12.8/25.6V |
|
Temperature compensation |
-4mV/cel l*K |
|
Self consumption |
<4mA |
|
Max. wire size |
16mm ²(AWG#6) |
|
Dimensions(W×H×D) |
80*100*32mm(w*h*d) |
|
Weight |
220g |
|
Temperature range |
-20to+50°C |
|
Type of protection |
IP22 |
