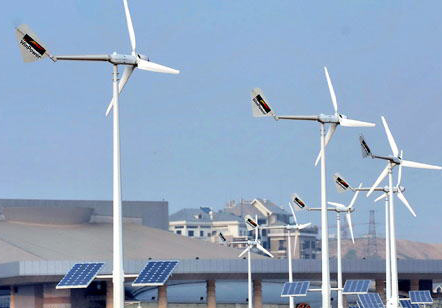

SRMW 500W is our small wind turbine with a mast height of 6-8 metres It produces approx. 1822kWh a year with an annual average wind speed of approx. 6 m/s.
Advantage/Main features:
1) CE approved and Cheap price
2) 20+ years lifetime
3) 2 year warrante
4) 5-year maintains free
5) Max. Output 700W
|
HAWT 500W |
|
RATED POWER |
500w |
|
MAX. POWER |
750w |
|
ROTOR DIAMETER |
2.5m ( 8.2ft) |
|
BLADE NUMBER |
3pcs |
|
CUT IN SPEED |
3m/s(6.7mph) |
|
RATED SPEED |
8m/s (17.8mph) |
|
MAX. WIND SPEED |
40m/s( 89mph) |
|
SWEPT AREA |
4.9m2 |
|
START TORQUE |
0.8n/m |
|
VOLTAGE OUTPUT |
24vdc-110/220vac at 50/60hz |
|
TOWER-UP WEIGHT |
45kg (99lb) |
|
GENERATOR |
Permanent-magnets ;3 phases; AC |
|
BLADES |
Polyester resin reinforced with fiber glass |
|
CONTROLLER |
Off-grid, or hybrid system |
|
INVERTER |
Efficiency ≈95%; Algorithm MPPT |
|
TOWER |
6m(20ft ) ; guy wire tower, free stand tower |
|
TYPE |
Up-wind horizontal rotor |
|
SPEED REGULATION |
Electromagnetic brake +Yawing |
|
STOP METHOD |
Electromagnetic brake |
|
NOISE |
23db from 60m with a wind speed of 8m/s(65yd and 17.8mph) |
|
ANNUAL PRODUCTION |
1069-2935kwh at5-7m/s(11.2-15.7mph) |
|
CO2 SAVED |
695-1908kg(1532-4206lb) |
|
ANTICORROSION PROTECTION |
Sealed design + e-coat + anodizing + UV resistant paint |
|
DESIGN |
According to EN61400-2 |
SRM Wind Power Company is a professional wind turbine generator manufacturer in China. Our company owns large number of professional wind generator technique manpowers. Advanced producing equipment and test appliance after 13 years of development, we have formed perfect service system include a blend of design, produce, installation, debugging, marketing and aftersale service, main produces minitype Horizontal and Vertical type wind generators, Hybria system.
