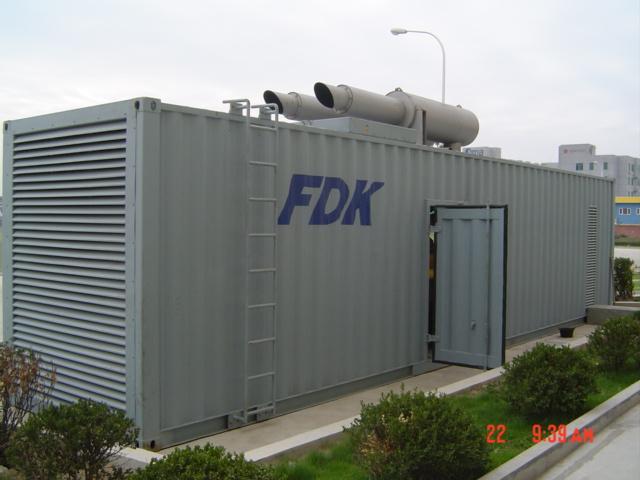

Soundproof Genset powered by Cummins Silent generator
Specifications:
1) Output range: 20kw(25KVA)-1000kw(1250KVA)
2) Engine model: Cummins Diesel engine(DCEC/CCEC)
3) Alternator: Stamford, Marathon series
4) Water-cooled.
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output
9) Standard configuration of gensets:
A) Engine: Perkins diesel engine
B) Engine type: Water-cooled, in line four-stoke, Humit cylinder liner, direct injection
C) Alternator: Famous brand brushless alternator
10) Control system:
A) Automatic alarm system: The unit has the acousto-optics alarm System and arrestor for any situation as the start defeat, the water Is over temperature, the oil pulls down, over speed, over load andOver current
B) Operation display:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible and visual alarm lamps and buzzers
11) Starting system: 20V DC alternator is used to start engine
12) Short circuit protection: MCCB switch
13) Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40 deg; C
14) Filter system: Oil, fuel and air filter
15) Accessories: Exhaust elbow, bellow, muffler
16) Supply standard collocation:
A) Diesel engine with all accessories, 3 filter, electric systems
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel
I) High-efficient silencer
