Speci: Silent diesel generator, silent generator, diesel generator, weahterproof, soundproof generator, engery saving generator

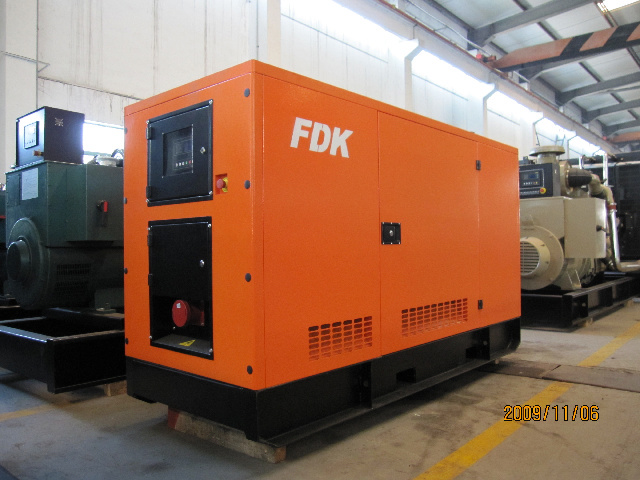

The latest developed sound-absorbing material is used in this type of soundproof gen set, the ventilation system of genset adopts circulating wind ducts which effectively reduce noise. Louvers are mounted on the canopy to resist rainwater and foreign substances. A particular high performance muffler is also adopted. The soundproof canopy has a combination structure inside whcih there are two doors for instrument and maintenance which allows easy installaiton. Because of the special design has been adopted, the noise for the soundproof genset whose power is at the middle rank can be reduced to 70dB(A)(at LP7m). According to the customers' requirements, a fuel tank can be installed.
Features:
High-prevent-corrosion materials;
Stainless steel lock and hinge;
Zinc-planting/stainless steel button;
Steel fabric, the surface was traded with phosphorus, and then sprayed with polyester powder
Easy to maintain;
The door was installed on both sides of the soundproof canopy; The door was supported by pneumatic spring-loaded doors; Outlet of lubrucants and cooling water drain-pipe was installed outside the box
Security protective measures;
The observation window of control screen can be installed on hte door of the switch
Movable nature, easily identifiable hoisting aperture;
Better protection devices for cooling fans and batteries;
First open the sidedoor then add fuel and replacement batteries; Silencer system is completely inside the soundproof;
Engine:
Brand: Cummins Model of Engine: MTAAII-G3
Cooling Mode: Water cooled with water tube and fan
Rotaiton: 1500rpm Over-speed Capacity: 120%
Overload Capacity: 110%
Alternator
Brand: Marathon Model of Alternator: MP-250-4
Wave Distort: Less than 10%
Electric System: 24V
Volt Fluctuation: <0.5% Volt/Freq fluctating: ≤ %1/0.5
Type: H-class insulation, IP22 protection, direct coupled, brushless, synchronous;
Controller System: GCM338 1). Controller has automatic engine shut down protection capability with LED indicator for low oil, high engine temperature overspeed and failure to start 2) Control panel contain voltmeter, ampere meter, tachometer, hour meter, frequency meter, circuit breakers, fuel level indicator, engine temperature gauge, charging gauge and MCCB
