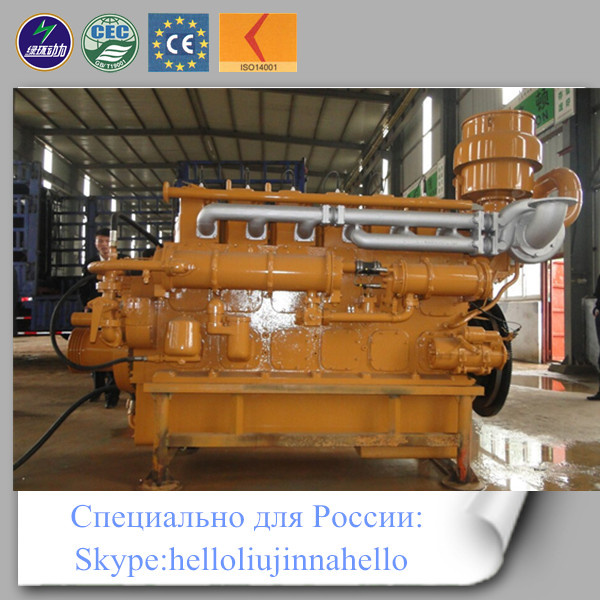

Silent Generator Set natural gas generator 300KW for Small factory electricity CE&ISO
At a distance of 1m from gas intake valve
**CH4 volume content≥70%
**Pressure :80~200kpa
**Pressure changing rate≤1kpa/min
**H2S≤20mg/Nm³
**Moisture content≤40mg/Nm³
Impurity particle size≤5um, Impurity content≤30mg/Nm³
If fuel gas contains higher quantity of sulfur and ammonia, it not only corrodes the pole of spark
plug seriously,but also increases the acid value, which corrodes internal parts of genset and
corrodes the genset with precipitates.
| Parameter of Natural Gas Generator Set: |
| Model Number (Engine Type) | LHNG300 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 240KW/300KW |
| Rated Speed | 1000/1200RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant consumption | ≤1.0g/kw.h |
| Engine Capacity | 32 L |
| Cylinder Number | 6 |
| Cylinder Bore | 190mm |
| Stroke | 210mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 5300x1970x2170mm |
| Weight | 8200kg |
Quality Control :
Every product must be through a strictly test before delivery.The items been tested on the
generating sets are mainly as follows: 1.Each genset is tested more than 4 hours totally.They
aretested on idle load,load,Fully load and 10% overload. 2.The noise level is tested. 3.Operation
ofthe various meters on the control panel is tested. 4.The generating set's appearance and all
marks are checked as well.
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
