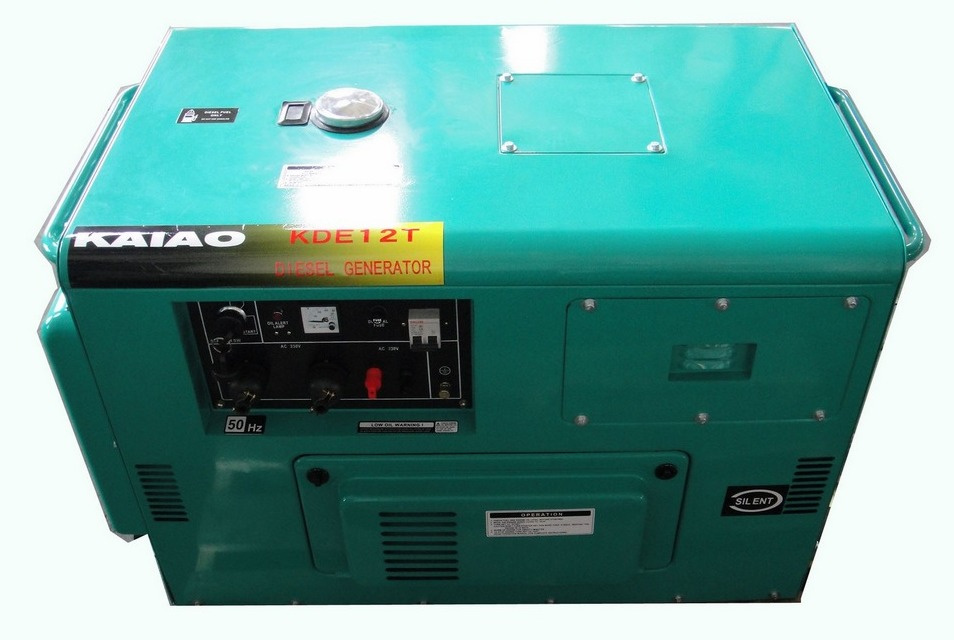

KDE12T/T3
Model KDE12T KDE12T3
Frequency(Hz) 50 60 50 60
Rate Power(kVA) 8.5 9.5 9.5 10.5
Max. Power(kVA) 9.5 10.5 10.5 11.5
Voltage(V) 115/230 120/240 230/400 240/416
Current(A) 73.9/36.9 79.2/39.6 13.7 14.6
Engine speed(r/min) 3000 3600 3000 3600
Phase Single 3-phase
Excitation system Self-excited constant voltage
Noise level (7m) 72
Fuel tank capacity (L) 25
Structure silent
Panel Oridinary
Output socket Two One single-phase, and one3-phase
Output terminal post No
DC12V output Terminal post
Net weight(kg) 245
Dimension(L*W*H) 1180*720*820
Engine Model KA840
Engine Type Double-cylinder, v-type, four-stroke, air-cooled, direct injection
Bore*stroke (mm) 2-86*72
Displacement (L) 0.836
Power (KW) 10.3/3000 11.3/3600
Fuel consumption rate (g. KW/h) <340 <340
Compression ratio 19
Lubrication system Spring
Engine starting system Type X: Recoil starter Type E: Electric starter
Diesel oil model Summer: 0#, Winter: -10#
Lube oil model L-ECD 15W30 OR 15W40
Lube oil capacity (L) 1.65
Battery capacity(V-AH) 12V-36Ah
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)
Air-cooled diesel generator light tower(400W-10000W)
Air-cooled gasoline generator (650W-5000W)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.
We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
