Home Generator Products 3kw 5kw 6kw Small Air Cool Portable Generator Diesel Generator 5kVA

3kw 5kw 6kw Small Air Cool Portable Generator Diesel Generator 5kVA

3kw 5kw 6kw Small Air Cool Portable Generator Diesel Generator 5kVA
Price: US $ 480/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 10/Piece
Pay Type: L/C,T/T

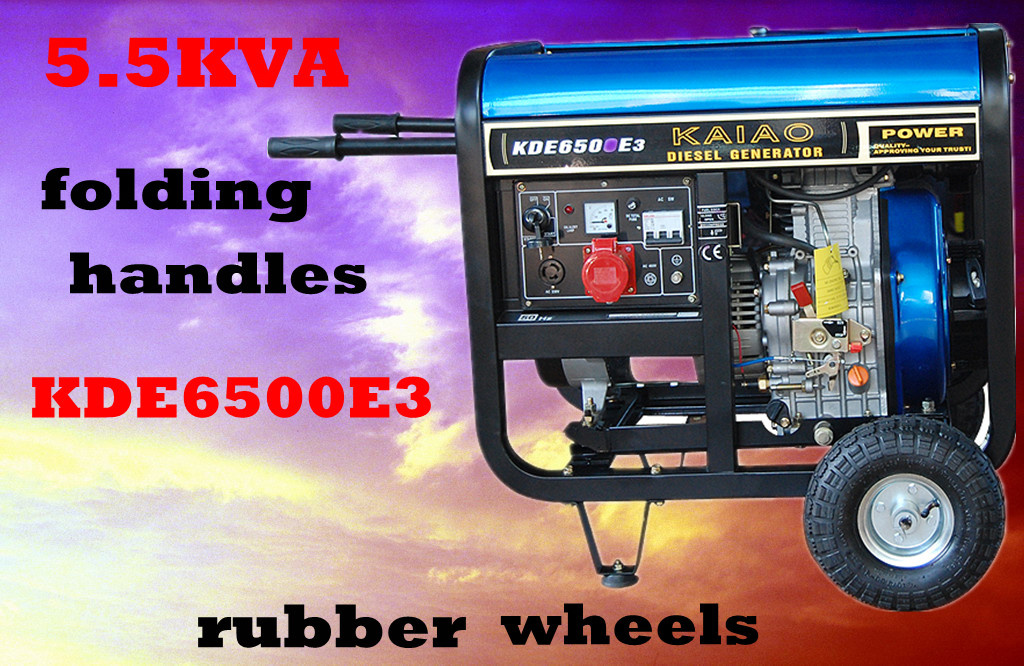

This series of portable diesel generator set are manufactured by Kaiao power.

Brief introduction:
Portable
Small scale, portable design with open-frame suit for many working conditions, such as camping, home, field...

More Silent
Equipe with high quality muffler, reduce some noise till 77dB, does not affact normal life and work. The generators cover with soundproof hood with completely closed construction attach sound absorption cotton to reduce the noise significantly, but also keep the rain, dust and water, rust, fire as well.

Feature
This one is the common type of this series, with AVR(Automatic Voltage Regulator)-which ensure steady voltage output and protect the machine against the over load-, low oil pressure alarm system, -which protect the machine from abrading-, also it can be installed by electric starting with storage battery.
Ground system is equipped to secure the human safety. ATS system ca automatically switch between main power and backup generator. Also it can be installed remote starter.
The enlarged all-in-one fuel tank lengthens the every run time.

Other
All the end of line connection are arranged orderly in the control panel make maintence more convenient.
Clear panel and customized sockets, is easy for operating.
This series are certificated with CE, ISO9001.
Diesel  generator  set  KDE6500E3
  ModelKDE6500E3
Frequency  (Hz)5060
Output  power  (KVA)5.56.3
Max.   Power(KVA)6.16.9
Voltage  (V)400416
Current  (A)8.38
Engine  speed  (r/min)30003600
Phase3
Power  factor(cosφ )1
Excitation  systemSelf-excited  constant  voltage
Noise  level  (7m)DB  (A):   75
Fuel  tank  capacity  (L)12.5
StructureOpen Frame
PanelOrdinary
OutputsocketTwo
DC12V  outputTerminal  post
Engine  ModelKA186FA
Bore*stroke  (mm)  86  *72
Displacement  (L)0.418
Power  (KW)5.7/3000  6.3/3600
Fuel  consumption  rate  (g.   KW/h)275.1281.5
Compression  ratio19
Lubrication  systemSpring
Engine  starting  systemElectric  starter
Diesel  oil  model  Summer:   0#,   winter:   -10#
Lube  oil  modelSAE10W-30  (above  CD  grade)
Lube  oil  capacity  (L)1.65
Battery  capacity(V-AH)12V-36Ah
Net  weight  (KG)158
Dimension(L*W*H)912× 532× 740
Prod Model: KDE6500E3
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: 230/240V
Rate Power: 5.5/6.3kw
Phase: 3
Noise Level: 75dB(a)
Dimention: 760*515*710mm
Net Weight: 100kg
Structure: Silent/Trolley
Start Type: Electric
AVR: Yes
Shut Down Protection: Yes
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Air Cooled
Output Type: AC Single Phase
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:

Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),

Air-cooled diesel generator set(2KW--8.5KW)

Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)

Air-cooled diesel generator light tower(400W-10000W)

Air-cooled gasoline generator (650W-5000W)

Water-cooled Diesel Generator(10kw-100kw),

Water pump unit(2 '', 3 '', 4 '')

Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.

Electric welding set, construction machinery, and gardenging machinery, etc.

Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.

We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.

Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
