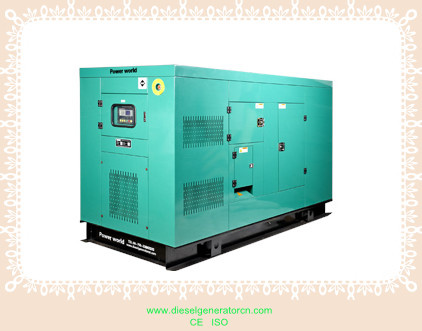

40kw cummins genset
8 hours base tank
50 degree radiator
Low noise genset
Type: Diesel generator set
40kw cummins genset
Generator Supply Scope:
1. Engine, alternator, radiator, auto control panel.
2. Base frame, base fuel tank, Flexible pipes, flange, exhaust silencer.
3. Battery, battery charger, battery wires, internal cables, circuit breaker.
4. Manual books of engine, alternator, genset, control panel, wires diagram.
ENGINE DATA:
Manufacturer
Dongfeng Cummins Engine Company Ltd.
Model
4BTA3.9-G2
Engine speed
1500rpm
Engine power
--------------------Standby power
55kw /74HP
--------------------Base output power
50kw / 67HP
Air intake way
After-cooled, Turbo-charged
Cylinder quantity
4
Bore * Stroke
102*120mm
Displacement
3.9L
Fuel system
A pump_ RSV mechanical
Speed-droop
5%
Low idle
950-1050 rpm
Piston speed
6.0 m/s
Friction energy output
8.2 kw
ALTERNATOR GENERAL DATA:
Manufacturer / Model
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Model
LSA43.2 M45
Output power
48KW
AVR model
R250
Number of phase
3
Power factor (Cos Phi)
0.8
Altitude
≤ 1000 m
Overspeed
2250RPM
Number of Pole
4
Exciter type
Shunt
Insulation class
H
Voltage regulation
± 0.5%
Sustained short circuit current
300% (3 IN): 10s
Total harmonics (TGH/THC)
< 4 %
Wave form: NEMA = TIF
< 50
Wave form: i. e. C. = THF
< 2%
Bearing
Single
Coupling
Direct
Other Optional part:
Silent canopy, movable trailer, ATS, synchronization system, etc.
