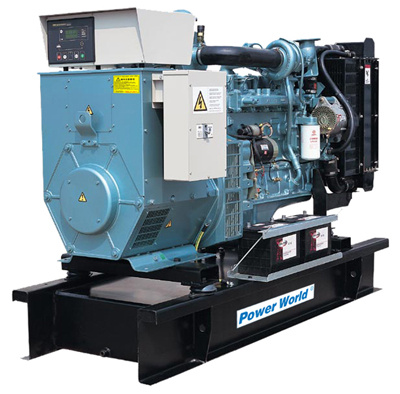

POWER WORLD power generator sets are powered by famous Engines like Cummins, Deutz, Perkins, Volvo, Yanmar, Doosan Daewoo. And the power range of our gensets are from 6.4KW/8KVA to 2000KW/2500KVA. Cummins Series Diesel Generator Set powered by CUMMINS engine power ranging from 20kw -1000kw. These CUMMINS power diesel engines range very adequately cover a wide variety of automotive applications, including pick up trucks, medium and heavy-duty trucks, buses, also industrial and construction equipment, generator sets, marine and agricultural machinery.
As the largest foreign diesel generator engine investors of China, Cummins possess Chongqing Cummins Engine Co., Ltd ( produce M, N, K series engine) and Dongfeng Cummins Engine Co., Ltd( produce B, C, L series engine) and produce CUMMINS engines with globally uniform quality standard.
We pride ourselves in providing the best CUMMINS diesel generators available in the world market today.
Cummins Diesel Generator main features:
Cummins water cooled diesel engine
Eletric starter& Charger altimeter 24v DC
Electronic governor
Single bearing alternator,
1500rmp, 50Hz or 1800rmp, 60Hz, 400/230V
Exciter/Voltage reg-Torque Match as standard
3-circuit breaker
Welding steel bas with vibration block base
Silencer
Starting storage battery
Contract plastic film for package
Manual and machinery description
Open type, soundproof/weatherproof canopy are optional
| Power World CUMMINS power generator setsTechnical Data (50HZ) |
| Genset Type | Frequency 50Hz Power Factor0.8 (delay)400V 3Phase 4Wire | Rate Fuel Consumption | Cummins Series Engine Model(1500rpm) Engine | Open frame Dimension(mm) L *W*H | N.W. (kg) |
| Prime Power | Standby Power | Diesel (L/h) |
| (KW) | (KVA) | (KW) | (KVA) |
| PC22 | 20 | 25 | 22 | 27.5 | 5.5 | 4B3.9-G2 | 1850 *850*1100 | 900 |
| PC33 | 30 | 37.5 | 33 | 41.25 | 9 | 4BT3.9-G2 | 1850 *850*1100 | 1000 |
| PC45 | 40 | 50 | 45 | 56 | 12 | 4BTA3.9-G2 | 1850 *850*1100 | 1100 |
| PC55 | 50 | 62.5 | 55 | 68 | 14 | 6BT5.9-G2 | 2150 *850*1100 | 1200 |
| PC64 | 58 | 72.5 | 64 | 80 | 17 | 6BT5.9-G2 | 2150 *850*1100 | 1250 |
| PC77 | 70 | 87.5 | 77 | 96 | 19 | 6BT5.9-G2 | 2280 *850*1100 | 1300 |
| PC82 | 75 | 93.75 | 82 | 102.5 | 21 | 6BT5.9-G2 | 2280 *850*1100 | 1350 |
| PC88 | 80 | 100 | 88 | 110 | 23 | 6BT5.9-G2 | 2280 *850*1100 | 1400 |
| PC100 | 90 | 112.5 | 100 | 125 | 26 | 6BTA5.9-G2 | 2400 *830*1120 | 1550 |
| PC114 | 104 | 130 | 114 | 142.5 | 30 | 6BTAA5.9-G2 | 2400 *830*1120 | 1700 |
| PC132 | 120 | 150 | 132 | 165 | 36 | 6CTA8.3-G | 2650 *950*1300 | 2100 |
| PC154 | 140 | 175 | 154 | 192.5 | 40 | 6CTA8.3-G2 | 2650 *950*1300 | 2150 |
| PC165 | 150 | 187.5 | 165 | 206 | 42 | 6CTA8.3-G2 | 2650 *950*1300 | 2200 |
| PC176 | 160 | 200 | 176 | 220 | 44 | 6CTAA8.3-G2 | 2650 *1150*1300 | 2300 |
| PC200 | 200 | 250 | 220 | 275 | 50 | 6LTAA8.9-G2 | 3000*980*1530 | 3100 |
| PC220A | 200 | 250 | 220 | 275 | 55 | MTA11-G2A | 3150*990*1777 | 2800 |
| PC220B | 200 | 250 | 220 | 275 | 55 | NT855-GA | 3000*980*1530 | 3100 |
| PC250 | 228 | 285 | 250 | 312.5 | 65 | NTA855-G1A | 3100*980*1530 | 3200 |
| PC275 | 250 | 312.5 | 275 | 343 | 70 | NTA855-G1B | 3150*980*1530 | 3250 |
| PC280 | 250 | 312.5 | 280 | 350 | 70 | MTAA11-G3 | 3000*1000*1600 | 3000 |
| PC286 | 260 | 325 | 286 | 357.5 | 72 | NTA855-G2A | 3150*980*1530 | 3300 |
| PC310A | 280 | 350 | 310 | 387.5 | 76 | NTA855-G2A | 3150*980*1530 | 3400 |
| PC310B | 280 | 350 | 310 | 387.5 | 78 | NTA855-G4 | 3150*980*1530 | 3500 |
| PC330A | 300 | 375 | 330 | 412.5 | 83 | NTAA855-G7A | 3220*1380*1550 | 3600 |
| PC330B | 300 | 375 | 330 | 412.5 | 83 | KTA19-G2 | 3300*1250*1800 | 4200 |
| PC360 | 320 | 400 | 360 | 450 | 86 | NTAA855-G7A | 3300*1380*1550 | 3700 |
| PC400 | 360 | 450 | 400 | 500 | 97 | KTA19-G3 | 3550*1250*1800 | 4350 |
| PC440 | 400 | 500 | 440 | 550 | 107 | KTA19-G4 | 3550*1250*1800 | 4800 |
| PC500 | 450 | 562.5 | 500 | 625 | 117 | KTAA19-G5 | 3750*1920*2300 | 5000 |
| PC520 | 460 | 575 | 520 | 650 | 123 | KTAA19-G6 | 3750*1920*2300 | 5400 |
| PC550A | 500 | 625 | 550 | 687.5 | 130 | KTAA19-G6A | 3750*1920*2300 | 5400 |
| PC550B | 500 | 625 | 550 | 687.5 | 140 | KT38-G | 4600*1630*2320 | 8600 |
| PC620 | 560 | 700 | 620 | 775 | 156 | KTA38-G2 | 4650*1630*2320 | 8950 |
| PC660 | 600 | 750 | 660 | 825 | 167 | KTA38-G2 | 4650*1630*2320 | 8950 |
| PC704 | 640 | 800 | 704 | 880 | 170 | KTA38-G2A | 4650*1630*2320 | 9250 |
| PC800 | 728 | 910 | 800 | 1000 | 194 | KTA38-G2A | 4600*1630*2320 | 9450 |
| PC880 | 800 | 1000 | 880 | 1100 | 212 | KTA38-G5 | 4850*1830*2400 | 9650 |
| Power World CUMMINS Generator Set Technical Data (60HZ) |
| Genset Type | Frequency 60Hz Power Factor0.8 (delay)400V 3Phase 4Wire | Rate Fuel Consumption | Cummins Series Engine Model(1800rpm) | Open frame Dimension(mm) | N.W. (kg) |
| Prime Power | Standby Power | Diesel (L/h) | Engine |
| (KW) | (KVA) | (KW) | (KVA) | L *W*H |
| P22C-60 | 20 | 25 | 22 | 27.5 | 6 | 4B3.9-G2 | 1600 *830*1300 | 950 |
| P26C-60 | 24 | 30 | 26 | 32.5 | 7.2 | 4B3.9-G2 | 1800 *830*1300 | 950 |
| P36C-60 | 32 | 40 | 36 | 45 | 9.6 | 4BT3.9-G2 | 1800 *830*1300 | 1000 |
| P45C-60 | 40 | 50 | 45 | 56 | 12 | 4BT3.9-G2 | 1850 *830*1300 | 1000 |
| P55C-60 | 50 | 62.5 | 55 | 69 | 14 | 4BTA3.9-G2 | 1950 *830*1300 | 1250 |
| P60C-60 | 56 | 70 | 60 | 75 | 16 | 4BTA3.9-G2 | 2150 *830*1430 | 1300 |
| P77C-60 | 70 | 87.5 | 77 | 96 | 19 | 6BT5.9-G2 | 2150 *830*1430 | 1350 |
| P88C-60 | 80 | 100 | 88 | 110 | 23 | 6BT5.9-G2 | 2350 *950*1430 | 1350 |
| P100C-60 | 90 | 112.5 | 100 | 125 | 26 | 6BT5.9-G2 | 2350 *950*1430 | 1400 |
| P110C-60 | 100 | 125 | 110 | 137.5 | 30 | 6BTAA5.9-G2 | 2650 *950*1600 | 1750 |
| P132C-60 | 120 | 150 | 132 | 165 | 36 | 6BTAA5.9-G2 | 2650 *950*1600 | 1800 |
| P154C-60 | 140 | 175 | 154 | 192.5 | 40 | 6CTA8.3-G2 | 2650 *950*1600 | 1900 |
| P176C-60 | 160 | 200 | 176 | 220 | 44 | 6CTA8.3-G2 | 2650 *950*1600 | 2000 |
| P200C-60 | 180 | 225 | 200 | 250 | 48 | 6CTAA8.3-G2 | 2650 *950*1600 | 2200 |
| P220C-60 | 200 | 250 | 220 | 275 | 54 | NTA855-G1 | 2850 *9501600 | 2600 |
| P250C-60 | 228 | 285 | 250 | 312.5 | 62 | NTA855-G1 | 2850 *950*1600 | 2750 |
| P275C-60 | 250 | 312.5 | 275 | 344 | 70 | NTA855-G1 | 2850 *1000*1600 | 2900 |
| P310C-60 | 280 | 350 | 310 | 387.5 | 76 | NTA855-G2 | 3000 *1000*1600 | 3100 |
| P330C-60 | 300 | 375 | 330 | 412.5 | 83 | NTA855-G3 | 3000 *1000*1600 | 3250 |
| P360C-60 | 320 | 400 | 360 | 450 | 90 | NTA855-G3 | 3000 *1000*1600 | 3250 |
| P400C-60 | 360 | 450 | 400 | 450 | 97 | KTA19-G2 | 3400 *1200*1900 | 4000 |
| P440C-60 | 400 | 500 | 440 | 550 | 107 | KTA19-G3 | 3400 *1860*1900 | 4300 |
| P500C-60 | 460 | 575 | 500 | 625 | 118 | KTA19-G4 | 3400 *1200*1900 | 4800 |
| P560C-60 | 500 | 625 | 560 | 700 | 132 | KTAA19-G5 | 3800 *1860*1900 | 5000 |
| P600C-60 | 560 | 700 | 600 | 750 | 150 | KTAA19-G7 | 4000 *1700*2100 | 5400 |
| P660C-60 | 600 | 750 | 660 | 825 | 167 | KT38-G | 4600 *1650*2400 | 8600 |
| P750C-60 | 680 | 850 | 750 | 937.5 | 185 | KTA38-G2 | 4600 *1800*2400 | 8950 |
| P800C-60 | 728 | 910 | 800 | 1000 | 194 | KTA38-G2 | 4600 *1800*2400 | 8950 |
| P920C-60 | 840 | 1050 | 920 | 1150 | 212 | KTA38-G4 | 4800 *1800*2400 | 9650 |
| P1000C-60 | 900 | 1125 | 1000 | 1250 | 230 | KTA38-G4 | 4800 *1800*2400 | 9650 |
| | | | | | | | | | | |
Power World Machinery Equipment Co., Ltd. is a manufacturer in shenzhen, China. We are specialized in manufacturing diesel generator set of which power is from 8KW/10kVA to 2000KW/2500kVA, with the best staff and the frist-rate work environment, we can supply the high-quality and competetive price products to our customers home and abroad.
We have developed a good cooperation with some world famous engine and alternator manufacturers, such as the USA Cummins, Britain Perkins, DongFeng Cummins, ChongQing Cummins, Lovol-Perkins, Deutz, Daewoo, Huachai(China), Shangchai(China). In 2000, Power World has been approved as the authorized OEM partner of Britain Perkins in China.
In 2001, Power World passed the certificate of ISO9001: 2000 international quality system. "share in cooperation, deal in honesty" is our strong working principle, Power World is looking forward to establishing business relationship with you!
