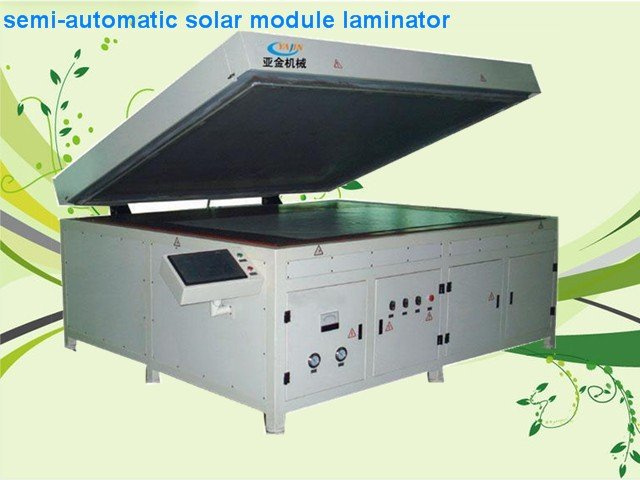

Effective lamination area: 2200mm*1100mm
Main technical parameters:
Voltage of supply: 380V/3phases/5wires: Normal working power: 12~20KW
Gas source requirements: 0.8 ~ 1.2MPa
: Flux rate of vacuum pump: 30L/S
Laminating height: 20mm: Laminating pressure: 0.02~0.1Mpa
Highest temperature of hot plate: 180° C: Uniformity of temperature: ± 1° C
Performance Characteristic
1. Flexible working patterns, auto and manual patterns shift.
2. PLC control and touch-screen display. Set the technological parameter according to the different technological requirements of solar module. Good working stability.
3. Adopt the controlling technology of a multi-point temperature to ensure temperature uniformity, reduce the rate of debris.
4. Emergency Response System and Emergency Opening System, ensuring the safety and reliability of the equipments.
5. Customize equipment specification to customers' specific requirements.
Shenzhen chang xing yong ming co. Ltd & shenzhen chang xing hua ming solar PV technology co. Ltd is located in shenzhen, guangdong province--the forefront of reform and opening in China. Our company specializes in solar energy power generation. It integrates manufacturing, scientific research and operation into one and owns the top ranking technology and a batch of excellent talents.
We have made a huge investment in researching and exploring the solar PV technology and after a long process of development and growth, we finally made significant progress. We have already completed the construction of manufacturing base for laminator and solar module production in chang xing, zhejiang province. The series of products we launched now include automatic solar module laminator, semi-automatic solar module laminator, solar module tester, solar cell sorter, monocrystalline silicon solar panels, polycrystalline silicon solar panels and amorphous- silicon solar panels. After used by well-known enterprises, our product quality has reached the advanced level of same sort products at home and abroad, which won high commercial reputation for us. Our company is determined to make a contribution to the solar PV cause in our country and to the world.
