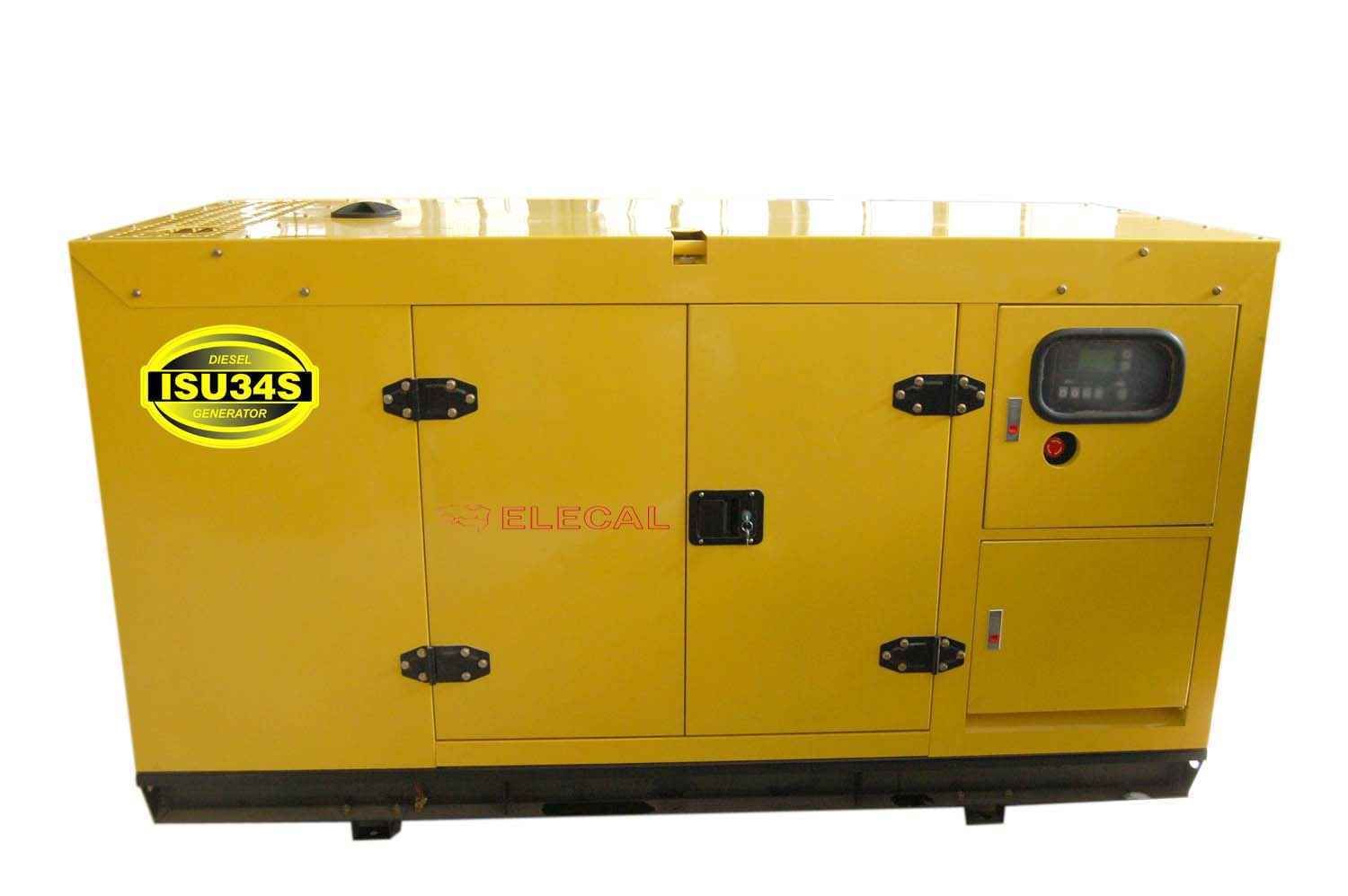

Sandard Soundproof Diesel Generator Sets
| 3PH,50HZ&60HZ |
| Specificaton 50Hz 400/230V(1)/60Hz 480/277V(2) | Engine Specification | Compact Version |
| Genset Type | Continuous Output | Standby Output | Fuel Comsuption 100%(L/h) | Engine Type | Cyl.of Cylinders | Alternator | Dimensions(mm) | Weight(kg) |
| KW | KVA | KW | KVA | Model | Output(KW) |
| CHF10S | 8 | 10 | 9 | 11 | 2.4L | CSAD380 | 3 | CH164B | 8 | 1780X750X1050 | 750 |
| CHF13S | 10 | 13 | 11 | 16 | 3.0L | CD480 | 4 | CH164C | 10 | 1780X750X1050 | 760 |
| CHF15S | 12 | 15 | 13 | 18 | 3.5L | CND485 | 4 | CH184D | 12 | 1780X750X1050 | 800 |
| CHF19S | 15 | 19 | 16 | 23 | 4.4L | CSD490 | 4 | CH184E | 15 | 1780X750X1050 | 800 |
| CHF25S | 20 | 25 | 22 | 31 | 5.9L | C4100 | 4 | CH184F | 20 | 2100X800X1100 | 1000 |
| CHF30S | 24 | 30 | 26 | 37 | 7.1L | C4102 | 4 | CH184G | 24 | 2100X800X1100 | 1040 |
| CHF38S | 30 | 38 | 33 | 47 | 9.0L | C4100ZLG | 4 | CH184H | 30 | 2100X850X1200 | 1000 |
| CHF50S | 40 | 50 | 44 | 62 | 11.9L | C4105ZD | 4 | CH186J | 40 | 2300X1000X1260 | 1100 |
| CHF63S | 50 | 63 | 55 | 78 | 14.9L | C4105ZD | 4 | CH188J | 50 | 2300X1000X1260 | 1100 |
| CHF88S | 70 | 88 | 77 | 110 | 20.9L | C6105ZD | 6 | CH190J | 70 | 2355*1150*1350 | 1550 |
| CHF113S | 90 | 113 | 99 | 141 | 26.8L | C610AZD | 6 | CH191J | 90 | 2530*1200*1355 | 1650 |
| CHF125S | 100 | 125 | 110 | 156 | 28.9L | C6105ZLD | 6 | CH192J | 100 | 2530*1200*1350 | 1700 |
| CHF150S | 120 | 150 | 132 | 187 | 35.8L | C6113ZLD | 6 | CH193J | 120 | 2600*1200*1450 | 1850 |
| CHF188S | 150 | 188 | 165 | 206 | 44.8L | C137LR22 | 6 | CH195J | 150 | 3000x1200x1550 | 1900 |
| CHF225S | 180 | 225 | 198 | 247 | 53.7L | C144LU25 | 6 | CH196J | 180 | 3100x1250x1550 | 2050 |
| CHF250S | 200 | 250 | 220 | 275 | 59.7L | C151LU30 | 6 | CH198J | 200 | 3100x1250x1550 | 2100 |
| CHF312S | 250 | 312 | 275 | 343 | 74.6L | CJ258ZA33 | 6 | CH200J | 250 | 3300x1250x1680 | 2200 |
| CH375S | 300 | 375 | 330 | 412 | 89.6L | C271ZW40 | 6 | CH201J | 300 | 3400x1280x1780 | 2500 |
Fuzhou Changhua Power Machinery Co., Ltd. Is engaged in research, development, manufacture and selling in various kinds of alternator, engine, generator, water pump. The company with 8, 000 m2 workshop and employs more than 200 staff workers, among which 30 are engineers or technicians. It operates an advanced production line with whole set of inspection and testing equipment and a
Yearly capacity of 200, 000 sets of machines. The company put through EPA, CE, SONCAP and ISO9001, Certificate.
"Reputation is the first, Consumers are supreme"is our persistent working tenet. We have and will serve the consumers with high quality, reasonable price, perfect service and flexible working way.
