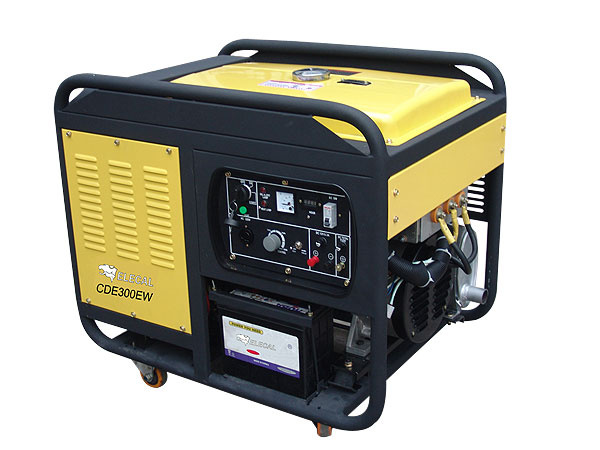

3 phase two cylinder diesel welder generator
| Model | CDE300EW3 |
| Rated frequency (Hz) | 50 60 |
| Rated power(kW) | 7.5 7.5 |
| Rated voltage (V) | 400/230 416/240 |
| Rated current (A) | 10.8 10.4 |
| No.of phase | There phase,for wire"Y"connection |
| Power factor (cosφ) | 0.8(lag) |
| Weldling voltage at zero load (DC)(V) | 70-75 |
| Rated weldling current DC(A) | 280 |
| weldling voltage(DC)(V) | 25-30 |
| Weldling load continous ratio | 60% |
| Weldlig current adjustment range(A) | 55-300 |
| Electrode φ(mm) | 2.0-6.0 |
| Rated speed (r/min) | 3000 3600 |
| Excitation mode | Self-excitation constant voltage (AVR) |
| Recifying mode | IGBT+three-phase rectifying bridge (PWM) |
| Insulation grade | F |
| Pole number | 2 |
| Engine model | R2V870 |
| Engine type | Two-cylinder,V-twin,four-stroke, air-cooled |
| Displacement (ml) | 875 |
| Bore x stroke (mm) | 88×72 |
| Compression ratio | 20 |
| Rated power kW/(r/min) | 13/3000 14/3600 |
| Fuel type | 0#(summer),-10#(winter),-35#(chill cold)light diesel |
| Lube oil brand | SAE10W30(CD Grade above) |
| Fuel consumption (g/kW.h) | 298 |
| Fuel tank capacity (L) | 25 |
| Continous running time (hr) | 7 |
| Overalldimension (mm)(L×W×H) | 870×630×800 |
| Net weight (kg) | 239 |
| Starting system | Electric start |
Fuzhou Changhua Power Machinery Co., Ltd. Is engaged in research, development, manufacture and selling in various kinds of alternator, engine, generator, water pump. The company with 8, 000 m2 workshop and employs more than 200 staff workers, among which 30 are engineers or technicians. It operates an advanced production line with whole set of inspection and testing equipment and a
Yearly capacity of 200, 000 sets of machines. The company put through EPA, CE, SONCAP and ISO9001, Certificate.
