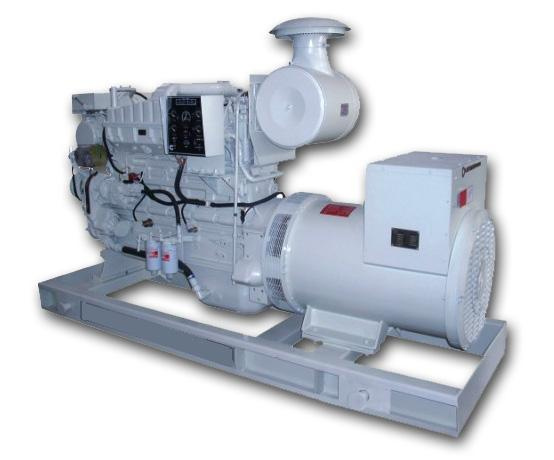

The Marine Generator Sets Powered by Cummins Engine
30-900kW marine generator sets which adopts the American cummins series marine diesel engine(CCS Certificate), equipped with some famous brushless excitation alternators. (Marathon, Stamford, etc. )
The diesel generator set has auto protective device, it can control and protect the water temperature, oil temperature, oil pressure, and the speed.
It has many advantages such as automatic speed regulation, automatic voltage regulation, good dynamic performance, stable fluctuation form of voltage, high efficiency, excellent reliability, long service life, etc.
It can provide other Marine Classification Society Approval if needed.
Genset
Model
| Engine
Model
| Alternator
Model
| Power Output
| Cylinders
| Bore x Stroke (mm)
| Fuel Consumption
(L/kwh)
| Lubricant Capability
(L)
| Dimension
(mm)
| Net Weight
(kg)
|
50Hz
| L
| W
| H
|
kW
| kVA
|
RMS-75MC
| 6BT5.9-GM80
| MP-H-75-4
| 75
| 94
| 6
| 102X120
| <18
| 30
| 2200
| 970
| 1580
| 1650
|
RMS-120MC
| 6CTA8.3-GM155
| MP-H-120-4
| 120
| 150
| 6
| 114X135
| <30
| 30
| 2200
| 970
| 1580
| 1750
|
RMS-250MC
| NTA855-G2M
| MP-H-250-4
| 250
| 313
| 6
| 140X152
| <60
| 40
| 3100
| 1000
| 1583
| 3300
|
RMS-350MC
| KTA19-G3M
| MX-H-350-4
| 350
| 438
| 6
| 159X159
| <84
| 50
| 3400
| 1030
| 1913
| 4800
|
RMS-400MC
| KTA19-G4M
| MX-H-400-4
| 400
| 500
| 6
| 159X159
| <96
| 50
| 3400
| 1030
| 1913
| 4900
|
RMS-500MC
| KT38-GM
| MX-H-500-4
| 500
| 625
| 12
| 159X159
| <120
| 55
| 4500
| 1540
| 2164
| 8510
|
RMS-600MC
| KTA38-G2M
| MX-H-600-4
| 600
| 750
| 12
| 159X159
| <145
| 55
| 4500
| 1540
| 2164
| 8620
|
RMS-800MC
| KTA38-G5M
| MX-H-800-4
| 800
| 1000
| 12
| 159X159
| <193
| 55
| 4500
| 1540
| 2164
| 8800
|
Guangzhou Wity Inc. Was established in 2004, with its headquarters in Guangzhou, China, which is subsidiary company with an independent legal entity of Wity Group. China. Our factory is located in Economic Development Zone, Guangzhou, which was formerly known as Rui'an Marine Generator Equipment Factory, which was one of the pioneer of generator sets business in China.
At present, we have a modern factory which covers 18, 000 square meters, and can mass produce various generator sets from 15kw to 1500kw, such as soundproof gensets, trailer mounted gensets, vehicle carried gensets, automatic parallel control panel, auto transfer switch panel(ATS), high voltage gensets, marine gensets with Marine Classification Society Approvals(CCS, BV and etc. )
We have set up a long-term cooperation relationships with several worldwide famous engine and alternator manufacturers since 2005. Our factory was appointed as the OEM factory of Cummins (Sino-American), Volvo Penta (Sweden), Perkins (UK), Doosan Daewoo (Korea), Marathon (Sino-American), Stamford (UK), LEC (China), Shanghai Diesel (China), Wuxi Diesel (China), JiNan Diesel (China).
We always insists that quality and service is the principle of us. We stand in the market with "quality first, service first, reasonable price ", we win customers with " timely, thoughtful and fast service ".
We sincerely welcome customers from all over the world!
