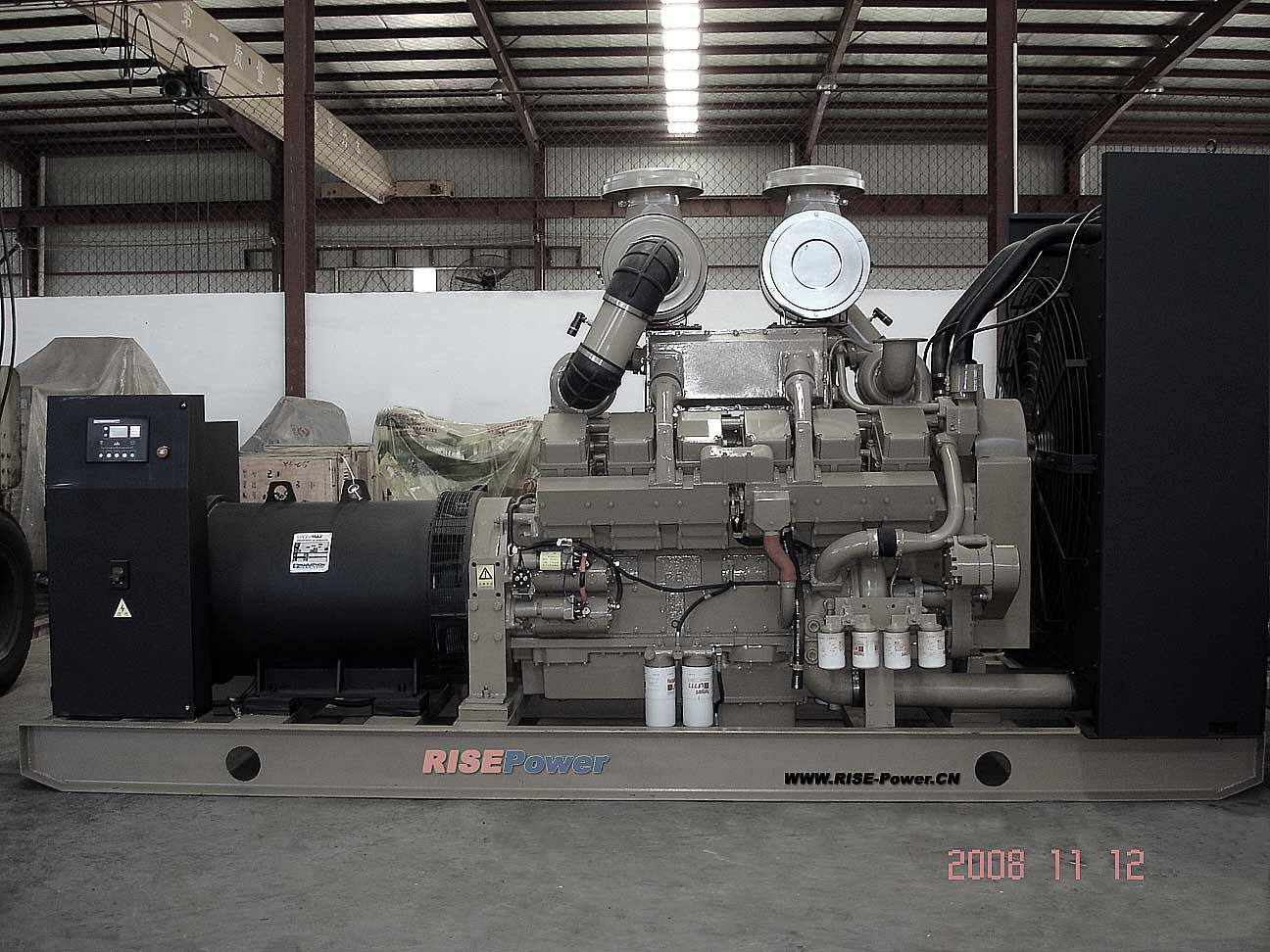

Features of Cummins Generator Set:
1. RISE Power Cummins series gensets are powered by CUMMINS engines.
2. Featuring higher reliability, lower use and maintenance cost, this diesel generator set are very popular among global customers in the field of Army, transportation engineering system and mine industries.
3. With auto protective device, this diesel generator set can control and protect the water temperature, oil temperature, oil pressure, and the speed.
4. These generator sets can be combined as power station group with automatic start system and ATS, etc. According to the customer's request.
Advantages of Cummins Generator Set:
1. Automatic speed regulation;
2. Automatic voltage regulation;
3. Superior dynamic performance;
4. Stable fluctuation form of voltage;
5. Good efficiency, long service life, etc;
Introduction of Cummins Inc.
1. Founded in 1919, (USA) Cummins Inc. Serves customers in over 160 countries and territories through its network of 680 company-owned and independent distributor locations and more than 5, 000 dealer locations.
2. Cummins, as the largest foreign engine investor of China, possesses Chongqing Cummins Engine Co., Ltd and Dongfeng Cummins Engine Co., Ltd. And produces CUMMINS engines with internationally uniform quality standard.
| 50/60Hz, 230V/400V, 20kVA - 1250kVA |
| Generator set Model | Engine Model | Alternator Model | Frequency (Hz) | Prime Power | Standby Power | Wooden Packing Size(mm) |
| kW | kVA | kW | kVA |
| RCM16 | 4B3.9-G2 | GM-16-4 | 50 | 16 | 20 | 18 | 23 | 1850X930X1550 |
| RCM20 | 4B3.9-G2 | GM-20-4 | 50 | 20 | 25 | 22 | 28 | 1850X930X1550 |
| RCM24 | 4BT3.9-G2 | GM-24-4 | 50 | 24 | 30 | 26 | 28 | 1850X930X1550 |
| RCM30 | 4BT3.9-G2 | GM-30-4 | 50 | 30 | 38 | 33 | 41 | 1850X930X1550 |
| RCM32 | 4BTA3.9-G2 | GM-32-4 | 50 | 32 | 40 | 36 | 45 | 1850X930X1550 |
| RCM40 | 4BTA3.9-G2 | MP-40-4 | 50 | 40 | 50 | 44 | 55 | 1850X930X1550 |
| RCM45 | 4BTA3.9-G2 | MP-48-4 | 50 | 45 | 56 | 50 | 63 | 1850X930X1550 |
| RCM50 | 6BT5.9-G2 | MP-50-4 | 50 | 50 | 63 | 55 | 69 | 2300X1000X1580 |
| RCM58 | 6BT5.9-G2 | MP-58-4 | 50 | 58 | 73 | 64 | 80 | 2300X1000X1580 |
| RCM64 | 6BT5.9-G2 | MP-64-4 | 50 | 64 | 80 | 71 | 89 | 2300X1000X1580 |
| RCM70 | 6BT5.9-G2 | MP-70-4 | 50 | 70 | 88 | 77 | 96 | 2300X1000X1580 |
| RCM75 | 6BT5.9-G2 | MP-75-4 | 50 | 75 | 94 | 82 | 103 | 2300X1000X1580 |
| RCM80 | 6BT5.9-G2 | MP-80-4 | 50 | 80 | 100 | 88 | 110 | 2300X1000X1580 |
| RCM90 | 6BTA5.9-G2 | MP-90-4 | 50 | 90 | 113 | 99 | 124 | 2300X1000X1580 |
| RCM100 | 6BTAA5.9-G2 | MP-104-4 | 50 | 100 | 125 | 110 | 138 | 2450X1010X1620 |
| RCM110 | 6BTAA5.9-G2 | MP-120-4 | 50 | 110 | 138 | 120 | 150 | 2450X1010X1620 |
| RCM120 | 6CTA8.3-G2 | MP-120-4 | 50 | 120 | 150 | 132 | 165 | 2500X1050X1750 |
| RCM140 | 6CTA8.3-G2 | MP-140-4 | 50 | 140 | 175 | 154 | 193 | 2500X1050X1750 |
| RCM150 | 6CTA8.3-G2 | MP-160-4 | 50 | 150 | 188 | 165 | 206 | 2500X1050X1750 |
| RCM160 | 6CTAA8.3-G2 | MP-160-4 | 50 | 160 | 200 | 176 | 220 | 2500X1050X1750 |
| RCM180 | 6LTAA8.9-G2 | MP-180-4 | 50 | 180 | 225 | 198 | 248 | 2500X1050X1750 |
| RCM200 | 6LTAA8.9-G2 | MP-200-4 | 50 | 200 | 250 | 220 | 275 | 2690X1130X2013 |
| RCM200-1 | NT855-GA | MP-200-4 | 50 | 200 | 250 | 220 | 275 | 3295X1300X2152 |
| RCM200-2 | MTA11-G2A | MP-200-4 | 50 | 200 | 250 | 220 | 275 | 3295X1300X2152 |
| RCM217 | NT855-GA | MP-217-4 | 50 | 217 | 271.3 | 238 | 297.5 | 3295X1300X2152 |
| RCM220 | NTA855-G1A | MP-220-4 | 50 | 220 | 275 | 242 | 303 | 3295X1300X2152 |
| RCM230 | NTA855-G1A | MP-230-4 | 50 | 230 | 288 | 253 | 316 | 3295X1300X2152 |
| RCM240 | NTA855-G1A | MP-240-4 | 50 | 240 | 300 | 264 | 330 | 3295X1300X2152 |
| RCM250 | NTA855-G1A | MP-250-4 | 50 | 250 | 313 | 275 | 344 | 3295X1300X2152 |
| RCM250-1 | MTAA11-G3 | MP-250-4 | 50 | 250 | 313 | 275 | 344 | 3295X1300X2152 |
| RCM260 | MTAA11-G3 | MP-260-4 | 50 | 260 | 325 | 286 | 358 | 3295X1300X2152 |
| RCM270 | NTA855-G2A | MP-270-4 | 50 | 270 | 338 | 297 | 371 | 3295X1300X2152 |
| RCM280 | NTA855-G2A | MP-280-4 | 50 | 280 | 350 | 308 | 385 | 3295X1300X2152 |
| RCM300 | NTAA855-G7A | MP-300-4 | 50 | 300 | 375 | 330 | 413 | 3460X1300X2200 |
| RCM320 | NTAA855-G7A | MP-320-4 | 50 | 320 | 400 | 352 | 440 | 3460X1300X2200 |
| RCM330 | NTAA855-G7A | MP-350-4 | 50 | 330 | 413 | 363 | 454 | 3460X1300X2200 |
| RCM350 | KTA19-G3 | MP-350-4 | 50 | 350 | 438 | 410 | 513 | 3860X1545X2465 |
| RCM400 | KTA19-G4 | MP-400-4 | 50 | 400 | 500 | 440 | 550 | 3860X1545X2465 |
| RCM450 | KTAA19-G5 | MP-480-4 | 50 | 450 | 563 | 505 | 631 | 3860X1545X2465 |
| RCM480 | KTAA19-G6A | MP-480-4 | 50 | 480 | 600 | 528 | 660 | 3860X1545X2465 |
| RCM500 | KTAA19-G6A | MP-500-4 | 50 | 500 | 625 | 550 | 688 | 3860X1545X2465 |
| RCM560 | KTA38-G2 | MX-560-4 | 50 | 560 | 700 | 616 | 770 | 3880X1738X2467 |
| RCM600 | KTA38-G2 | MX-600-4 | 50 | 600 | 750 | 660 | 825 | 3880X1738X2467 |
| RCM630 | KTA38-G2 | MX-630-4 | 50 | 630 | 788 | 693 | 866 | 3880X1738X2467 |
| RCM700 | KTA38-G2A | MX-700-4 | 50 | 700 | 875 | 770 | 963 | 3950X1838X2540 |
| RCM730 | KTA38-G2A | MX-750-4 | 50 | 730 | 913 | 803 | 1004 | 3950X1838X2540 |
| RCM800 | KTA38-G5 | MX-850-4 | 50 | 800 | 1000 | 880 | 1100 | 4470X1900X2910 |
| RCM900 | KTAA38-G9A | MX-900-4 | 50 | 900 | 1125 | 990 | 1238 | 4900x2300x2950 |
| RCM1000 | KTA50-G3 | MX-1030-4 | 50 | 1000 | 1250 | 1100 | 1375 | 5862x2100x2810 |
Guangzhou Wity Inc. Was established in 2004, with its headquarters in Guangzhou, China, which is subsidiary company with an independent legal entity of Wity Group. China. Our factory is located in Economic Development Zone, Guangzhou, which was formerly known as Rui'an Marine Generator Equipment Factory, which was one of the pioneer of generator sets business in China.
At present, we have a modern factory which covers 18, 000 square meters, and can mass produce various generator sets from 15kw to 1500kw, such as soundproof gensets, trailer mounted gensets, vehicle carried gensets, automatic parallel control panel, auto transfer switch panel(ATS), high voltage gensets, marine gensets with Marine Classification Society Approvals(CCS, BV and etc. )
We have set up a long-term cooperation relationships with several worldwide famous engine and alternator manufacturers since 2005. Our factory was appointed as the OEM factory of Cummins (Sino-American), Volvo Penta (Sweden), Perkins (UK), Doosan Daewoo (Korea), Marathon (Sino-American), Stamford (UK), LEC (China), Shanghai Diesel (China), Wuxi Diesel (China), JiNan Diesel (China).
We always insists that quality and service is the principle of us. We stand in the market with "quality first, service first, reasonable price ", we win customers with " timely, thoughtful and fast service ".
We sincerely welcome customers from all over the world!
