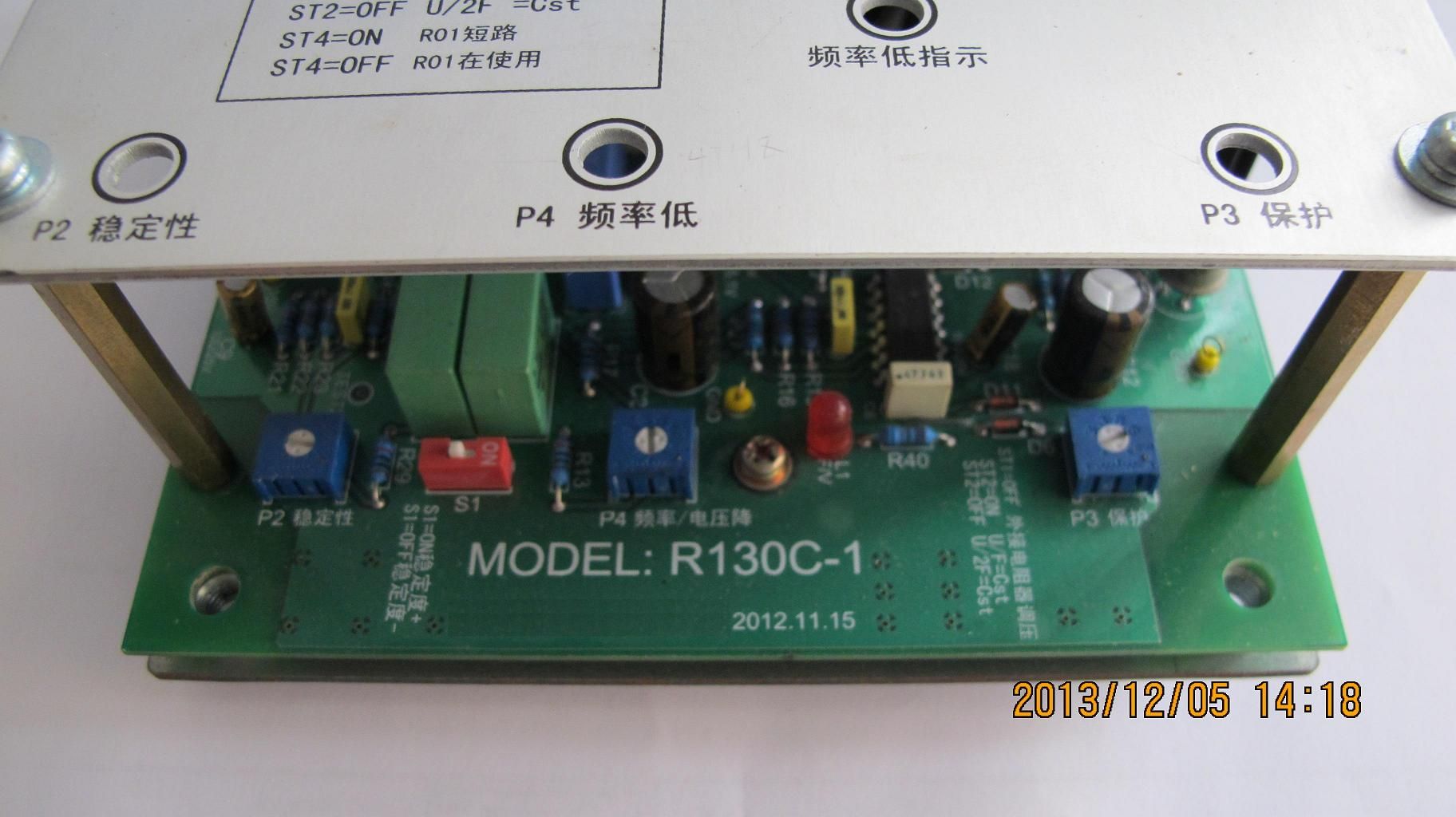

This is replacement AVR made in China on high quality, this AVR can replace original R130 AVR complete.
1 - GENERAL
1.1 - Presentation
This technical manuel concerns the three products of the
R130 range identified by R130A, R130B, R130C.
This products are designed to operate on the entire
Range of alternators, from 100 to 3000 kVA.
For example, regarding our own range there is a mandatory
Relationship between:
- types AA44, 46, 47 generator and R130A
- types AA49, 50, 52 generator and R130B
- types AA54 and over generator and R130C
1.2 - Description
The R130 AVR is a subtractive regulator connected to a
Compound circuit. This set up is adjusted to provide a
Voltage higher than the rated voltage (see alternator
Instructions).
The purpose of the regulator is to shunt the excess
Exciting current in order to maintain the voltage at its
Rated value.
1.3 - Specifications
- Single phase sensing
- Nominal input voltage: 230 to 270 V (terminals 8 and
9) or 400 to 480 V (terminals 8 and 10)
- Burden (sensing): 10VA
- Frequency: 50 to 60 Hz
- Voltage range: 210 to 500V (depending on connections)
- Regulation ± 1.5% (on the measured phases and without
Wave distortion)
- Underfrequency: Either U/f (ST2 closed) or U/2f (ST2
Open)
- Regulator response time: Less than 10 ms
- Protections: Against overvoltage
Against sensing loss
Against alternator short circuit >10 s
The protection operates by short circuiting the exciting
Current.
- Permanent derivated current: 4 A
- Temporary maximum derivated current: 10A
- Nominal field voltage: 100V
- Temporary maximum field voltage: 250V
- Operating temperature: -20 to 70° C
- Storage temperature: -25 to 80° C
- The electronic part of the regulator is totally encap-sulated
- Maximum power dissipation: 50W
- Environmental test:
Salt spray: 8 days in accordance with standard
NF C 20-711
Ambient temperature variation: -20 to 70° C
Vibration:
2 to 10 Hz: 2 mm peak to peak
10 to 100 Hz: Speed of 46 mm/sec RMS velocity
100 to 300 Hz: 4g acceleration
- Parallel operation input: 1A and 5VA
- Size:
Height 180 mm
Width 140 mm
Depth 85 mm
Weight 1kg (2Lb)
CARE: In case of operation of the protection, the AVR isautomatically reset within a few seconds.
