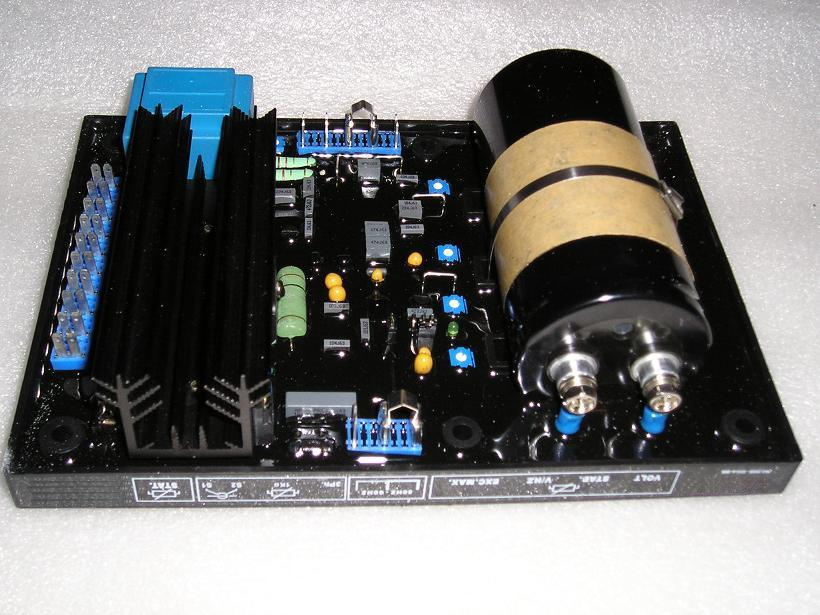

Leroy somer Automatic Voltage Regulator R449
R449 voltage regulator of a sealed electronic devices, by adjusting the excitation current in order to stabilize the output voltage of the brushless generator.
Specifications
Normal AVR supply power: 2 auxiliary windings
Shunt supply: 150V - 50/60Hz
Rated overload current: 15A, 10s
Electrionic built-in(overload, shour circuit, and loss of sensing) prodtection: If Excitation current raises over 10 Amps for more than 10 seconds, excitation current will drops automatically to about 1A.
To reset AVR protection, generator must be stopped(or by cutting supply voltage to the AVR).
Protection of power inputs by fuses F1
Voltage sensing: 5VA insulated transformer with input voltage taps at:
Terminals 0-110V=95-140V
Terminals 0-220V=170-260v
Terminals 0-380V=340-520V
Load current 7A
Overload current 15A, 10s
This is replacement AVR made in China on high quality, this AVR can replace original R448 AVR complete.
Our company was set up in 1997. We own consummate one technology engineer team. We concentrate efforts on generators&diesel parts selling. We own many country patent technologies. In almost annual short time, our products of generators parts&diesel were enter a lot of important Chinese field and arrives at world everywhere outlet already. Rely on fine quality and reputation our products have gained very good valuation in the world.
One, our generators parts main following,
A, Various different accessory of Siemens 1FC2, 1FC4, 1FC5, 1FC6 series alternators. That made by Germany Siemens, CSIEM-CSIC China and HYUNDAI Korea.
B, AVRs(Automatic Voltage Regulator) and many kinds of genuine parts for STAMFORD alternators (BC, UC, HC, LV6 series) that Made in UK or China mainland.
C, AVRs(Automatic Voltage Regulator) for Marathon(USA) & LEROY SOMER (France) generators.
D, All kinds of genuine parts for CUMMINS, Volvo PENT, MAN and
DALHATSU diesels. Main is Electrical governors and actuators.
Also we can provide the technology hold out for free if you order our products.
We will provide the perfect service and technology hold out for free if you order our products.
Our quality control system has already pass United Kingdom international mass attestation centre ISO9001: 2000 UKAS quality system certification. Now they are used the different in many important field. Our valves have exported to a lot of countries of the world already. Such as Asia, Europe, America and Africa. They are very welcomed for high quality and best price.
Since using the advanced technology and science manage, we can provide the world first-rate the quality product and consummate service. The customer is our god.
