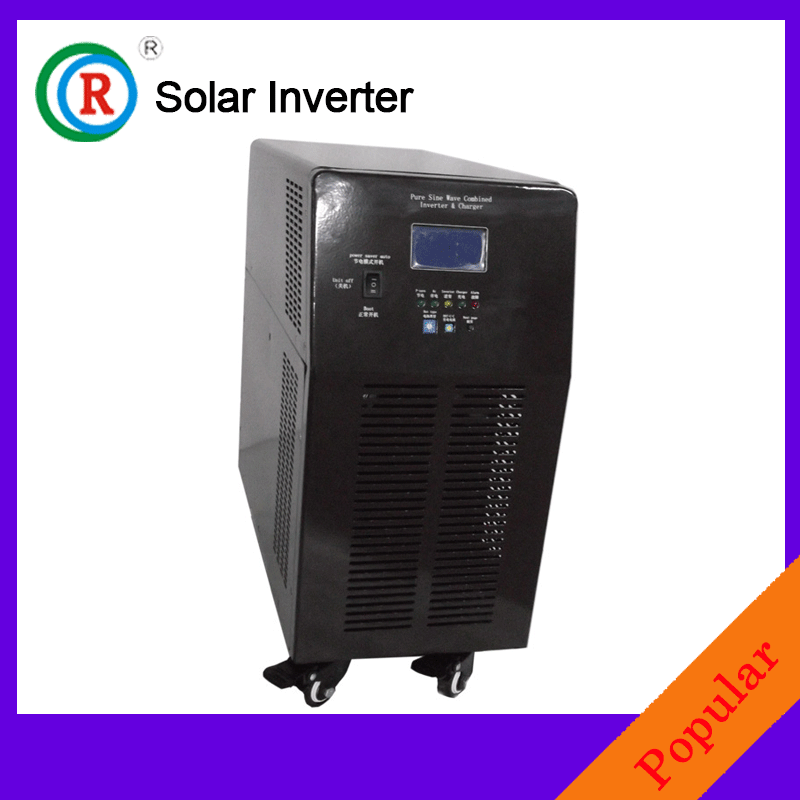

Pure Sine Wave Frequency Inverter with Built-in MPPT Controller 24V
The core advantages(Pure sine wave inverter with LCD Screen):
1. CPU intelligent management,
2. All wire are compeletely copper
3. Circuit board with three section (Dust, insect, Damp proof)
4. Latest American technical inverter,
5. Adopted best electronic components, stable quality, long-life,
6. The high conversion efficiency( 90%~99%),
7. Low power consumption, 1W~6W under sleep state.
1. Introduction:
1> This pure sine wave power inverteris pure sine wave intelligent inverter;
2> Through the inverter power supply, 12V/24V/DC48V DC battery can be converted into 110V/220V AC Alternating Current, Used to power the load;
3> Solar power system consists of solar panel, Solar charge controller, inverter, battery and other components;
4> Can be divided into several types: Only the converter, Give priority to the use of solar energy, Give priority to the use of AC.
2. The product features:
. ---Pure sine wave output;
. ---Built-in transfer switch automatically transfers
. ---CPU management, intelligent control, module design.
. ---LED/LCD display function;
. ---High conversion efficiency (between 90%-98%) low consumption.
. ---Three-step intelligent charging mode available. It charges all kinds of batteries intelligently. And the maximum charging current is adjustable. It also can be used as a charger.
. ---It can match with all kinds of batteries, such as sealed lead acid battery, open lead acid battery, gel battery and kinds of lithium batteries.
. ---Attention please: If you want inverters to match the lithium batteries, you should tell me the lithium batteries specifications.
. ---Three-step intelligent charging mode available. It charges all kinds of batteries intelligently, so can be used as a charger. And the maximum charging current is adjustable.
. --- It is also called dynamic inverter that has the advantage of strong overload capacity. For example, 1KW model can drive 1P air conditioning, and 2KW can drive 2P air conditioning etc.
. ---This kind of inverter adopts latest American low frequency circuit design and new electric materials. The whole system is more stable, low malfunction rate, and long-life. There is no problem to use for more than 5 years under the normally using.
1-year warranty plus life-time service.
| Utility Model Specifications |
| AC220V | AC110V |
| Efficiency | ≥ 98% |
| Input Wave Type | Pure sine wave (utility or generator) | Pure sine wave (utility or generator) |
| Input Voltage Range | AC 154V~AC263V | AC 77V~132V |
| Nominal Input Voltage | 220Vac/230Vac/240Vac | 110Vac/120Vac/130Vac |
| Low Voltage shutoff | 154Vac± 4% | 77Vac± 4% |
| Low Voltage Recovery | 164Vac ± 4% | 82Vac ± 4% |
| Over voltage Shut off | 263Vac± 4% | 132Vac± 4% |
| Over Voltage Recovery | 253Vac± 4% | 127Vac± 4% |
| Nominal Input Frequency | 50Hz/ 60Hz (auto detect) | 50Hz/ 60Hz (auto detect) |
| Output Wave Type | Same as the input wave type | Same as the input wave type |
| Transfer Time (AC to DC) | < 10ms | < 10ms |
| Transfer Time (DC to AC) | < 5ms | < 5ms |
| Inverter Mode Specification |
| Power Factor | 1 (Sufficient output power) |
| Rated Output Voltage (V) | 220Vac/230Vac/240Vac | 110Vac/120Vac/130Vac |
| Nominal Output Frequency (Hz) | 50/60 ± 0.3Hz (auto detect) |
| Output Voltage Range | ± 10% rms |
| Efficiency | > 88% (DC12V: > 88%, DC24V: > 90%, DC48V: > 94%) |
| Overload Protection | (110%< load< 125%) ± 10%: Fault (shutdown output) after 15 minutes; |
| (125%< load< 150%) ± 10%: Fault (shutdown output) after 10s; |
| Load> 150% ± 10%: Fault (shutdown output) after 20s; |
| Low Battery Alarm | 10.5Vdc ± 0.3Vdc ( 12V Input) |
| 21.0Vdc ± 0.6Vdc ( 24V Input) |
| 42.0Vdc ± 0.6Vdc ( 48V Input) |
| Low DC input voltage automatic shut-down | 10.0Vdc ± 0.3Vdc( 12V Input) |
| 20.0vdc± 0.6Vdc ( 24V Input) |
| 40.0vdc± 0.6Vdc ( 48V Input) |
| High DC input voltage warning & outage | 16Vdc ± 0.3Vdc ( 12V Input) |
| 32Vdc ± 0.6Vdc ( 24V Input) |
| 64Vdc ± 0.6Vdc ( 48V Input) |
| High DC input voltage Recover | 15.5Vdc ± 0.3Vdc( 12V Input) |
| 31.0Vdc ± 0.6Vdc ( 24V Input) |
| 62.0Vdc ± 0.6Vdc ( 48V Input) |
| Power saving on | ≤6W |
| Power | 20W~60W |
| Safety | CE, EMC, LVD, SGS, ISO9001 |
| Communication port | RS232 |
| Cooling | Cooling-Variable Speed Fan run under ventilation condition. |
| Operating Temperature Range | 0° Cto 60° C |
| Storage temperature | -15º C~60º C |
| humidity | 5% to 95% |
| Noise | Max 60dB |
