Specifications
1,AVR control
2,IP23, Insulation Class H
3,2/3 pitch winding
4,100% copper wire and 100% output
5,ISO9001-2008,CE certificat
Packaging & Delivery
Packaging Detail: | Plywood case or customer required |
| Delivery Detail: | 3-10 days after deposit received |
Product Description

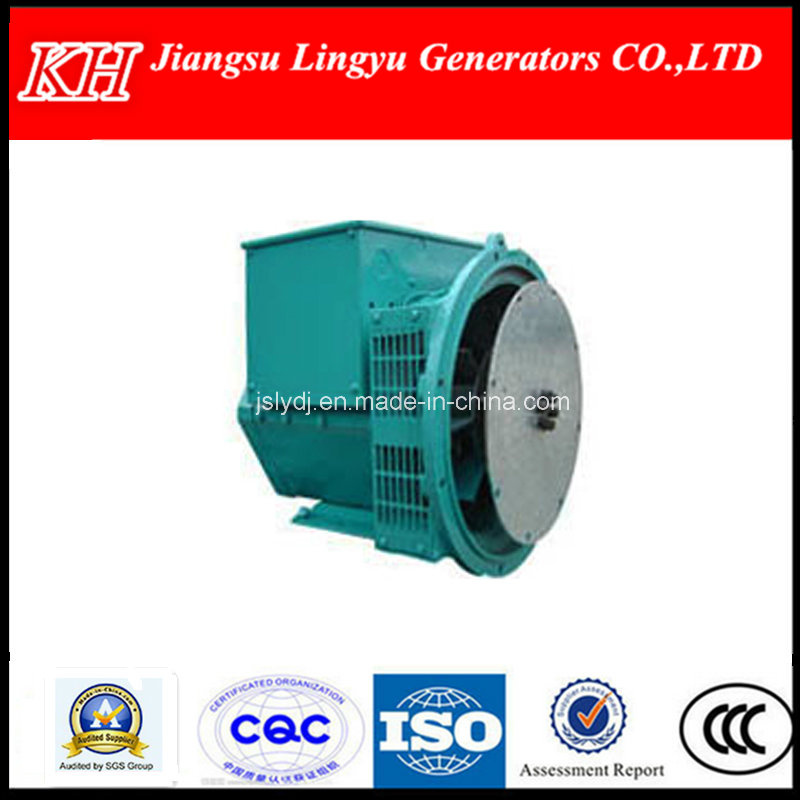

8.8KW single phase generator/single phase alternator 8.8KW/ 10kva single phase alternator AC brushless synchronous alternator
1, Alternator Details :
Alternator |
Powered by LOVOL/DOOSAN/ISUZU/CUMMINS/PERKINS/DEUTZ |
Model |
LY-164 |
Rated Output(KVA/KW) |
8.8KW/ 10kva |
Voltage |
110V--280V can be indicated |
Frequency |
50Hz/60Hz |
Speed |
1500rpm/1800rpm/3000rpm/3600rpm |
Power Factor |
1 |
Insulation Class |
Class H |
Ingress Protection |
IP22/IP23 |
AVR(Option) |
SX460,SX440,MX341,AS440,SX440T,MX321 |
| JIANGSU LINGYU GENERATORS CO.,LTD |
|
| Frame NO. | MODEL | 50HZ | 60HZ | Weight | Size | PRICE(USD) |
| | (KW) | (KW) | | | |
| 164 | KHI | 6.5 | 8.2 | | | | 478 |
| KHI | 8.8 | 11 | | | | 494 |
| KHI | 10.8 | 13.5 | | | | 534 |
| KHI | 12.8 | 16 | | | | 557 |
| 184 | KHI | 18 | 20 | 150 | 160 | 700*520*690=0.25 | 612 |
| KHI | 22 | 27.5 | 150 | 160 | 700*520*690=0.25 | 651 |
| KHI | 25 | 30 | 150 | 160 | 680*530*640=0.23 | 720 |
| KHI | 30 | 37.5 | 220 | 235 | 840*520*550=0.24 | 761 |
| 224 | KHI | 34 | 42 | 240 | 255 | 830*530*890=0.39 | 781 |
| KHI | 40 | 50 | 250 | 265 | 880*520*950=0.43 | 821 |
| KHI | 50 | 60 | 280 | 295 | 880*520*950=0.43 | 913 |
| KHI | 58 | 70 | 310 | 335 | 860*520*950=0.42 | 988 |
| KHI | 70 | 80 | 350 | 370 | 920*530*900=0.44 | 1096 |
| 274 | KHI | 80 | 100 | 420 | 440 | 860*610*1080=0.57 | 1236 |
| KHI | 96 | 120 | 440 | 460 | 860*610*1080=0.57 | 1383 |
| KHI | 112 | 140 | 490 | 510 | 970*620*1030=0.62 | 1489 |
| KHI | 128 | 152 | 530 | 550 | 970*620*1030=0.62 | 1576 |
| KHI | 144 | 172 | 580 | 600 | 1000*600*1030=0.62 | 1758 |
| KHI | 160 | 200 | 630 | 650 | 1070*600*1030=0.66 | 1880 |
| KHI | 180 | 225 | 640 | 660 | 0.7 | 2086 |
| KHI | 200 | 256 | 710 | 730 | 1110*680*1040=0.78 | 2226 |
| C4 | KHI | 240 | 300 | 850 | 870 | 1200*680*1100=0.9 | 2684 |
| KHI | 250 | 312 | | | | 2915 |
| KHI | 260 | 315 | | | | 2984 |
| KHI | 280 | 320 | 980 | 1000 | 1200*680*1100=0.9 | 3071 |
| KHI | 300 | 390 | 1050 | 1080 | 1320*700*1100=1.02 | 3308 |
| KHI | 320 | 410 | 1120 | 1145 | 1320*700*1100=1.02 | 3467 |
| C5 | KHI | 360 | 475 | 1150 | 1175 | 1390*730*1220=1.24 | 3834 |
| KHI | 400 | 500 | 1250 | 1280 | 1390*730*1220=1.24 | 4242 |
| KHI | 450 | 563 | 1300 | 1350 | 1390*730*1220=1.24 | 4431 |
| KHI | 500 | 600 | 1550 | 1580 | 1390*730*1220=1.24 | 4759 |
| KHI | 550 | 630 | | | | 5079 |
| V6 | KHI | 600 | 720 | | | | 5883 |
| KHI | 640 | 766 | 1950 | 1980 | 1755*785*1160=1.6 | 5986 |
| KHI | 728 | 872 | | | | 6605 |
| KHI | 800 | 958 | | | | 7214 |
| KHI | 904 | 1066 | | | | 8165 |
| KHI | 1056 | 1160 | 2750 | 2850 | 1900*1180*1550=3.48 | 8689 |
| V7 | KHI | 1120 | 1240 | | | | 9808 |
| KHI | 1240 | 1360 | | | | 10834 |
| KHI | 1320 | 1480 | | | | 12996 |
| KHI | 1520 | 1690 | 3500 | 3600 | 1755*970*1280=2.18 | 14034 |
| KHI | 1660 | 1810 | | | | 16289 |
| KHI | 1800 | 1980 | | | | 33756 |
2.Features:
1.Optional permanent magnetic alternator , provide invariable excitation in any situation.
2.Easy to be connected with power network or other alternators.Standard 2/3pitch windings avoid excessive neutral current.
3.Dynamically balanced rotors, with single or two sealed ball bearings.
4.Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.
5.Wide range of flange adaptor and single bearing coupling disc.
6.Built to conform to all leading industrial and marine standards.
3.Electrical Character:
Excitation system:The main stator supplies power to exciter stator via Automatic Voltage Regulator (AVR) .The output of exciter rotor is fed to the main rotor through a three phase full wave rectifier.There are varistors at the both ends of the rectifier for restraining surge voltage and avoiding the impact caused by short circuit or parallel synchronization loss.Exciter stator is equipped with permanent magnetic steel in order to start up the alternator smoothly in any occasion.
4.Insulation & Immersion:
Insulation class H.
All wound components are made up with specialized material and immersed in varnish by especially technology.Resin matrix material is developed to strengthen the process and machinery intensity of windings and revolving parts for the alternator working under harsh environment.
5.Windings and electric features:
Standard 2/3 pitch windings design can eliminate the triple frequency harmonics on the voltage waveform which is the optimum design for trouble-free supply of non-linear loads.
6.Physical features:
Shaft & key
All generator rotors are dynamically balanced to better than BS6861:Part 1 Grade 2.5 for minimum vibration in operation.Two bearing generators are balanced with a half key.
Wiring terminal and terminal box
Standard alternator is 3 phase re-connectable to 12 ends brought out to the terminals, which are mounted on a cover at the non-drive end of the alternator .A sheet steel terminal box contains the AVR and provides ample space for customer's wiring and gland arrangements.It has removable panel easy access.
Plywood packing case,fumigation-free .
Shipping :Not more than 7days since get full payment in Shanghai Port .
Best quality Best service with Competitive price
Start your internet business with us here
The best power support for your future life
?Guarantee/Warranty And After-sale Service
ALL ANSWER IS YES!!!
?One year guarantee for whole machine except of tube and lens
?24 hours technical support by e-mail
?Calling or door-to-door service
?Use-friendly English software,user manual and detailed Videos/CD
Jiangsu Lingyu Generator Co., Ltd. (hereinafter referred to as "Lingyu") is professional manufacturer of synchronous brushless alternators and diesel generating sets. Our workshop covers 100, 00sqm, and supply capacity can over 8000 units per year. And we are two hours away far from Shanghai port.
Lingyu produces Stamford type brushless alternators, range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800rpm, voltage 110V-690V, class H, IP23, all easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc, and our alternator are widely used in industry, commercial, real estate, hospital, hotel, railway, telecommunications, data-centers and mining etc.
Lingyu people treat Quality and Service as enterprise' S life, and has competitive advantages
1) Filters reliable suppliers with quality materials,
2) 100% quality copper wire, bearings, etc,
3) Strict Quality Control by QC. Dept.
4) comformity to IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C22.2-100 and ASB59.
Certified of CCC, CE, TUV, EPA, SGS
5) 2 years warranty-the first supplier who can offer in China.
6) Ships general parts within 3days upon customer' S complaint
Lingyu generators are being exported to Europe, Africa, and many other regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to Lingyu.
