Home Generator Products 8.5kw Diesel Generator Set Portable Use Generator

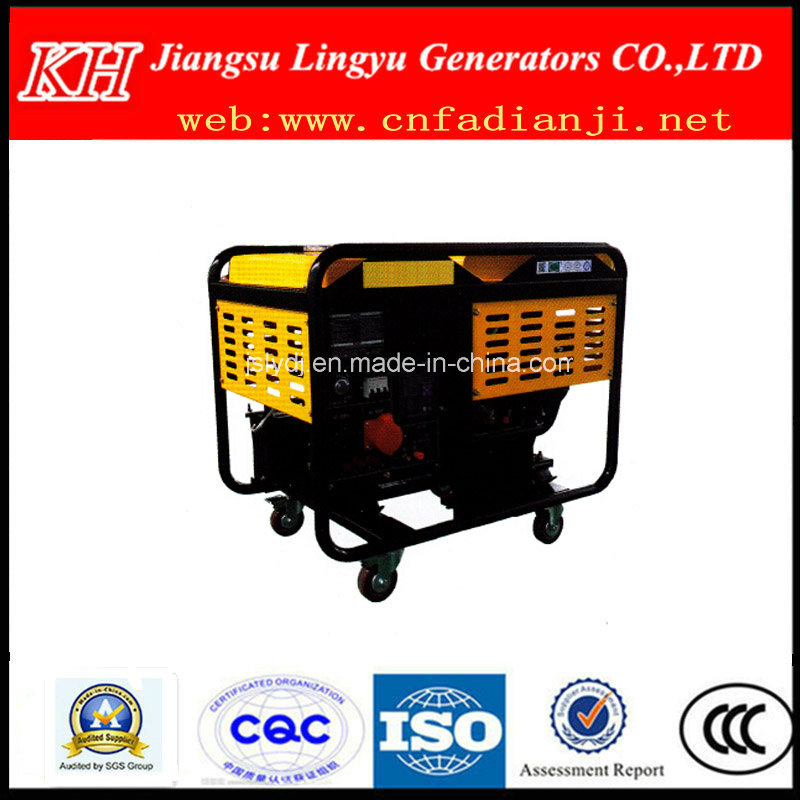

8.5kw Diesel Generator Set Portable Use Generator

8.5kw Diesel Generator Set Portable Use Generator
Price: US $ 480-720/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Diesel generator set series:

     Power Range:2-12KW
     Startup mode:hand/electric start
     Alarm device:Low oil pressure alarm,can automatically shut off the engine
     Runing time:≥9hours
     Unit frequency:50HZ/60HZ
Self-unit structure:open/ultra silent type

Overview of product performance

1.       Ultra silent operation  Efficient combustion system ensures safe combustion,effectively reducing the engine noise.In addition ,silent type units monolithic shell and liner insulation pad double noise reduction structure,large muffler system,which greatly weakened the unit noise.
2.       Low oil alarm device  In the oil level drops to a security cordon,it will automatically shut down the plant until oil replenished only after the re-start,to avoid damaging the unit.
3.       The new automatic voltage regulator(AVR)  Compared with the first generation of AVR,AVR second generation of superior performance,voltage fluctuations can even lower limits to ensure the unit output is more stable.
4.       Intelligent control panel  Intelligent control panel centralizes all control unit,the user can understand the real-time iperating conditions of the umit from the panel's LCD display,such as real-time output voltage,output current.Smart board also can display unit failure happened to facilitate troubleshooting to ensure the unit running normally.


Intelligent Control Panel Models

     New type AVR ensures a smooth output of generator
     Powerful 2V86 diesel engine
     Electric start
     Rated output:50Hz 8KW/60Hz 8.5KW
     Continuous running time:8 hours
     Low oil alarm system can automatically shut down the engine


Model KHI-12000E3
Frequency(HZ)50Hz60Hz
Max.output(KW)99.56
Rated output(KW)88.5
Rated AC Voltage(V)120,220,230,120/240,220/380
Power FactorCos Φ=1(three-phase Cos Φ=0.8)
DC output(V)12V/8.3A
PhaseSingle Phase (3-Phase)
Alternator TypeSelf-excited,2-pole,100% copper wire alternator
Staring Systemelectric
Noise Level(Dba/7m)≤95
Fuel Tank Capacity(L)30
Continuous Running Time(hr)8
Engine Model2V86
Engine TypeSingle-cylinder,vertical,4-stroke,water-cooled diesel engine
Bore*Stroke86*72
FuelConsumption rate(g/kw.h)≤268
Fuel0# or-10# light diesel oil
Lubrication Oil Volume(L)2.5
Combustion SystemDirect Injection
Oil  typeCF Grade or SAE:Winter10W-30 15W-40 Summer 20W-50
AC Output Socket2
Dimention(L*W*H)(mm)1110*740*910
Net Weight(kgs)210

We are the specialized generator supplier in China. With high reputation and competitive price. Welcome your inquiry at any time. Email me or call me directly if any question at any time:
FAX:0514-86827818
TEL:0514-86826088
MOBILE:+86-15052559798
Prod Model: KHI 12000E3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:T Jiangsu China: Brand Name:T Lingyu
Output Type:T AC Three Phase: Speed:T 1500/1800/3000/3600rpm
Frequency:T 50/60Hz: Rated Power:T 2.8kw
Rated Voltage:T 110~570V: Rated Current:T AMPS
Payment Terms:T T/T L/C Credit: Fan:T Aluminum Fan
Jiangsu Lingyu Generator Co., Ltd. (hereinafter referred to as "Lingyu") is professional manufacturer of synchronous brushless alternators and diesel generating sets. Our workshop covers 100, 00sqm, and supply capacity can over 8000 units per year. And we are two hours away far from Shanghai port.

Lingyu produces Stamford type brushless alternators, range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800rpm, voltage 110V-690V, class H, IP23, all easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc, and our alternator are widely used in industry, commercial, real estate, hospital, hotel, railway, telecommunications, data-centers and mining etc.

Lingyu people treat Quality and Service as enterprise' S life, and has competitive advantages

1) Filters reliable suppliers with quality materials,

2) 100% quality copper wire, bearings, etc,

3) Strict Quality Control by QC. Dept.

4) comformity to IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C22.2-100 and ASB59.

Certified of CCC, CE, TUV, EPA, SGS

5) 2 years warranty-the first supplier who can offer in China.

6) Ships general parts within 3days upon customer' S complaint

Lingyu generators are being exported to Europe, Africa, and many other regions, obtaining great corporate reputation and long-terms partner cooperations.

Warmly welcome to Lingyu.
