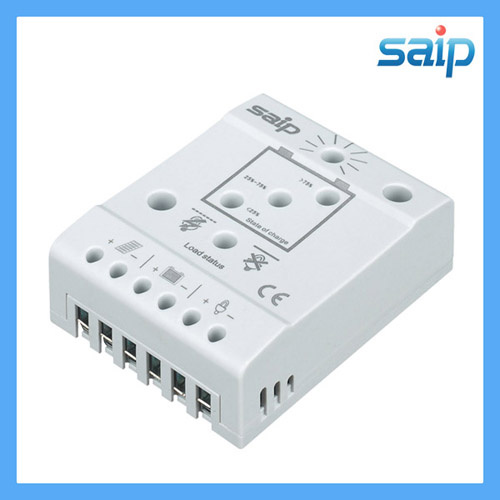

Public Solar Streetlamp Controller (SML05)
---Feature
1. One programmable nightlight function
2. PWM regulation (series type)
3. Integrated temperature compensation
4. Three-state charging method
5. SOC and voltage controlled LVD
6. Solid-state circuit and load protection
7. Reverse polarity protection
8. Fully electronically protected
---Introduction
The SML series is a sophisticated solar charge controller family for low cost applications.
The electronic circuit is equipped with a microcontroller that provides high-efficiency charging technology together with a number of outstanding status display, warning and safety functions. The SMLNL series comes with two nightlight function mode. One of them is programmable that switch on the load output for a adjustable number of hours from dusk.
The nightlight function is overridden by a battery deep discharge protection to avoid excessive dicharge and damage of the battery.
The temperature-compensated three-state PWM charging method (boost-equalize-float) is now ajustable to sealed and vented lead-acid batteries.
The low voltage disconnect function can be controlled either by SOC or by voltage.
The battery status, charging status and load status are clearly indicated by 5 LEDs.
Model |
SML05 |
SML08 |
SML10 |
SML15 |
SML20 |
SML25 |
Nominalvoltage: |
12/24V automatic recognition |
Max. module current |
5A |
8A |
10A |
15A |
20A |
25A |
Max. load current |
5A |
8A |
10A |
15A |
20A |
25A |
Boost voltage |
14.5V/29.0V |
Equalization voltage |
14.8V/29.6V |
Equal ization voltage |
13.7/27.4V |
Deep discharge protection |
11.4-11.9V/22.8-23.8V control led by statc of charge 11.0/22.0V control led by voltage |
Load reconnect voltag |
12.8/25.6V |
Temperature compensation |
-4mV/cel l*K |
Self consumption |
<4mA |
Max. wire size |
16mm ²(AWG#6) |
Dimensions(W×H×D) |
80*100*32mm(w*h*d) |
Weight |
220g |
Temperature range |
-20to+50°C |
Type of protection |
IP22 |
