Working principle

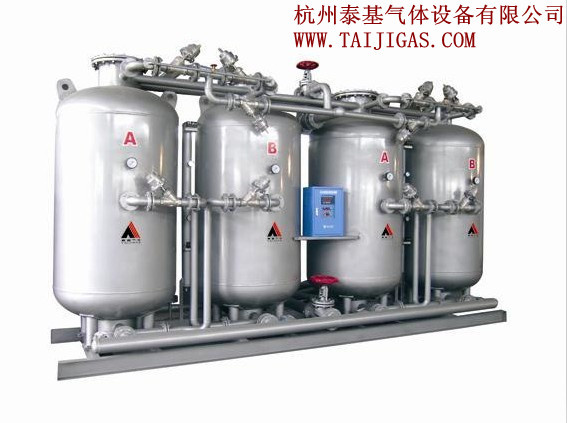

According to the principle of pressure swing adsorption using zeolite molecular sieve as adsorbent zeolite molecular sieves have selective adsorption characteristics of nitrogen zeolite molecular sieve a large number of adsorption of oxygen in the gas phase is enriched in the role of the pressure swing adsorption nitrogen-oxygen separation. Two adsorption tower process, a tower adsorption of oxygen production, a tower desorption regeneration cycles of the pneumatic angle seat valve opening and closing of the PLC intelligent program control so that the two towers, a continuous output of high-quality oxygen.
Technical Features
Low energy consumption, equipment operation, cost, adaptability, and gas production is fast, easy to adjust purity;
Modular structure designed to save floor space;
Easy operation, stable performance, high degree of automation can realize unmanned operation;
The internal structure of design, to improve the efficiency of the zeolite molecular sieve adsorption;
Special air diffusion device, reduce the airflow speed impact, and to extend the life of the zeolite molecular sieves;
The key components of well-known brand is an effective guarantee for the quality of equipment;
Automatic interlock shorting device to ensure the quality of the finished product oxygen;
Optional touch screen display, dew point measurement, energy-saving control, DCS communications.
Technical indicators
Oxygen production: 3 ~ 200Nm3 / h
Oxygen purity: 90 ~ 95%
Oxygen pressure: 0.1 ~ 0.4MPa (available 0.4 ~ 3.0MPa)
Dew point: -40 ° C ~~ -60 ° C (atmospheric pressure)
Hangzhou T&J Industrial Gas-equipment Co., Ltd. Is an aggressive and competitive company.
T&J company is a technology enterprise specialized in R&D, design and manufacture of various air separators and cryogenic application equipments. T&J company always insists on taking the technology as the motility, emphasizing technique and products innovation, cooperating with many scientific and research institutes, academic schools which are in the same industry range with us. On the basis of integration into advanced design concept and strict management procedure and the outstanding production technique and give the enthusiastic service support. Decisive adoption of new processes, new technology, the R&D and manufacturing capability of the company is enhanced and the development is oriented to the Saving Energy variety and perfection of the products. We have a development and production base in Hangzhou China, and a network of installation and after-sales service that supports people around the world and provides standard service to every corner of world.
The products of T&J company cover the fields of metallurgy, petrochemical industry, electronics, machinery, construction material, Medicine, New materials which have been well received all over the country and also been supplied to many Asian and African countries. The main products are: The medium and small size oxygen nitrogen plants, liquid oxygen and liquid nitrogen plants, oxygen and nitrogen liquefaction plants, high purity nitrogen generators, molecular sieve pressure swing adsorption plants, PSA (VPSA) oxygen (nitrogen) plants and gas purification drying equipment.
In addition to provide high-quality products, T&J company also undertakes technical consulting, engineering design, equipment installation, technical training and other services, and implementation of the turn-key project. Sincerely welcome your contact and visit to the company.
T&J company philosophy is to:
• Only carry technologically superior products
• Offer unsurpassed service and after sales support
