Both marine and terrestrial nitrogen in the oil / gas fields contain every aspect of upstream drilling and production and downstream refining. Nitrogen is widely used in the following aspects of the upstream oil and gas industry: 1) underbalanced drilling, completion, 2) oil and gas mining, to improve oil and gas recovery 3) oil and gas pipeline purge.

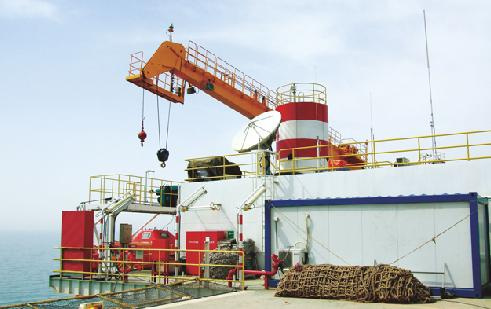

Whether it is in the remote mountainous areas, deserts, or offshore platforms, oil and gas industry-specific Nitrogen Generator can meet the different gas consumption, continuous with the requirements of the gas, to ensure that customers production.
System Components
The three main components of the nitrogen system:
A. Air Compressor: Diesel engine or electric motor driven air compressor, including a local control system.
Two. Nitrogen Generator: Air purification system, PSA nitrogen system (or membrane nitrogen system) and the control system.
3. Supercharger unit: Diesel engine or motor-driven supercharger, including local control system.
Technical indicators
Nitrogen flow rate: 50-5500Nm3 / h (95% purity)
Nitrogen purity: 90-99.9% adjustable (same set of equipment flow, purity can be adjusted for flow and purity is inversely proportional to)
Sources of power: Diesel engine (no need for external power source), or motor-driven (external power supply)
Cooling mode: Water-cooled air-cooled (fixed displacement device is optional)
Applicable to the environment: -35 C ~ 50 C
Control modes: Distributed control (PLC in the control of major equipment complete local control)
External form: Box, pry the block, mobile
Non-standard products (nitrogen flow / purity / pressure based on the use of customer requirements, the use of the environment, the main purpose and the special requirements of customers), we will rely on years of professional experience,
Technical Features
Professional and rigorous design and manufacturing, with mature and advanced technology to ensure superior system reliability. Our professionalism is reflected in - the experience, technology, design, service and other aspects, the whole process.
Supporting the professional leading manufacturers of complete sets of the air compressor group, booster engine, reliable quality, stable performance, low maintenance costs, can create more value for customers; EIB to focus on the pressure swing adsorption system (or membrane separation system), control system with a total complete sets.
Intelligent control system to ensure that the system for a long time running smoothly, the normal life of more than 10 years; Operation, maintenance, maintenance is simple and efficient.
The high efficiency of the production of carbon molecular sieve (or membrane) nitrogen can increase the gas production per unit time, improve efficiency, reduce working hours, saving production costs, system operation more economical.
Nitrogen system package can be designed into the explosion-proof type of protection, explosion-proof, protection class according to user request.
The entire nitrogen system is compact, easy to move.
Range of applications
Underbalanced drilling, completion
Three mining the job
Pipeline purge
Natural gas gathering and transportation station
LNG terminal
Offshore drilling / production platform
Natural Gas Purification Plant
