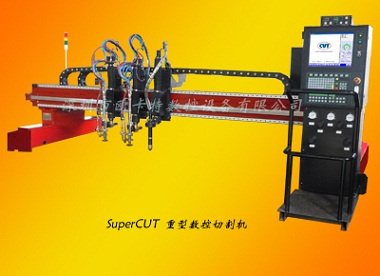

SuperCUT is a super functional type cutting machine, which contains all the functions of VersaCUT, especially suitable for precision plasma and huge model CNC cutting machine
Optional match a fume extraction system or under water work table is available
Track width from 5 meter to 12 meter is available, power range of servo from 1000W to 1500W
Dual-side drive, 43KG longitudinal track rail make cutting accuracy more precise
Adopt with high precision arc height control system, with up/down stroke of 180mm
Match with capacitive height control system and auto ignition unit for flame cutting.
Specification
Track width: 5000: 5500: 6000: 6500: 7000: 8000: 10000
Overall width: 5850: 6350: 6850: 7350: 7850: 8850: 10850
X axis: High precise pinion and rack gear, effective length = ( track width - 1000mm )
Y axis: High precise pinion and rack gear, effective length = ( track length - 2500mm )
Z axis: Ball screw and straight guide rail, up / down stroke 180mm / 300mm
Max. Cutting thickness: 150mm for flame cutting ( 300mm is optional ), plasma cutting depend on the power source.
Drive system: Mitsubishi or Panasonic AC servo motor (1000W and above)
Operation system: MicroHYD / HYDPRO / MicroEDGE / EDGEPRO / BURNY
Resetting accuracy: ± 0.1mm
Rapid moving speed: 12000mm/min
Cutting table: Optional with fume extraction system / under water cutting table / dry or semi-dry cutting table
Plasma power source: According to the thickness of the metal sheet, match with plasma from 200A to 800A
Note: Due to the product improving, we possess the right to change the specification without notification.
