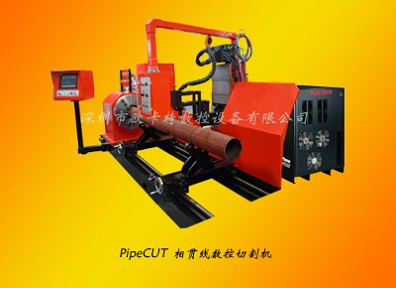

PipeCUT is a auto intersecting line cutting machine which controlled by digital
It replace the complicated operating workmanship of manual lofting, marking, cutting, burnish and so on
Chuck for pipe diameter between 58~600mm, others use frictional disk
It has functions of cutting fixed-angle groove, fixed point groove and angle changed groove
Include function of circle bias compensation
Adopt with high precision arc height control system, with up/down stroke of 180mm
Match with auto height control system and auto ignition unit for flame cutting.
Specification
Pipe diameter: ∮ 58~1600
Cutting length: 4000, 6000, 8000, 10000, 12000, 14000, 16000
Cutting mode: Flame cutting / plasma cutting
Max. Load: 5000Kg
Max. Cutting thickness (mild steel ): 5~60mm
Drive system: Mitsubishi or Panasonic AC servo motor
Axes: 2 / 3 / 4 / 5 / 6
Resetting accuracy: ± 0.1mm
Rapid moving speed: 12000mm/min
Cutting table: Chuck / frictional disk
Plasma power source: According to the thickness of the metal sheet
Note: Due to the product improving, we possess the right to change the specification without notification.
