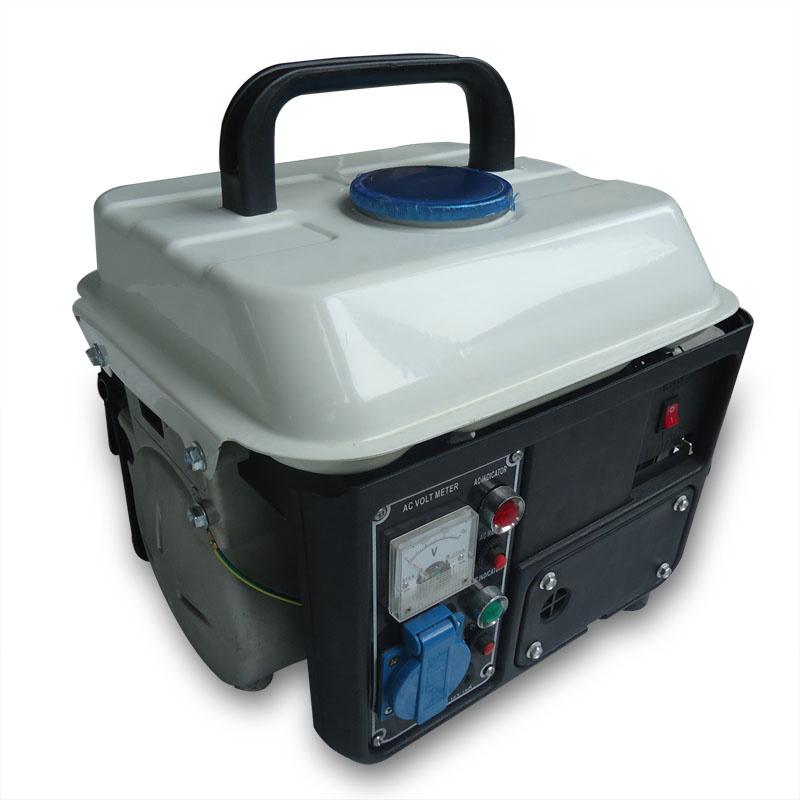

Gasoline generator, gasoline genset, portable gasoline generator
1.950 portable gasoline generator set
2. Rated power output 650W
3. Overload protection
4. Engine type IE45F
950 portable gasoline generator set
4L fuel tank capacity ensure 5.8hours running without refueling
Overload protection for safe running
Packaging & Delivery
Packaging Detail:
Net weight: 20kg, Gross weight: 21kg,
Dimension: 375*325*325mm,
20FT quantity: 750PCS.
In corlor box or brown carton.
Delivery Detail:
15-30 after receiving advance payment
|
Model |
ZT950 |
|
Generator |
self-exciting, 2-poles, single phase |
|
AC Frequency |
50Hz |
60Hz |
|
Engine speed |
3000rpm |
3600rpm |
|
AC Rated voltage(v) |
220v/230v/240v |
110v/120v 220v/240v |
|
Rated AC Output(w) |
650 |
750 |
|
Max. AC Output(w) |
750 |
800 |
|
DC output |
12V-8.3A |
|
Power factor |
cosφ =1.0 |
|
Voltage Regulator |
Capacitance |
|
Engine |
|
Engine model |
1E45F |
|
Type |
OHV 2-stroke, air cooled, single-cylinder |
|
Bore*stroke |
45mm*40mm |
|
Displacement(cc) |
63 |
|
Continuous output |
1.1kw/3000rpm |
|
Maximum output |
1.3kw/3000rpm |
|
Fuel tank capacity |
4L |
|
Fuel |
50: 1Gasoline and oil mixed |
|
Fuel consumption(g/kw/h) |
540 |
|
Starting system |
recoil |
|
Ignition model |
TCI |
|
Compression ratio |
7.4: 1 |
|
Noise level LwA dB(A) |
60/63 |
|
Dimension(L*W*H)mm |
375X325X325 |
|
Net weight(kg) |
20 |
|
Gross weight(kw) |
21 |
|
20FT container QTY(PCS) |
750 |
ZheJiang ZheTai Power Supply Co., Ltd. Established in 2003, It covers an area of 50, 00 square meters with a work-shop of 1 000 square meters and fixed assets of over 5 million yuan. Now the company has about 100 employees, among whom over 10 are technicians and engineers. Which is specialized in producing series of gasoline generators, diesel generarors, gasoline engine, water pump and parts of generators. Having an abounding experiences in this line, we are dedicated to research and develop our products.
Our company has passed the 3C National Compellent Product Certificate, the ISO9001/2000 Quality Management Certificate, CE Certificate and GS Ceritificate. Owning anvanced technology and We hold the import and export right, owing the capacity of producing 20, 000 sets per month of several kinds of universal machines. Since its foundation, ZheTai has manufactured power products worldwide, the products are mainly export to European Union, Middle East, Africa, South & East Asian countries and regions.
Our company believes that "preciseness, sincerity, Development and Service" is the foundation of us, and we insists the "Quality first, aiming precision, constant improving and customer's satisfaction" as our quality principle. We would like to cooperate with friends from worldwide to develop our splendid future. Your OEM business is also welcome!
