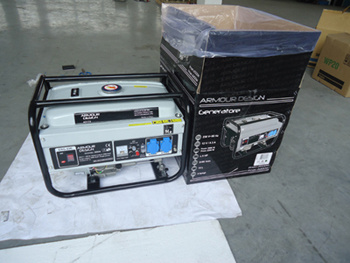

Gasoline generator
Engine Model: 168F
Model: 5.5HP
Engine Type: Air-cooled; 4-stroke; OHV, single cylinder
Igniting System: Transistor magneto
Starting System: Recoil / Electric
Displacement: 163CC
Engine Max. Output: 4.1kw
Engine Fuel tank capacity: 15L
Engine Continuous operating time: 12h
Min. Fuel Consumption: 360g/kw. H
Noise level: 65dB
Lube. Oil capacity: 0.6L
Generator A. C. Frequency: 50 / 60Hz
Generator Rated Voltage: 110 / 220V
Generator Max. A. C. Outpu: 2.2kw
Generator Rated. A. C. Output: 2kw.
|
Model |
|
2500 |
3600 |
3800 |
|
Engine |
Engine Model |
168F |
168F -1 |
170F |
|
Model |
5.5HP |
6.5HP |
7.0HP |
|
Engine Type |
(Air-cooled; 4-stroke; OHV, single cylinder) |
|
igniting System |
Transistor magneto |
|
Starting System |
Recoil / Electric |
|
Displacement |
163cc |
196cc |
210cc |
|
Max. Output |
4.1kw |
4.8kw |
5.1kw |
|
Fuel tank capacity |
15L |
15L |
15L |
|
Continuous operating time |
12h |
12h |
10h |
|
Min. Fuel Consumption |
360g /kw. h |
360g /kw. h |
360g /kw. h |
|
Noise level |
65dB |
67dB |
69dB |
|
Lube. oil capacity |
0.6L |
0.6L |
0.6L |
|
Generator |
A. C. frequency |
50 / 60HZ |
|
Rated Voltage |
110 / 220V |
|
Max. A. C. output |
2.2kw |
2.8kw |
3.0kw |
|
Rated. A. C. output |
2kw |
2.5kw |
2.8kw |
|
Size & Weight |
Dimension(LxWxH) |
610x445x440mm |
610x445x440mm |
605x445x450mm |
|
Net weight |
40kg |
43kg |
45kg |
ZheJiang ZheTai Power Supply Co., Ltd. Established in 2003, It covers an area of 50, 00 square meters with a work-shop of 1 000 square meters and fixed assets of over 5 million yuan. Now the company has about 100 employees, among whom over 10 are technicians and engineers. Which is specialized in producing series of gasoline generators, diesel generarors, gasoline engine, water pump and parts of generators. Having an abounding experiences in this line, we are dedicated to research and develop our products.
Our company has passed the 3C National Compellent Product Certificate, the ISO9001/2000 Quality Management Certificate, CE Certificate and GS Ceritificate. Owning anvanced technology and We hold the import and export right, owing the capacity of producing 20, 000 sets per month of several kinds of universal machines. Since its foundation, ZheTai has manufactured power products worldwide, the products are mainly export to European Union, Middle East, Africa, South & East Asian countries and regions.
Our company believes that "preciseness, sincerity, Development and Service" is the foundation of us, and we insists the "Quality first, aiming precision, constant improving and customer's satisfaction" as our quality principle. We would like to cooperate with friends from worldwide to develop our splendid future. Your OEM business is also welcome!
