Our company supply high quality: Grid tie inverter, Grid-connected inverter, Solar Power inverter, On grid inverter, PV Solar inverter, Solar on grid inverter, Wind on grid inverter, PV power inverter, Hybrid inverter. And high efficiency: Grid tie inverter, Grid-connected inverter, Power inverter, On grid inverter, Solar inverter, Solar on grid inverter, Wind on grid inverter, PV inverter, Hybrid inverter And low price: Grid tie inverter, Grid-connected inverter, Power inverter, On grid inverter, Solar inverter, Solar on grid inverter, Wind on grid inverter, PV inverter, Hybrid inverter. And can tie to the grid through its output cable with no extra equipment.
1. Using the fifth generation lntelligent power module from mitsubishi, improve the system efficiency
2. High conversion efficiency
3. Advanced technology for maximum power point tracking (MPPT)
4. MPPT efficiency (>97%)
5. Wide input voltage range
6. High reliability due to perfect protection function
7. Powerful communication interfaces
8. Easy operation and installation
9. Easy-to-set multilingual LCD display
10. Adjustable protection/operation parameters.
Have passed CE, ISO9001, G83, G59, AS3100, AS4777 certificates
|
Model |

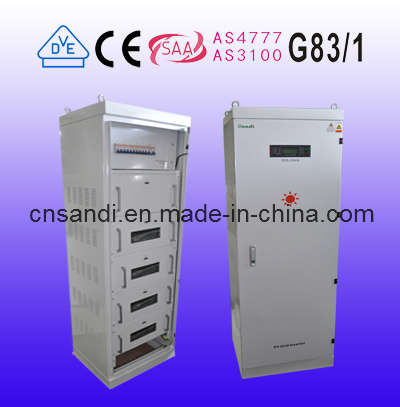

SDS- 20KW |
|
Isolation type |
Transformerless |
DC Input |
MPPT Voltage Range |
DC100-500V |
|
Rated DC Voltage |
200-400V |
|
Control System |
MPPT |
AC Output |
Output Power |
20KW |
|
Rate voltage |
AC380V |
|
voltage range |
AC 342- 418 V |
|
Normal Grid Frequency |
50/60Hz Grid frequency |
|
Night-time consumption |
<0.25W |
|
Phases |
3 phase 4 wire |
|
Power Factor |
0.95 |
|
Current THD |
At rated power and in the sine wave <5% |
|
Control System |
PWM |
|
Anti-islanding |
≤0.5 sec |
|
Output Overload |
100% |
|
Max. Efficiency |
98% |
|
Euro Efficiency |
97% |
Structure |
Protection Class |
IP20 |
|
Cooling system |
Natural cooling |
|
Noise |
60dB |
|
Data Interfaces |
External RS232C/RS485 |
|
Web Module( Option) |
RS232C to TCP/IP |
|
Display |
LCD |
|
Dimensions(W*H*D) |
550*1300*700mm |
|
Weight |
200kgs |
Protection |
Inverter |
Input overvoltage, output short circuit, overheat, output DC component. |
|
Grid |
Anti-islanding, over/under voltage of grid, over/under frequency of grid. |
Environment |
Environment |
No corrosion gas, flammable gas, oil mist, dust etc. |
|
Operation temperature |
-10-40 |
|
Stored temperature |
-20-65 |
|
Relative humidity |
0-100% (Do not wet with dew) |
|
CE-Standards Complied |
CE-Standards Complied: EN61000-6-2, EN61000-6-4(EMC), EN61558-1, EN61558-2-17,
EN50178, EN61000-1, |
|
Certifications |
CE, VDE0126-1, AS4777, AS3100, G83/1, ISO9001 |
