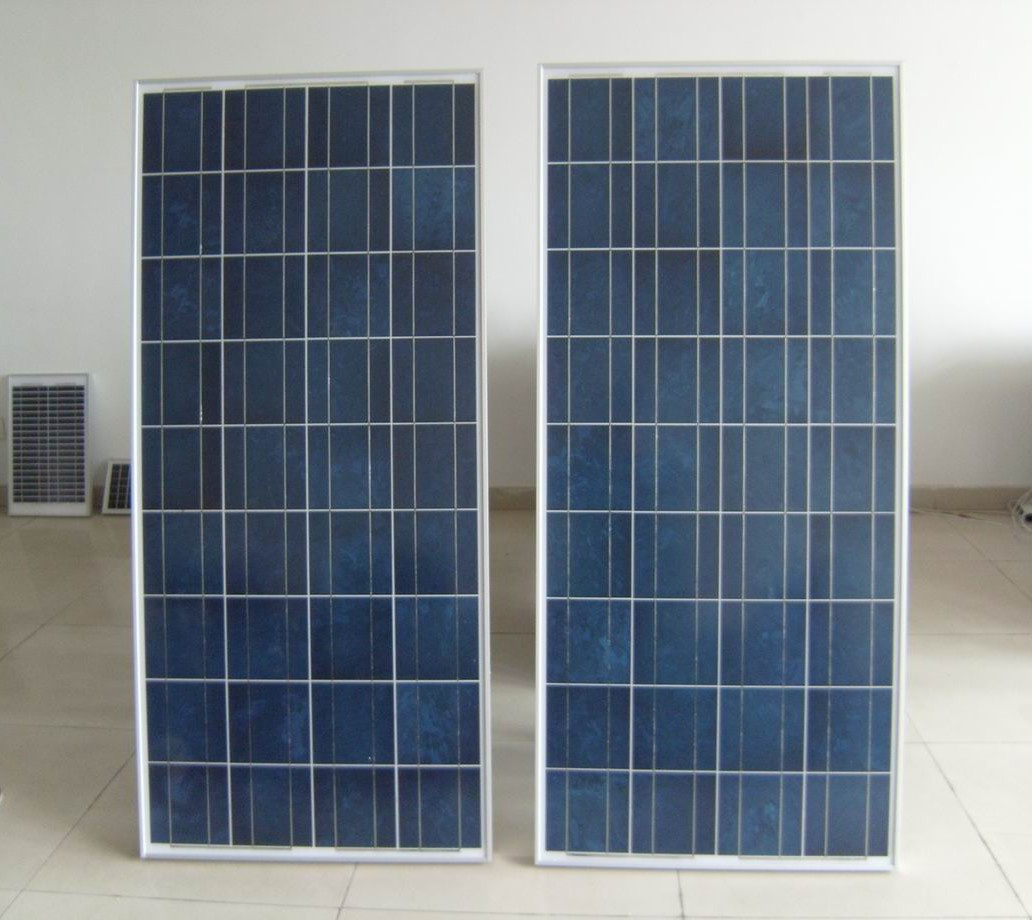

Solar module, solar panel
High dfficiency
Nominal 24V DC for standard output
Outstanding low-light performance
Unique techniques give the panel following features:
Esthetic appearance, with stands high wind-pressure
And snow load, and easy installation
Unique technology ensure that problems of water
Freezing and warping do not occur
Design to meet unique demand of customer
High quality poly solar panel
Solar Panel Weight: 1.8KGs
Size: 351*291*17mm
IEC62321, EMC;
CE and RoHS Certificat
25 year module output warranty.
|
Model No. /Size |
Maximum Power |
Open circuit current |
Short circuit current |
Maximum Voltage |
Maximum current |
Weight |
|
SWP200(1466*996*50mm) |
200 |
32.73 |
8.24 |
26.7 |
7.5 |
17.5 |
|
SWP210(1786*996*50mm) |
210 |
39 |
7.45 |
31.6 |
6.65 |
21 |
|
SWP220(1786*996*50mm) |
220 |
39.3 |
7.64 |
31.8 |
6.92 |
21 |
|
SWP230(1786*996*50mm) |
230 |
39.5 |
7.79 |
32 |
7.19 |
21 |
|
SWP240(1786*996*50mm) |
240 |
39.6 |
7.88 |
32.2 |
7.46 |
21 |
|
SWP200(1940*996*50mm) |
200 |
42.4 |
7.3 |
33.4 |
6 |
23 |
|
SWP210(1940*996*50mm) |
210 |
42.5 |
7.38 |
33.55 |
6.26 |
23 |
|
SWP220(1940*996*50mm) |
220 |
42.7 |
7.42 |
34 |
6.47 |
23 |
|
SWP230(1940*996*50mm) |
230 |
42.8 |
7.45 |
34.13 |
6.74 |
23 |
|
SWP240(1940*996*50mm) |
240 |
43.06 |
7.64 |
34.6 |
6.94 |
23 |
|
SWP250(1940*996*50mm) |
250 |
43.4 |
7.85 |
35.06 |
7.13 |
23 |
|
SWP260(1940*996*50mm) |
260 |
43.6 |
8.04 |
35.35 |
7.36 |
23 |
Qingdao AST Solar Technology Co., Ltd. was founded in 2003 and located in Qingdao city Shandong province.
Since 2003, Qingdao AST Solar Technology Co., Ltd. had been focusing on technical development and scientific management. It has a strong working team of research, production marketing and management. It has many professional employees in solar field. It has set up a professional research, manufacture base of solar panel, solar system, solar station and other solar products.
We have practical experience of nearly 10 years of photovoltaic product development process. We possess complete solar cell production technology from the solar cell, solar panel, solar system. Our independent research and development production of monocrystalline solar module has passed the Work Committee of CE&ROHS certification. Strong technical support, excellent quality & perfect service system laid its global sales network which will be accepted by domestic and foreign customers and recognition.
Qingdao AST Solar Technology Co., Ltd. exports its products to worldwide markets, such as UK, Germany, Spain, Italy, Australia, Canada, USA, Thailand, South Africa, etc.
With our products, let's create a green word and wonderful life together.
